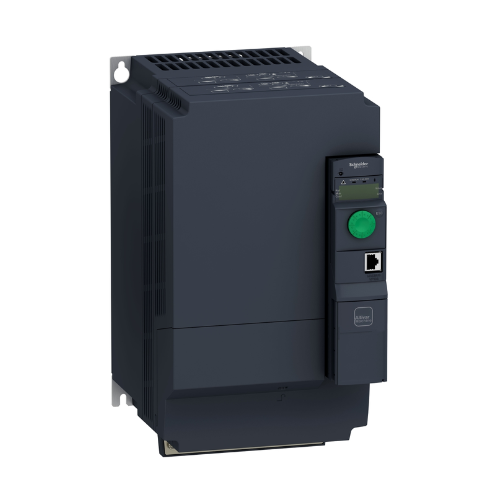

Schneider Electric ATV320D15N4B

SKU: ATV320D15N4B
Your Price:
$1,500.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV320D15N4B

Overview

The ATV320D15N4B is an 11 kW (15 HP) compact variable speed drive from Schneider Electric’s Altivar 320 series. With input at 380–480 V AC, it offers motor control in V/Hz, sensorless vector, and torque modes. It features integrated Safe Torque Off (STO) functionality and supports communications via Modbus RTU or optional network cards (EtherNet/IP, Profibus, CANopen). Perfect for industrial applications like conveyors, fans, and pumps.


Key Features

  • Power Rating: 11 kW (15 HP)

  • Voltage Input: 380–480 V AC, 50/60 Hz

  • Output Current: Approximately 20 A

  • Control Modes: V/Hz, sensorless vector, torque control

  • Integrated Safety: Safe Torque Off (STO)

  • Enclosure: IP20-rated for indoor installation

  • Communication: Modbus RTU/ASCII built-in; optional fieldbus modules

  • Design: Compact for space-constrained panels


Technical Specifications

  • Catalog Number: ATV320D15N4B

  • Frequency Range: 0.1 Hz to 400 Hz

  • Switching Frequency: Adjustable from 4 kHz (default) to 12 kHz

  • Operating Temperature: –10 °C to +50 °C (derates above 40 °C)

  • Storage Temperature: –40 °C to +85 °C

  • Vibration Tolerance: 3 gn; Shock Resistance: 15 gn

  • Cooling: Natural convection; optional forced-air kit available

  • Mounting: Panel or wall mount

  • Dimensions: Approx. 133 × 303 × 180 mm

  • Weight: Approx. 7.2 kg

  • Certifications: CE, UL, CSA, RoHS


Applications

  • Controlling pumps, fans, and compressor motors

  • Compact conveyors and material handling systems

  • HVAC systems and ventilation controls

  • Industrial automation and OEM equipment

  • Energy-efficient motor management for various machinery


Why Choose the ATV320D15N4B

  • High power in a small footprint

  • Built-in STO enhances operator and machine safety

  • Flexible communication with optional network cards

  • Easy commissioning and user-friendly interface

  • Reliable and certified for industrial environments


Order Now

The Schneider Electric ATV320D15N4B compact drive is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
