Schneider Electric ATV320D15N4C 15 kW 3-phase book format VFD Altivar 320

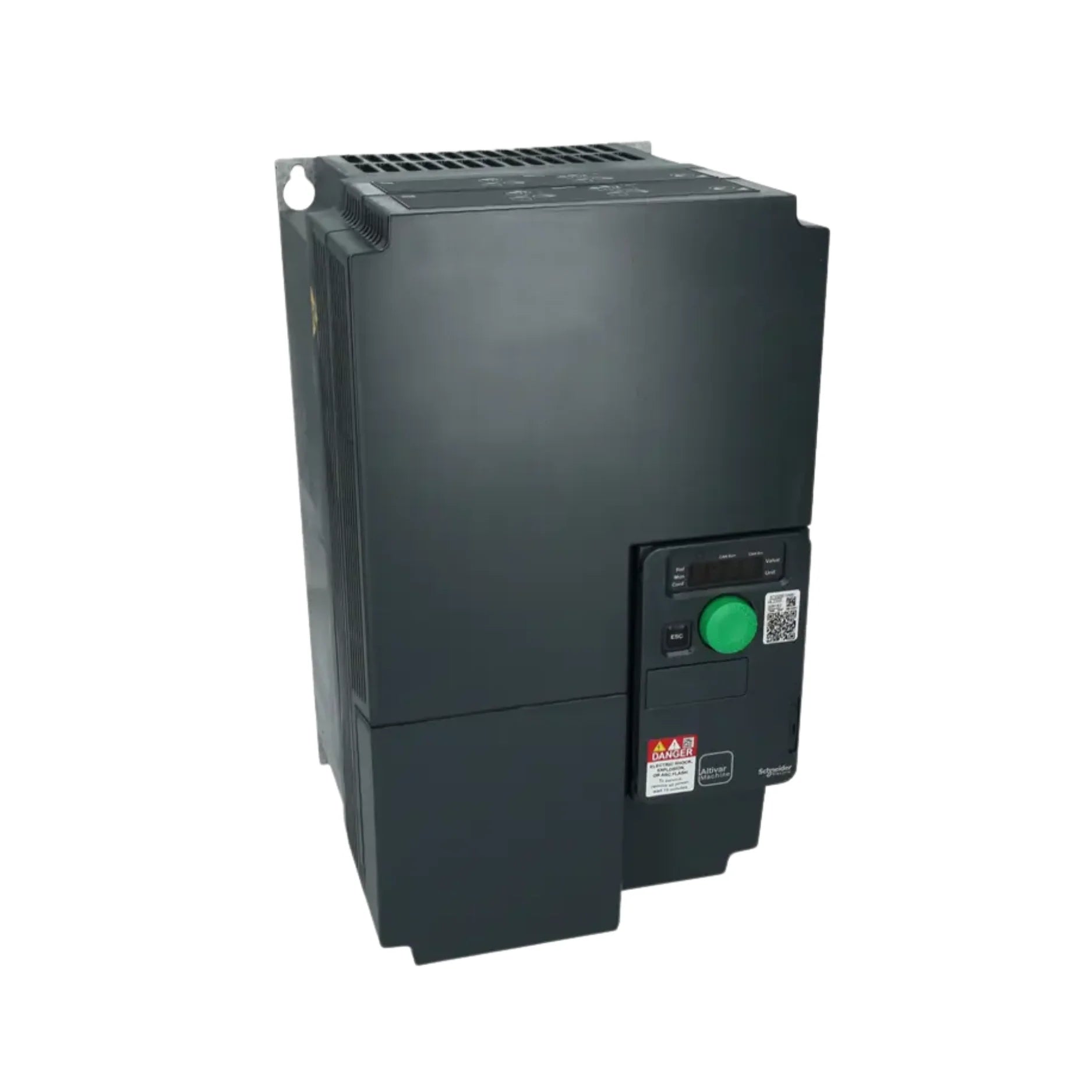

Schneider Electric ATV320D15N4C

SKU: ATV320D15N4C
Your Price:
$1,500.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV320D15N4C

Overview

The Schneider Electric ATV320D15N4C is a 15 kW (20 HP) variable frequency drive (VFD) from the Altivar Machine ATV320 series, designed for 3-phase motor control in industrial automation systems. Its book format and IP20 rating make it ideal for compact installations inside control cabinets.

Key Features

  • Power Rating: 15 kW (20 HP)

  • Input Voltage: 3-phase 380–500 V AC

  • Output Voltage: 0–500 V AC, 3-phase

  • Frequency Range: 0.1 to 599 Hz

  • Control Modes: V/F, sensorless vector, field-oriented control

  • Integrated Functions:

    • Brake control

    • Motor thermal protection

    • Logic functions and timers

  • Format: Book (narrow width for side-by-side mounting)

  • Protection Rating: IP20

  • Cooling: Fan-cooled with integrated heatsink

Technical Specifications

  • Part Number: ATV320D15N4C

  • Output Current: 31.3 A

  • Overload Capacity: 150% for 60 seconds

  • Switching Frequency: Adjustable up to 16 kHz

  • Communication Ports: Modbus RTU and CANopen (embedded)

  • Optional Communication Cards: Ethernet/IP, Profibus, Profinet, etc.

  • Ambient Temperature: –10 °C to +50 °C (without derating)

  • Mounting: DIN rail or panel

  • Dimensions: Approx. 180 × 105 × 260 mm

  • Weight: Approx. 4.2 kg

  • Certifications: CE, UL, CSA, EAC

Applications

  • Conveyors and packaging lines

  • Pumps and compressors

  • Material handling equipment

  • Machine tools and textile machinery

  • OEM systems and control cabinets

Why Choose the ATV320D15N4C

  • Compact Installation: Book format saves space in enclosures

  • Advanced Control: Supports multiple motor control strategies

  • Flexible Connectivity: Embedded protocols with optional expansions

  • Energy Efficiency: Integrated energy monitoring features

Order Now

Available for global shipment. The Schneider Electric ATV320D15N4C delivers compact, high-performance motor control for demanding industrial applications.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
