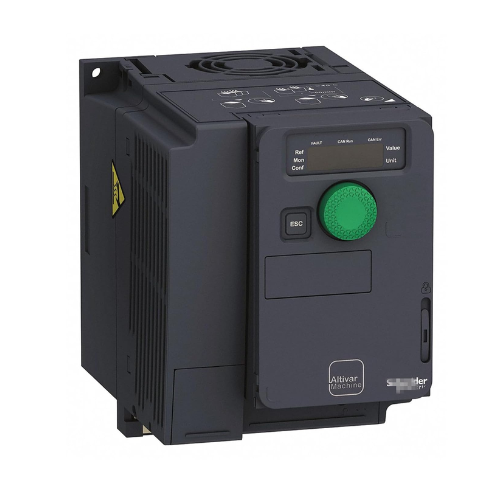

Schneider Electric ATV320U11N4C

SKU: ATV320U11N4C
Your Price:
$430.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV320U11N4C

Overview

The Schneider Electric ATV320U11N4C is a compact variable frequency drive (VFD) from the Altivar 320 series, engineered for simple and high-performance motor control. Rated at 1.1 kW (1.5 HP), it operates on a three-phase 380–500 V supply and comes in a rugged IP66 enclosure, making it ideal for harsh environments that require wall-mount installation and dust or water protection.


Key Features

  • Power Rating: 1.1 kW / 1.5 HP

  • Input Voltage: 380–500 V AC, three-phase

  • Output Frequency: 0.1 to 599 Hz

  • Control Modes:

    • V/Hz control

    • Sensorless flux vector control

  • Integrated Functions:

    • Safe Torque Off (STO)

    • Modbus and CANopen communication

  • Enclosure Type: IP66 (wall-mountable, dust and water protection)

  • EMC Filter: Built-in, Category C2

  • Cooling Method: Integrated heatsink with natural convection


Technical Specifications

  • Catalog Number: ATV320U11N4C

  • Nominal Output Current: 3.4 A

  • Switching Frequency: Adjustable 2–16 kHz

  • Motor Compatibility: Asynchronous and synchronous motors

  • Mounting Method: Wall-mount (vertical only)

  • Ambient Temperature Range: -10°C to +50°C (without derating)

  • Dimensions:

    • Width: 180 mm

    • Height: 233 mm

    • Depth: 172 mm

  • Weight: Approx. 3.8 kg

  • Certifications: CE, UL, CSA, EAC


Applications

  • Food and beverage processing

  • Conveyor and sorting systems

  • Packaging machinery

  • Pump and fan control

  • OEM machines operating in harsh environments

  • Outdoor and washdown areas


Why Choose the ATV320U11N4C

  • IP66 Protection: Designed for dusty or wet environments

  • Compact & Robust: Small footprint with industrial-grade durability

  • Versatile Control: Handles a variety of motor types and control modes

  • Built-In Communication: Modbus and CANopen for easy integration

  • Safe Operation: Includes STO safety function for machine protection


Order Now

The Schneider Electric ATV320U11N4C Altivar 320 drive is available and ships worldwide.
