Schneider Electric ATV320U75N4C

Overview

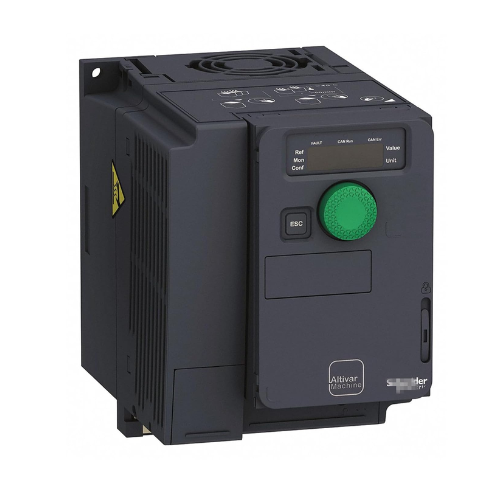

The Schneider Electric ATV320U75N4C is a high-performance variable frequency drive (VFD) from the Altivar 320 series, offering 7.5 kW (10 HP) motor control for three-phase 380–500 V systems. Featuring a compact “book” format and IP20 protection, this drive provides reliable, space-saving integration into control panels, delivering precise control and robust functionality.


Key Features

  • Power Rating: 7.5 kW / 10 HP

  • Input Voltage: 380–500 V AC, three-phase

  • Frequency Range: 0.1 to 599 Hz

  • Control Modes:

    • V/Hz (volts/hertz)

    • Sensorless flux vector control

  • Built-in Functions: Safe Torque Off (STO)

  • Communications: Modbus RTU standard; expandable to CANopen

  • Enclosure Type: IP20, book-form compact housing

  • Cooling: Integrated fan for temperature control


Technical Specifications

  • Catalog Number: ATV320U75N4C

  • Nominal Output Current: ~20 A

  • Switching Frequency: Adjustable from 2 to 16 kHz

  • Motor Types Supported: Asynchronous and synchronous

  • Mounting Options: Vertical panel or DIN‑rail

  • Ambient Temperature Range: –10 °C to +50 °C (without derating)

  • Dimensions:

    • Width: ~130 mm

    • Height: ~260 mm

    • Depth: ~154.5 mm

  • Weight: Approx. 6.5 kg

  • Certifications: CE, UL, CSA, EAC


Applications

  • Industrial pumps and fans

  • Conveyors and material handling systems

  • HVAC system motor control

  • OEM machinery with medium-power drives

  • General-purpose automation requiring precise VFD performance


Why Choose the ATV320U75N4C

  • Compact Efficiency: Space-saving book format ideal for control panels

  • Precise Motor Control: Offers both V/Hz and sensorless vector modes

  • Safety Built-In: Includes STO for compliance and machine protection

  • Modular Connectivity: Modbus RTU standard, with options for CANopen

  • Durable Design: IP20 enclosure and internal cooling ensure reliability


Order Now

The Schneider Electric ATV320U75N4C Altivar 320 VFD is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Schneider Electric ATV320U75N4C

Overview

The Schneider Electric ATV320U75N4C is a high-performance variable frequency drive (VFD) from the Altivar 320 series, offering 7.5 kW (10 HP) motor control for three-phase 380–500 V systems. Featuring a compact “book” format and IP20 protection, this drive provides reliable, space-saving integration into control panels, delivering precise control and robust functionality.


Key Features

  • Power Rating: 7.5 kW / 10 HP

  • Input Voltage: 380–500 V AC, three-phase

  • Frequency Range: 0.1 to 599 Hz

  • Control Modes:

    • V/Hz (volts/hertz)

    • Sensorless flux vector control

  • Built-in Functions: Safe Torque Off (STO)

  • Communications: Modbus RTU standard; expandable to CANopen

  • Enclosure Type: IP20, book-form compact housing

  • Cooling: Integrated fan for temperature control


Technical Specifications

  • Catalog Number: ATV320U75N4C

  • Nominal Output Current: ~20 A

  • Switching Frequency: Adjustable from 2 to 16 kHz

  • Motor Types Supported: Asynchronous and synchronous

  • Mounting Options: Vertical panel or DIN‑rail

  • Ambient Temperature Range: –10 °C to +50 °C (without derating)

  • Dimensions:

    • Width: ~130 mm

    • Height: ~260 mm

    • Depth: ~154.5 mm

  • Weight: Approx. 6.5 kg

  • Certifications: CE, UL, CSA, EAC


Applications

  • Industrial pumps and fans

  • Conveyors and material handling systems

  • HVAC system motor control

  • OEM machinery with medium-power drives

  • General-purpose automation requiring precise VFD performance


Why Choose the ATV320U75N4C

  • Compact Efficiency: Space-saving book format ideal for control panels

  • Precise Motor Control: Offers both V/Hz and sensorless vector modes

  • Safety Built-In: Includes STO for compliance and machine protection

  • Modular Connectivity: Modbus RTU standard, with options for CANopen

  • Durable Design: IP20 enclosure and internal cooling ensure reliability


Order Now

The Schneider Electric ATV320U75N4C Altivar 320 VFD is available and ships worldwide.



Condition

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.

Warranty

1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.

Disclaimer

Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
