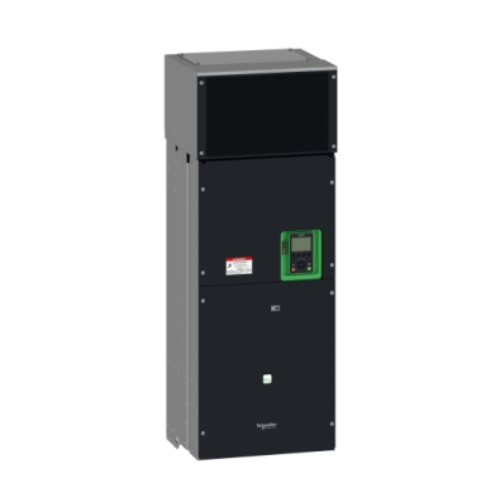

Schneider Electric ATV630C22N4
Overview
The Schneider Electric ATV630C22N4 is a variable speed drive from the Altivar Process 630 series, designed for demanding industrial environments. Rated at 22 kW (30 HP) and operating on a 380–480 V 3-phase power supply, it features a rugged IP55 enclosure for enhanced protection and is optimized for energy efficiency and process control.
Key Features
-
Series: Altivar Process ATV630
-
Power Rating: 22 kW / 30 HP
-
Input Voltage: 3-phase, 380–480 V ±10%
-
Enclosure Rating: IP55 (dust and water jet protection)
-
Control Modes: V/F, sensorless vector, flux vector with encoder
-
Display Interface: Integrated graphical keypad
-
Communication Protocols: Modbus TCP, Ethernet/IP, CANopen
-
Energy Monitoring: Built-in tools for real-time energy tracking
-
Motor Compatibility: Asynchronous and permanent magnet motors
Technical Specifications
-
Model Number: ATV630C22N4
-
Output Current: 45.6 A
-
Frequency Range: 0.1 to 599 Hz
-
Overload Capacity: 120% for 60 s
-
Switching Frequency: Adjustable up to 16 kHz
-
Cooling Method: Enclosed fan-cooled
-
Dimensions (H×W×D): Approx. 675 × 335 × 280 mm
-
Weight: ~36 kg
-
Operating Temperature: –15 °C to 50 °C
-
Certifications: CE, UL, CSA, EAC
Applications
-
Outdoor and washdown environments
-
Water and wastewater facilities
-
Mining, oil, and gas applications
-
Conveyors, mixers, and crushers
-
Industrial process automation in harsh conditions
Why Choose the ATV630C22N4
-
Rugged Design: IP55 enclosure for dust and water resistance
-
Energy Efficient: Advanced monitoring and process optimization
-
Reliable Operation: Built for 24/7 industrial workloads
-
Flexible Communication: Supports major industrial networks
-
User-Friendly: Easy configuration and diagnostics via keypad
Order Now
The Schneider Electric ATV630C22N4 is a robust and efficient drive built for performance in challenging environments. Available for global delivery.
