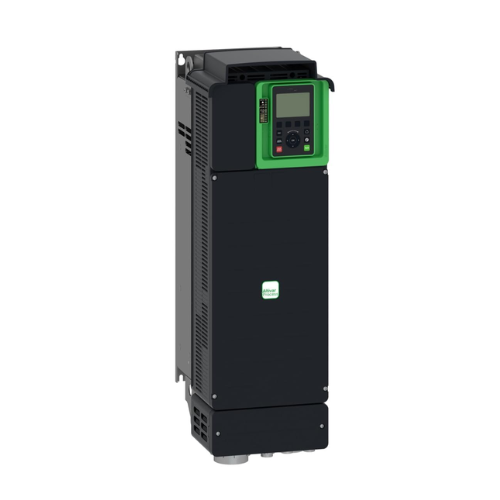

Schneider Electric ATV630D30N4

SKU: ATV630D30N4
Your Price:
$2,950.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV630D30N4

Overview

The ATV630D30N4 is a 30 kW / 40 HP variable speed drive from Schneider Electric's Altivar 630 series, engineered for energy-efficient motor control in fluid management applications. It supports both asynchronous and synchronous motors, offering robust performance, integrated safety functions, and advanced connectivity options for process optimization.


Key Features

  • Power Rating: 30 kW (normal duty), 22 kW (heavy duty)

  • Horsepower: 40 HP (normal), 30 HP (heavy)

  • Voltage Range: 380–480 V AC, 50/60 Hz

  • Output Current:

    • 61.5 A (normal duty)

    • 46.3 A (heavy duty)

  • Motor Compatibility: Asynchronous and synchronous motors

  • Control Modes: Sensorless, flux vector, and V/Hz control

  • Integrated EMC Filter: Category C3 compliance

  • Integrated Safety: Safe torque off (STO)


Technical Specifications

  • Catalog Number: ATV630D30N4

  • Frequency Range: 0.0001 to 599 Hz

  • Switching Frequency: Adjustable (default 4 kHz)

  • Degree of Protection: IP21 (UL Type 1)

  • Ambient Operating Temp: –15 °C to +50 °C (derating above 50 °C)

  • Cooling: Forced air

  • Installation: Wall mount

  • Dimensions (W × H × D): 226 × 673 × 271 mm

  • Weight: Approx. 28 kg

  • Communication Ports:

    • Modbus (embedded)

    • Ethernet, CANopen, and optional cards for Profibus, EtherNet/IP, etc.

  • Conformity: CE, UL, CSA, RoHS


Applications

  • Water and wastewater treatment

  • HVAC and building management systems

  • Pumps, fans, and compressors

  • Irrigation and fluid transfer systems

  • Industrial energy optimization solutions


Why Choose the ATV630D30N4

  • High Energy Efficiency: Built for optimizing pump and fan loads

  • Flexible Communication: Expandable protocol support

  • Compact & Durable: IP21 protection for industrial environments

  • Integrated Safety: STO for compliance with machinery safety standards

  • Smart Functions: Customizable logic, energy monitoring, and process tuning


Order Now

The Schneider Electric ATV630D30N4 is in stock and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
