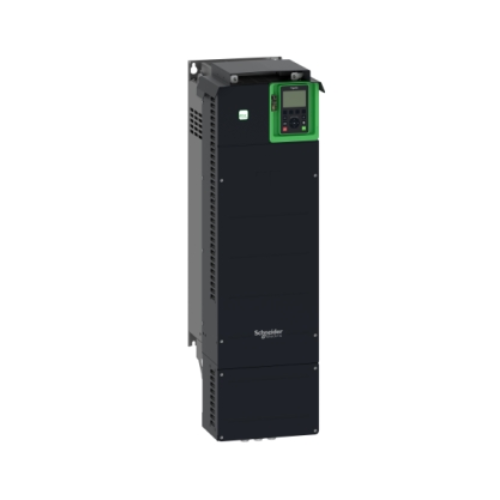

Schneider Electric ATV630D55N4
Overview
The Schneider Electric ATV630D55N4 is a high-performance variable speed drive from the Altivar Process 630 series, designed for process and energy management applications. Supporting motors up to 55 kW (75 HP) at 380–480 V, this drive offers advanced functionality, energy efficiency, and built-in communications for seamless integration into industrial systems.
Key Features
-
Series: Altivar Process ATV630
-
Power Rating: 55 kW / 75 HP
-
Input Voltage: 3-phase, 380–480 V AC ±10%
-
Enclosure Rating: IP21 (standard indoor mounting)
-
Control Modes: V/F, sensorless vector, and flux vector control
-
Integrated Display: Graphic keypad with navigation dial
-
Built-in Communications: Modbus, Ethernet, CANopen
-
Energy Monitoring: Built-in energy usage analysis
-
Motor Compatibility: Asynchronous and permanent magnet motors
Technical Specifications
-
Model Number: ATV630D55N4
-
Rated Output Current: 106 A
-
Output Frequency Range: 0.1 to 599 Hz
-
Switching Frequency: Adjustable up to 16 kHz
-
Overload Capacity: 120% for 60 s
-
Cooling Method: Internal fan
-
Dimensions (H×W×D): Approx. 890 × 350 × 265 mm
-
Weight: ~51 kg
-
Operating Temperature: –15 °C to 50 °C
-
Standards & Certifications: CE, UL, CSA, EAC
Applications
-
Water and wastewater treatment plants
-
HVAC systems in large facilities
-
Oil and gas operations
-
Food and beverage production
-
Conveyor systems, crushers, and mixers
Why Choose the ATV630D55N4
-
Optimized for Process Control: Built for performance and energy savings
-
Easy Integration: Multiple communication protocols onboard
-
Advanced Monitoring: Real-time energy tracking and diagnostics
-
Reliable Performance: Handles demanding industrial environments
-
Flexible Motor Support: Works with both asynchronous and PM motors
Order Now
The Schneider Electric ATV630D55N4 offers intelligent motor control and energy efficiency for demanding process applications. Available for global delivery.
