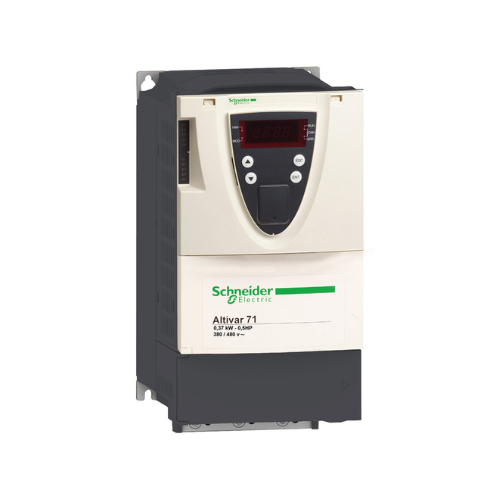

Schneider Electric ATV71HD15N4Z

SKU: ATV71HD15N4Z
Your Price:
$2,100.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV71HD15N4Z

Overview

The Schneider Electric ATV71HD15N4Z is a 15 kW (20 HP) variable frequency drive (VFD) from the Altivar 71 series, engineered for demanding motor control applications in industrial automation. It supports three-phase 380–480 V input, includes an integrated EMC filter, and provides IP20 protection. This model offers advanced motor control modes and flexible integration for high-performance systems.


Key Features

  • Power Rating: 15 kW / 20 HP

  • Input Voltage: 380–480 V AC, three-phase

  • Output Frequency: 0.1 to 599 Hz

  • Control Modes:

    • V/Hz control

    • Sensorless flux vector control

    • Flux vector control with encoder

  • Integrated EMC Filter: Class A

  • Communication Protocols: CANopen, Modbus RTU

  • Safety Function: Safe Torque Off (STO)

  • Enclosure Rating: IP20

  • Cooling Method: Integrated fan


Technical Specifications

  • Catalog Number: ATV71HD15N4Z

  • Output Current: 31 A

  • Apparent Power: 23 kVA

  • Switching Frequency: Adjustable from 1 to 16 kHz

  • Motor Cable Length:

    • Shielded: up to 50 m

    • Unshielded: up to 100 m

  • Ambient Temperature Range: -10°C to +50°C (without derating)

  • Mounting Type: Panel mount

  • Dimensions:

    • Width: 215 mm

    • Height: 370 mm

    • Depth: 232 mm

  • Weight: Approx. 11.2 kg

  • Certifications: CE, UL, CSA


Applications

  • Pumps and compressors

  • Conveyors and hoisting systems

  • Packaging and processing lines

  • HVAC and ventilation control

  • General automation for high-torque applications


Why Choose the ATV71HD15N4Z

  • Versatile Control: Supports a wide range of motor types and feedback modes

  • EMC Compliance: Built-in Class A filter reduces electromagnetic interference

  • Reliable and Compact: IP20-rated enclosure for panel installations

  • Flexible Communication: Built-in Modbus and CANopen protocols

  • Integrated Safety: STO function enhances system protection


Order Now

The Schneider Electric ATV71HD15N4Z Altivar 71 variable speed drive is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Schneider Electric ATV71HD15N4Z

Overview

The Schneider Electric ATV71HD15N4Z is a 15 kW (20 HP) variable frequency drive (VFD) from the Altivar 71 series, engineered for demanding motor control applications in industrial automation. It supports three-phase 380–480 V input, includes an integrated EMC filter, and provides IP20 protection. This model offers advanced motor control modes and flexible integration for high-performance systems.


Key Features

  • Power Rating: 15 kW / 20 HP

  • Input Voltage: 380–480 V AC, three-phase

  • Output Frequency: 0.1 to 599 Hz

  • Control Modes:

    • V/Hz control

    • Sensorless flux vector control

    • Flux vector control with encoder

  • Integrated EMC Filter: Class A

  • Communication Protocols: CANopen, Modbus RTU

  • Safety Function: Safe Torque Off (STO)

  • Enclosure Rating: IP20

  • Cooling Method: Integrated fan


Technical Specifications

  • Catalog Number: ATV71HD15N4Z

  • Output Current: 31 A

  • Apparent Power: 23 kVA

  • Switching Frequency: Adjustable from 1 to 16 kHz

  • Motor Cable Length:

    • Shielded: up to 50 m

    • Unshielded: up to 100 m

  • Ambient Temperature Range: -10°C to +50°C (without derating)

  • Mounting Type: Panel mount

  • Dimensions:

    • Width: 215 mm

    • Height: 370 mm

    • Depth: 232 mm

  • Weight: Approx. 11.2 kg

  • Certifications: CE, UL, CSA


Applications

  • Pumps and compressors

  • Conveyors and hoisting systems

  • Packaging and processing lines

  • HVAC and ventilation control

  • General automation for high-torque applications


Why Choose the ATV71HD15N4Z

  • Versatile Control: Supports a wide range of motor types and feedback modes

  • EMC Compliance: Built-in Class A filter reduces electromagnetic interference

  • Reliable and Compact: IP20-rated enclosure for panel installations

  • Flexible Communication: Built-in Modbus and CANopen protocols

  • Integrated Safety: STO function enhances system protection


Order Now

The Schneider Electric ATV71HD15N4Z Altivar 71 variable speed drive is available and ships worldwide.



Condition

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.

Warranty

1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.

Disclaimer

Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
