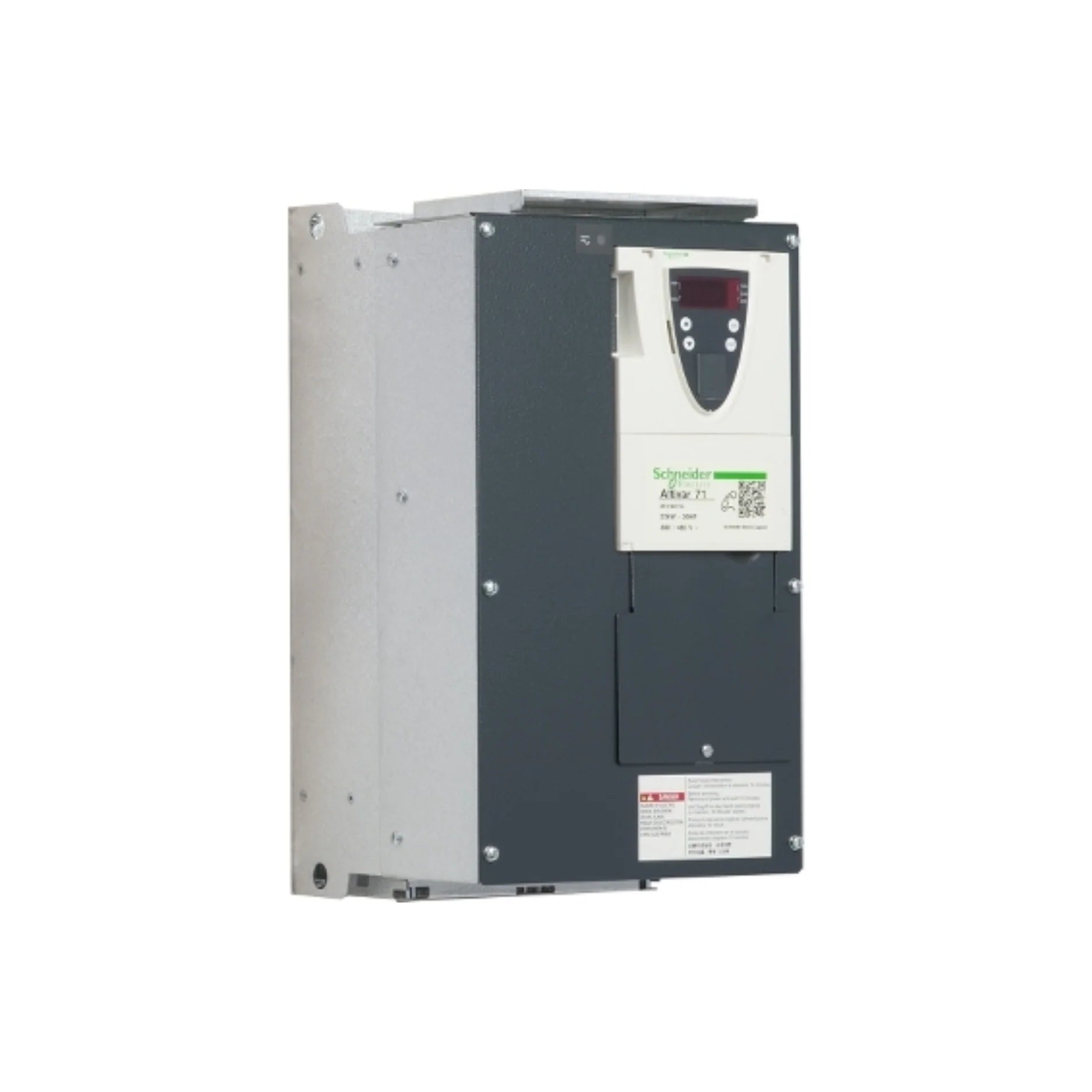

Schneider Electric ATV71HD22N4
Overview
The Schneider Electric ATV71HD22N4 is a high-performance variable speed drive from the Altivar 71 series, designed for demanding and complex industrial motor control applications. Supporting motors up to 22 kW (30 HP) with a 380–480 V 3-phase power supply, this drive offers advanced torque and speed control with built-in safety and communication options.
Key Features
-
Series: Altivar 71
-
Power Rating: 22 kW / 30 HP
-
Input Voltage: 3-phase, 380–480 V ±10%
-
Enclosure: IP20 (panel-mounted)
-
Control Modes: V/F, sensorless vector, field-oriented control with encoder
-
Safety Function: Safe Torque Off (STO) integrated
-
Communication Options: Modbus and CANopen (standard); optional Profibus, DeviceNet, Ethernet
-
User Interface: Optional graphical keypad or remote terminal
-
Motor Support: Asynchronous and permanent magnet motors
Technical Specifications
-
Model Number: ATV71HD22N4
-
Output Current: 45 A
-
Frequency Range: 0.1 to 500 Hz
-
Overload Capacity: 150% for 60 s, 170% for 2 s
-
Switching Frequency: Adjustable up to 16 kHz
-
Cooling Method: Integrated fan
-
Dimensions (H×W×D): Approx. 540 × 260 × 232 mm
-
Weight: ~29 kg
-
Operating Temperature: –10 °C to 50 °C
-
Certifications: CE, UL, CSA, EAC
Applications
-
Material handling systems and conveyors
-
Pumps, fans, and compressors
-
Hoists, cranes, and elevators
-
Extrusion and forming machines
-
OEM machinery requiring torque precision
Why Choose the ATV71HD22N4
-
Heavy-Duty Ready: Built for continuous operation in industrial environments
-
Precision Control: Advanced torque and speed regulation
-
Integrated Safety: STO function ensures compliance with safety standards
-
Flexible Networking: Easily integrates into industrial communication systems
-
Reliable and Proven: Designed for long-term durability and performance
Order Now
The Schneider Electric ATV71HD22N4 is a powerful and dependable drive for high-demand motor control applications across a range of industries. Available for global delivery.
