Schneider Electric ATV71HD37N4Z

Overview

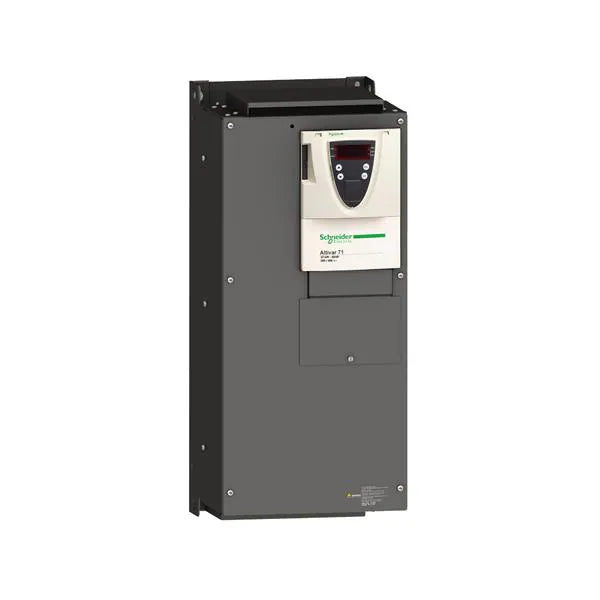

The Schneider Electric ATV71HD37N4Z is a high-performance variable speed drive from the Altivar 71 series, engineered for complex and heavy-duty industrial motor control. With support for 37 kW (50 HP) motors at 380–480 V 3-phase, it offers precise torque control, built-in safety, and advanced communication capabilities.


Key Features

  • Series: Altivar 71

  • Power Rating: 37 kW / 50 HP

  • Input Voltage: 3-phase, 380–480 V ±10%

  • Enclosure: IP20

  • Control Modes: V/F, sensorless flux vector, field-oriented control with encoder

  • Integrated Safety: Safe Torque Off (STO) function

  • Communication Options: Modbus, CANopen, optional Profibus, DeviceNet, Ethernet

  • Display: Optional remote keypad or graphical terminal

  • Applications: Demanding torque and speed control scenarios


Technical Specifications

  • Model Number: ATV71HD37N4Z

  • Output Current: 77 A

  • Frequency Range: 0.1 to 500 Hz

  • Overload Capacity: 150% for 60 s, 170% for 2 s

  • Switching Frequency: Adjustable up to 16 kHz

  • Cooling Method: Integrated fan

  • Dimensions (H×W×D): Approx. 700 × 310 × 265 mm

  • Weight: ~45 kg

  • Operating Temperature: –10 °C to 50 °C

  • Certifications: CE, UL, CSA, EAC


Applications

  • Hoists, cranes, and elevators

  • High-inertia machines

  • Extrusion and injection molding systems

  • Pumping and HVAC systems with torque demand

  • Industrial automation requiring precise speed control


Why Choose the ATV71HD37N4Z

  • Advanced Control: Handles complex torque and speed requirements

  • Heavy-Duty Rated: Designed for continuous operation in demanding conditions

  • Flexible Integration: Supports multiple communication protocols

  • Safety Features: Built-in STO function for machine protection

  • Field Proven: Reliable performance across industrial sectors


Order Now

The Schneider Electric ATV71HD37N4Z delivers powerful and flexible motor control for the most demanding industrial applications. Ready for worldwide delivery.
