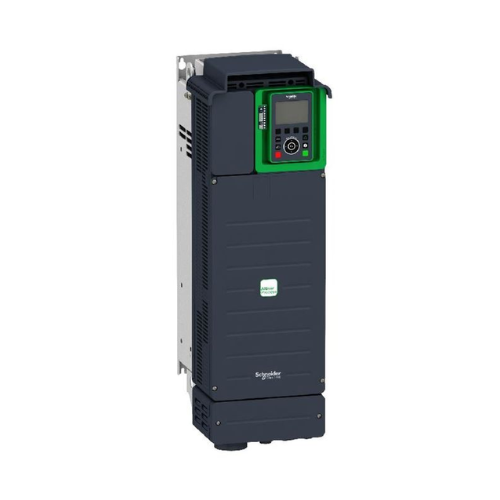

Schneider Electric ATV930D30N4
Overview
The Schneider Electric ATV930D30N4 is a high-performance variable frequency drive (VFD) from the Altivar Process ATV900 series, engineered for energy efficiency and advanced motor control. With a power rating of 30 kW (40 HP) and support for 380–480 V three-phase input, this IP21-rated drive is ideal for demanding industrial applications such as pumping, ventilation, and material handling systems.
Key Features
-
Power Rating: 30 kW / 40 HP
-
Input Voltage: 380–480 V AC, three-phase
-
Output Frequency: 0.1 to 599 Hz
-
Control Modes:
-
V/Hz
-
Sensorless vector control
-
Vector control with encoder
-
Synchronous motor control
-
-
Integrated Functions:
-
Energy monitoring and efficiency tools
-
Process automation logic
-
Safe Torque Off (STO)
-
-
Communication Protocols: Modbus TCP, Ethernet/IP, CANopen
-
Enclosure Type: IP21 (vertical mount)
-
Display: Graphical keypad with local/remote control
Technical Specifications
-
Catalog Number: ATV930D30N4
-
Nominal Output Current: 60.8 A
-
Switching Frequency: Adjustable up to 16 kHz
-
Motor Types Supported: Asynchronous and synchronous motors
-
Mounting Method: Vertical, panel mount
-
Ambient Temperature Range: -15°C to +50°C (without derating)
-
Cooling Method: Integrated forced air
-
Dimensions:
-
Width: 220 mm
-
Height: 525 mm
-
Depth: 232 mm
-
-
Weight: Approx. 22 kg
-
Certifications: CE, UL, CSA, EAC
Applications
-
Water and wastewater management
-
Oil and gas pumping systems
-
HVAC for large buildings
-
Material conveying and lifting
-
Industrial processes requiring precise control
Why Choose the ATV930D30N4
-
Process Optimization: Built-in tools for monitoring and efficiency
-
Advanced Control: Handles a wide range of motors and applications
-
Flexible Communication: Supports multiple industrial protocols
-
Durable Construction: IP21 protection with integrated cooling
-
Safe Operation: STO and integrated automation features enhance reliability
Order Now
The Schneider Electric ATV930D30N4 Altivar Process drive is available and ships worldwide.
