Allen-Bradley 2711P-T12C4A8
Overview

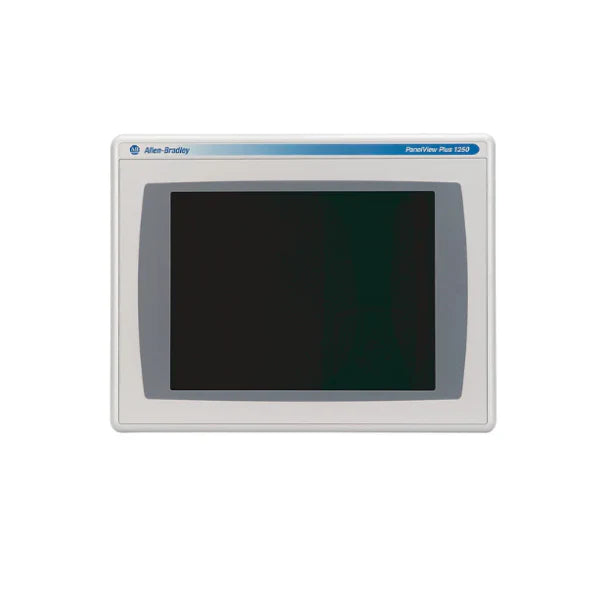

The Allen-Bradley 2711P-T12C4A8 is a PanelView Plus 6 1250 operator interface terminal with a 12.1-inch color touchscreen. Designed for industrial HMI applications, it includes 512MB RAM, 512MB non-volatile storage, Ethernet and RS-232 ports, and runs on 100–240V AC power. This terminal supports FactoryTalk View Machine Edition (ME) runtime, and operates on a Windows CE platform for enhanced functionality and flexibility.
Key Features
-
Display: 12.1 in color TFT touchscreen
-
Resolution: 800 x 600 (SVGA)
-
Power Supply: 100–240V AC
-
Processor: 1 GHz
-
Memory:
-
512MB RAM
-
512MB non-volatile storage
-
-
Operating System: Windows CE
-
Communication Ports:
-
1 × Ethernet
-
1 × RS-232
-
2 × USB
-
-
NEMA 4X/12, IP66 rated front bezel
-
FactoryTalk View ME software support
-
Built-in real-time clock
-
Panel-mount installation
Technical Specifications
-
Catalog Number: 2711P-T12C4A8
-
Series: PanelView Plus 6
-
Input Voltage: 100–240V AC
-
Display Size: 12.1 in (diagonal)
-
Resolution: 800 × 600 pixels
-
Communication: Ethernet, RS-232, USB
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
-
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
-
Dimensions (H x W x D): Approx. 10.47 x 13.70 x 2.20 in (266 x 348 x 56 mm)
-
Weight: Approx. 6.6 lbs (3 kg)
-
Certifications: UL, CE, CSA, RoHS
Applications
-
Machine control panels
-
SCADA and HMI visualization
-
Process monitoring
-
Packaging and manufacturing automation
-
Operator interface terminals for PLC systems
Why Choose the 2711P-T12C4A8
-
Large and bright 12.1" touchscreen display
-
Dual communication ports for flexible integration
-
Designed for high-performance HMI applications
-
Supports FactoryTalk ME for consistent project development
Order Now
The Allen-Bradley 2711P-T12C4A8 HMI terminal is in stock and ships worldwide.
