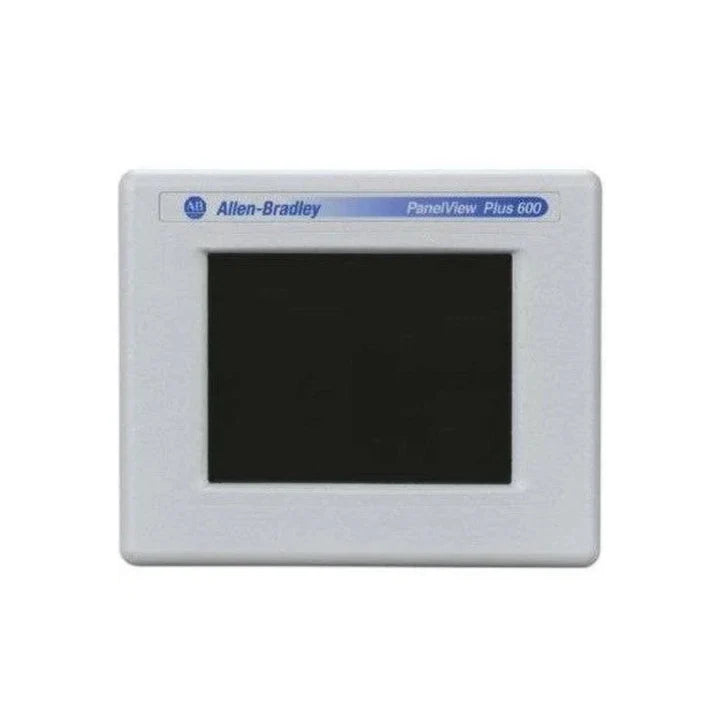

Allen-Bradley 2711P-T6C5D
Overview
The Allen-Bradley 2711P-T6C5D is a compact Human-Machine Interface (HMI) from the PanelView Plus 600 series. It features a 5.7-inch color touchscreen, runs on 24V DC power, and offers Ethernet and RS-232 communication. Ideal for small- to medium-scale automation systems, this HMI provides real-time visualization and control using FactoryTalk View ME applications, with a durable design suited for industrial environments.
Key Features
-
5.7 in color TFT touchscreen display
-
Resolution: 320 x 240 (QVGA)
-
DC powered (24V DC)
-
Communications:
-
Ethernet port (RJ-45)
-
RS-232 serial port (DF1 protocol support)
-
-
FactoryTalk View ME runtime support
-
Operating System: Windows CE
-
Panel mount with NEMA 4X, 12 rated front bezel
-
Flash memory and RAM integrated into logic module
-
Compact, lightweight design
Technical Specifications
-
Catalog Number: 2711P-T6C5D
-
Display: 5.7 in color TFT, resistive touchscreen
-
Resolution: 320 x 240 pixels
-
Power Supply: 18–32V DC (nominal 24V DC)
-
Memory: 64MB RAM, 64MB flash (expandable)
-
Communication Ports: 1 Ethernet, 1 RS-232, 1 USB (device)
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
-
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
-
Mounting: Panel mount
-
Dimensions (H x W x D): Approx. 6.58 x 8.95 x 2.14 in (167 x 227 x 54 mm)
-
Weight: Approx. 3.1 lbs (1.4 kg)
-
Certifications: UL, cUL, CE, RoHS
Applications
-
Small machine HMI interfaces
-
OEM control panels
-
Factory-floor visualization
-
Industrial data entry and monitoring
-
Legacy PLC interfacing via RS-232
Why Choose the 2711P-T6C5D
-
Compact, cost-effective HMI solution
-
Dual communication ports for integration flexibility
-
Supports FactoryTalk View ME for consistent development
-
Proven reliability in industrial settings
Order Now
The Allen-Bradley 2711P-T6C5D HMI terminal is available and ready for shipment.
