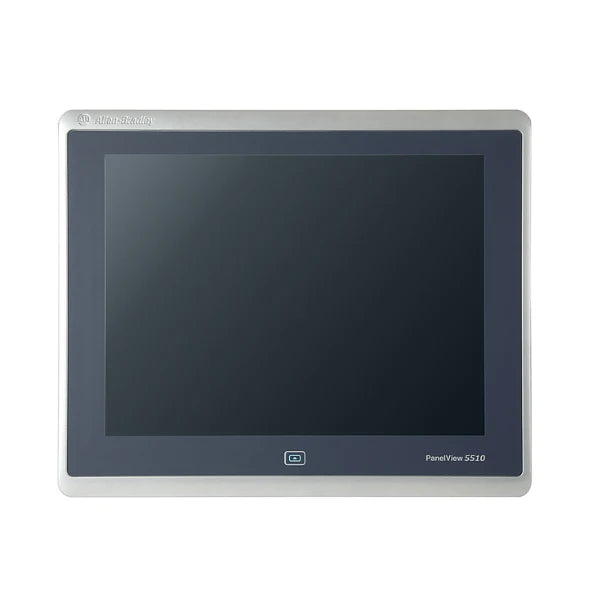

Allen-Bradley 2715P-T15CD
Overview
The Allen-Bradley 2715P-T15CD is a high-resolution HMI from the PanelView 5510 series, designed for advanced machine visualization and operator control. Featuring a 15.6-inch capacitive touchscreen with full HD (1920 x 1080) resolution, it offers enhanced display clarity and responsive multi-touch input. Powered by 24V DC, this unit supports Ethernet and USB connectivity and is optimized for use with Logix controllers and FactoryTalk View ME software.
Key Features
-
Display Size: 15.6" widescreen
-
Resolution: 1920 × 1080 (Full HD)
-
Touchscreen: Capacitive, multi-touch
-
Power Supply: 24V DC
-
Ports:
-
2 x USB (1 host, 1 device)
-
2 x Ethernet (10/100/1000 Mbps)
-
-
Operating System: FactoryTalk View ME Station
-
Mounting: Panel mount with gasket seal
-
Front Panel Rating: IP66 / NEMA 4X
-
Integrated real-time diagnostics and alarming
-
Designed for Studio 5000 environment
Technical Specifications
-
Catalog Number: 2715P-T15CD
-
Input Voltage: 18–30V DC
-
RAM/Storage: 512MB RAM / 512MB flash memory
-
Display Type: TFT active matrix
-
Operating Temp: 0 to 55 °C (32 to 131 °F)
-
Mounting Dimensions (HxWxD): Approx. 11.3 x 16.9 x 2.4 in
-
Certifications: UL, CE, CSA, RoHS
Applications
-
Advanced machine HMI interfaces
-
Real-time production monitoring
-
Packaging, bottling, and assembly lines
-
Food & beverage, pharma, and OEM automation
-
FactoryTalk View ME-based systems
Why Choose the 2715P-T15CD?
-
Full HD resolution with capacitive touch for superior usability
-
Modern HMI design with multi-touch gesture support
-
Seamless integration with Logix controllers via FactoryTalk
-
High-speed Ethernet for rapid communication
-
IP66-rated for tough industrial environments
Order Now
The Allen-Bradley 2715P-T15CD HMI is in stock and ready to ship.
