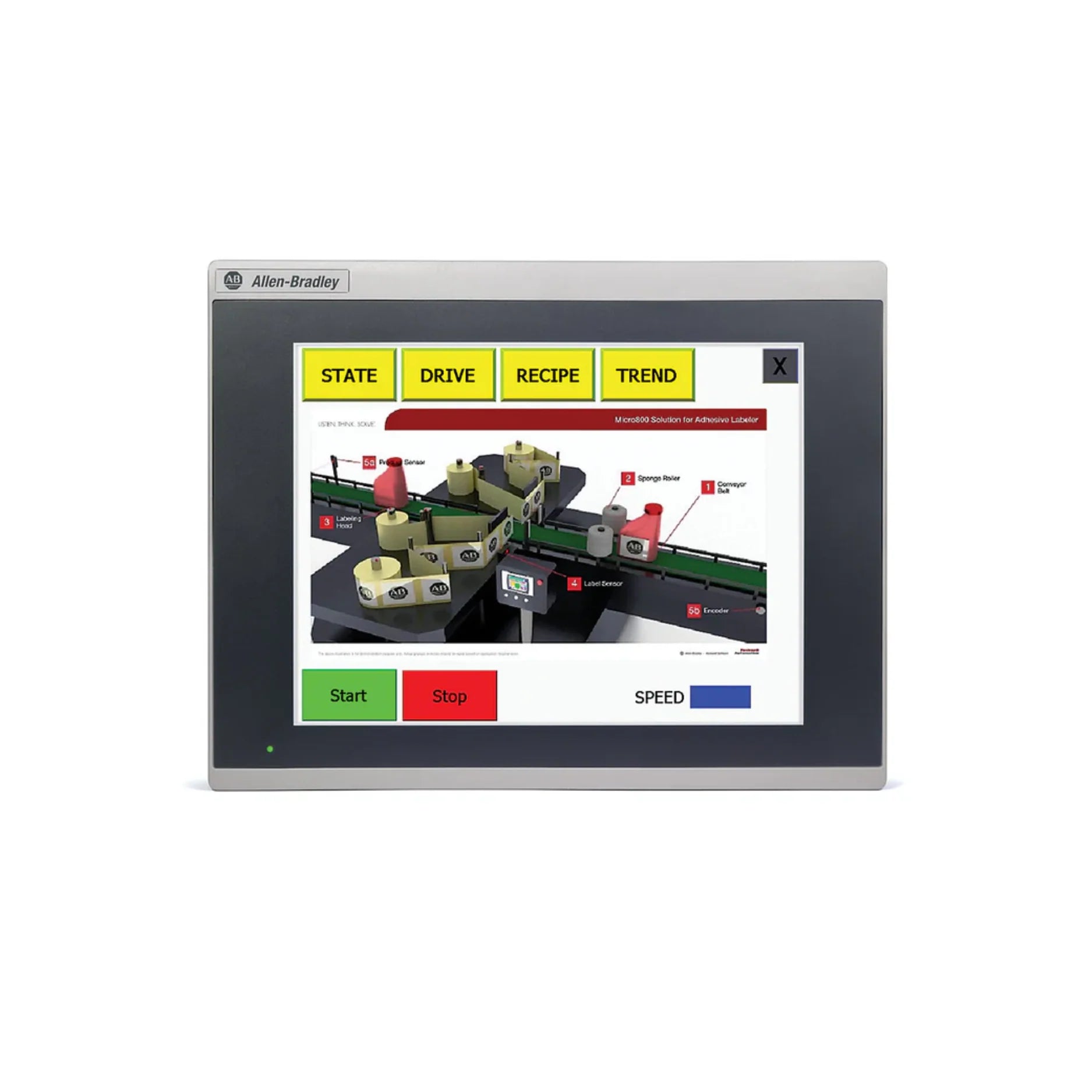

Allen-Bradley 2711R-T10T | High-Performance HMI for Industrial Applications

Overview

The Allen-Bradley 2711R-T10T is a 10.4-inch PanelView 800 graphic terminal designed for effective operator interface in industrial environments. It features a high-resolution touchscreen, fast processing, and versatile communication options, making it ideal for applications requiring intuitive monitoring and control.

Key Features

  • Display Size: 10.4 inches

  • Resolution: 800 x 600 pixels (SVGA)

  • Display Type: TFT LCD with LED backlight

  • Colors: 65K

  • Touchscreen: Resistive

  • Processor: 800 MHz CPU

  • RAM: 256 MB

  • Flash Memory: 256 MB

  • Ports:

    • 1 x Ethernet (10/100 Mbps)

    • RS-232, RS-422/485 serial ports

    • USB 2.0 Host

    • microSD slot (up to 32 GB)

  • Input Voltage: 24V DC (range: 18–32V DC)

  • Power Consumption: 14 W (0.58 A @ 24V DC)

  • Integrated Real-Time Clock with battery backup

  • Enclosure Rating: IP65 (NEMA 4X/12/13) front panel

  • Mounting: Panel mount

  • Operating Temperature: 0 to 50°C

  • Dimensions: 225 x 287 x 55 mm

  • Panel Cutout: 206 x 269 mm

  • Weight: Approx. 1.64 kg

  • Certifications: UL, cULus, CE, RCM, KC, RoHS

Software Compatibility

  • Programming Software: Connected Components Workbench (CCW)

  • Supported Protocols: EtherNet/IP, Modbus RTU, Modbus TCP, DF1, DH-485

  • Compatible Controllers: Micro800, MicroLogix, CompactLogix 5370 and 5380

Applications

  • Packaging lines

  • Material handling systems

  • Water and wastewater management

  • Food and beverage processes

  • General factory automation

Why Choose the 2711R-T10T?

  • High-resolution display for clear visualization

  • Reliable processing for responsive HMI performance

  • Built-in Ethernet, serial, USB, and SD for connectivity and expansion

  • Compact, rugged design for industrial panel installations

  • Wide protocol support for flexible system integration

Order Now

Available and ready to ship globally.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
