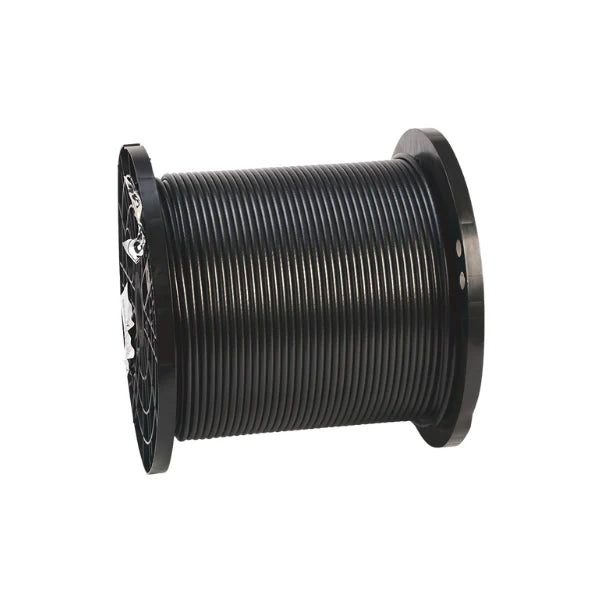

ControlNet cable, RG-6, quad shield, 75 Ohm, 1000 ft reel, industrial-grade coaxial cable.

Allen-Bradley 1786-RG6

SKU: 1786-RG6
Your Price:
$1,470.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1786-RG6 | ControlNet Coaxial Cable | 75 Ohm | RG-6 | Quad Shield | 1000 ft (304.8 m) Reel | Industrial-Grade Communication Cable

Overview

The Allen-Bradley 1786-RG6 is a quad-shielded, 75 Ohm RG-6 coaxial cable specifically designed for ControlNet trunk and drop line installations. This model is supplied on a 1000-foot (304.8 meters) reel and is ideal for high-reliability communication in industrial automation networks. With superior shielding and rugged construction, it meets ControlNet specifications for EMI protection and long-distance signal integrity.

Key Features

  • Cable Type: RG-6 coaxial

  • Impedance: 75 Ohm ±3 Ohm

  • Shielding: Quad shield (2 aluminum foil layers + 2 braided shields)

  • Length: 1000 ft (304.8 m) reel

  • Jacket Material: Industrial-grade PVC

  • ControlNet Compliant: Yes, supports trunk and drop applications

  • Color: Typically black (may vary by batch)

Technical Specifications

  • Catalog Number: 1786-RG6

  • Capacitance: ~67 pF/m

  • Shielding Effectiveness: > 45 dB

  • Operating Temperature: -20°C to +60°C

  • Minimum Bend Radius: ~5x cable diameter

  • Connectors: Compatible with BNC and RJ6 terminations

  • Certifications: UL recognized, CE compliant, ControlNet-certified

Applications

  • ControlNet trunk and drop segments

  • PLC-to-I/O module communication

  • Real-time distributed control networks

  • Industrial environments with high EMI/RFI

  • Long-distance ControlNet installations

Why Choose the 1786-RG6?

  • Quad shield for enhanced EMI protection

  • Long reel (1000 ft) for large-scale ControlNet projects

  • Supports high-speed deterministic data transfer

  • Flexible and durable for industrial routing

  • Engineered to Rockwell Automation’s quality standards

Order Now

The Allen-Bradley 1786-RG6 ControlNet coaxial cable (1000 ft reel) is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
