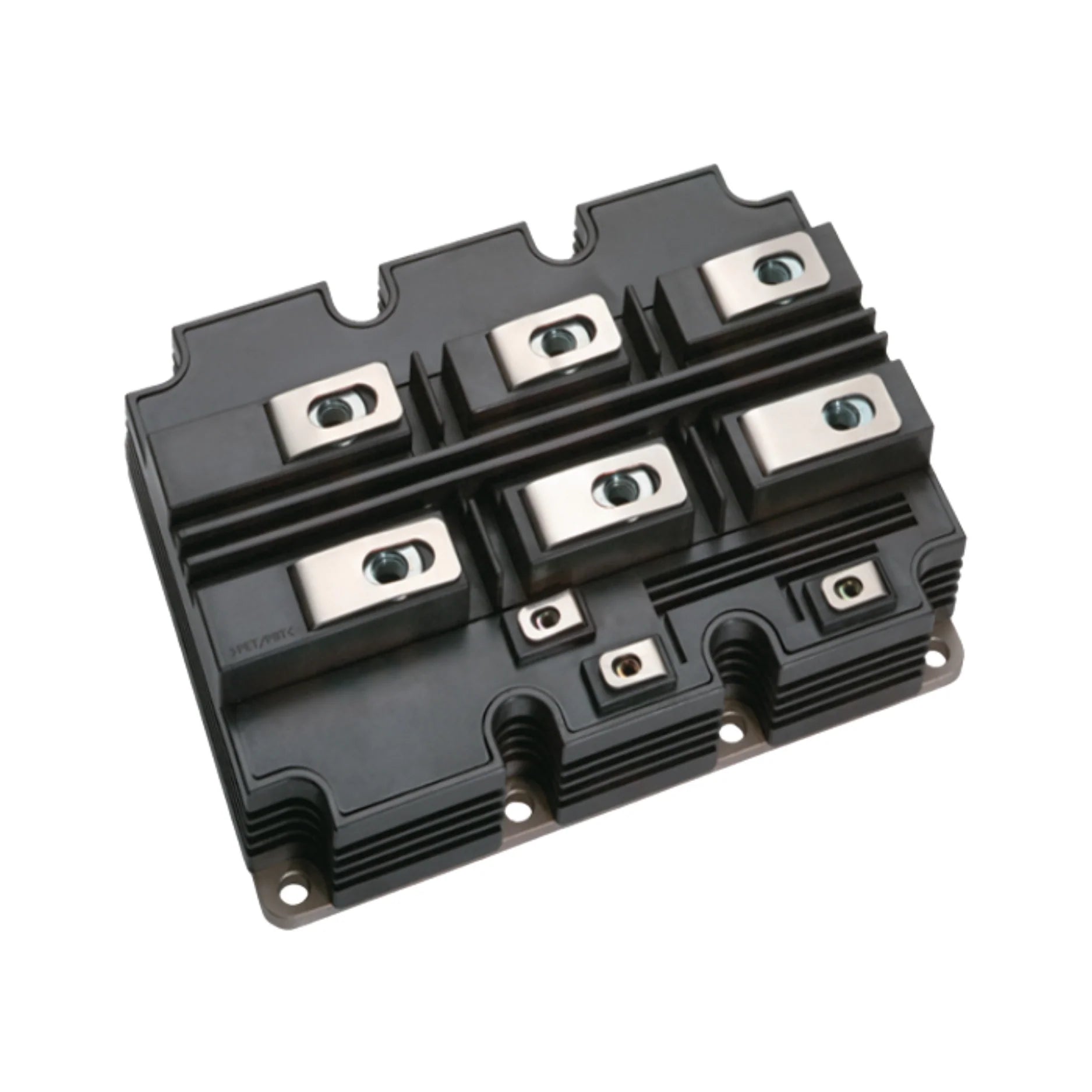

Mitsubishi CM600HG-130H IGBT module, 600A capacity, 600V, dual setup, fast switching capability

Mitsubishi CM600HG-130H

Your Price:
$800.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Mitsubishi CM600HG-130H

Overview

The Mitsubishi CM600HG-130H is an advanced IGBT module crafted for speedy switching in applications like motor drives, UPS, and industrial inverters. It operates at 600 A and 600 V, featuring a dual IGBT setup for optimal thermal efficiency and switching performance.

Key Features

  • Collector Current: 600 A

  • Collector-Emitter Voltage: 600 V

  • Dual IGBT configuration

  • High-speed switching capability

  • Low saturation voltage for better efficiency

  • High thermal conductivity ceramic substrate

  • Isolated baseplate for convenient mounting

  • Perfect for inverter and power control systems

Technical Specifications

  • Model: CM600HG-130H

  • Configuration: Dual IGBT

  • Collector-Emitter Voltage (VCES): 600 V

  • Collector Current (IC): 600 A

  • Gate-Emitter Voltage: ±20 V

  • Switching Frequency: Up to 20 kHz

  • Isolation Voltage: ≥2500 V RMS

  • Mounting: Screw type, isolated baseplate

  • Operating Temperature: –40 °C to +150 °C

  • Weight: Approx. 450 g

  • RoHS Compliant

Applications

  • High-power industrial motor drives

  • Uninterruptible power supplies (UPS)

  • Electric vehicle inverters

  • Renewable energy systems

  • High-frequency induction heating

Why Choose the CM600HG-130H

  • Handles heavy-duty industrial power needs

  • Dependable Mitsubishi IGBT performance

  • Superior thermal management and durability

  • Minimizes switching losses for better operation

  • Suited for new high-frequency inverter designs

Order Now

The Mitsubishi CM600HG-130H IGBT power module is in stock and ships globally.

This product is part of our Mitsubishi IGBT Modules collection, made for efficient power conversion and dependable performance in industrial automation. Explore the complete range of Mitsubishi IGBT Modules.

Discover the Power Electronics Components main category for diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
