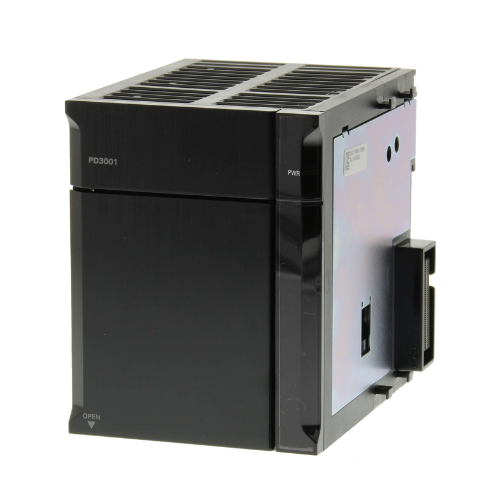

Omron NJ-PD3001 | 24 VDC Power Supply Unit

Omron NJ-PD3001 | Reliable 24 VDC Power Supply Unit for NJ-Series Controllers

Overview

The Omron NJ-PD3001 is a DC power supply unit specifically designed to provide stable and efficient power to Omron's NJ-Series Machine Automation Controllers. Operating with a 24 VDC input voltage, this unit delivers precise 5 VDC and 24 VDC outputs, ensuring optimal performance of connected devices. Its robust features and compact design make it an ideal choice for industrial automation systems requiring dependable power solutions.

Key Features

• Input Voltage: Operates with a 24 VDC input, accommodating standard industrial DC power sources.

• Dual DC Outputs:

  • 5 VDC Output: Supplies up to 6.0 A, supporting the CPU Unit and associated modules.

  • 24 VDC Output: Provides up to 1.0 A for peripheral devices.

• Total Output Capacity: Delivers a combined power output of 30 W, suitable for multiple components.

• RUN Output Indicator: Features an SPST-NO contact that signals the operational status of the CPU Unit.

• Compact and Lightweight: Designed for space-saving installation without compromising performance.

Technical Specifications

• Model Number: NJ-PD3001

• Input Voltage Range: 19.2 to 28.8 VDC

• Power Consumption: 60 W max.

• Inrush Current: 30 A/20 ms max. for cold start

• Output Capacities:

  • 5 VDC Output: 6.0 A (including supply to CPU Unit using CPU Rack)

  • 24 VDC Output: 1.0 A

  • Total Output: 30 W max.

• RUN Output:

  • Contact Configuration: SPST-NO

  • Switch Capacity: 250 VAC, 2 A (resistive load); 120 VAC, 0.5 A (inductive load); 24 VDC, 2 A (resistive load)

• Insulation Resistance: 20 MΩ min. (at 500 VDC) between DC external and GR terminals

• Dielectric Strength: 1,000 VAC 50/60 Hz for 1 min between DC external and GR terminals; leakage current 10 mA max.

• Noise Immunity: 2 kV on power supply line (Conforms to IEC 61000-4-4)

• Vibration Resistance: 5 to 8.4 Hz, 3.5-mm amplitude; 8.4 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 100 min (according to IEC 60068-2-6)

• Shock Resistance: 147 m/s² 3 times each in X, Y, and Z directions (according to IEC 60068-2-27)

• Operating Temperature Range: 0°C to 55°C

• Storage Temperature Range: -20°C to 75°C

• Operating Humidity Range: 10% to 90% (non-condensing)

• Dimensions: 90 mm (H) × 70 mm (W) × 90 mm (D)

• Weight: Approximately 490 g

• Certifications: CE, cULus, NK, Lloyd, RCM, KC

Applications

• Industrial Automation: Provides reliable power to NJ-Series controllers and associated modules in various automation systems.

• Process Control: Ensures stable operation of controllers managing complex industrial processes.

• Machine Control: Supplies consistent power to controllers overseeing machinery operations.

Why Choose Omron NJ-PD3001?

• Stable Power Supply: Delivers consistent and reliable power to NJ-Series controllers and peripherals.

• Compact Design: Space-saving form factor allows for efficient integration into control panels.

• Operational Monitoring: RUN output indicator facilitates easy monitoring of CPU Unit status.

• Robust Construction: Designed to withstand industrial environments with high vibration and shock resistance.

• Compliance with Standards: Meets international safety and performance standards, ensuring reliability and quality.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron NJ-Series controllers, I/O units, and other automation components to complete your system configuration.
