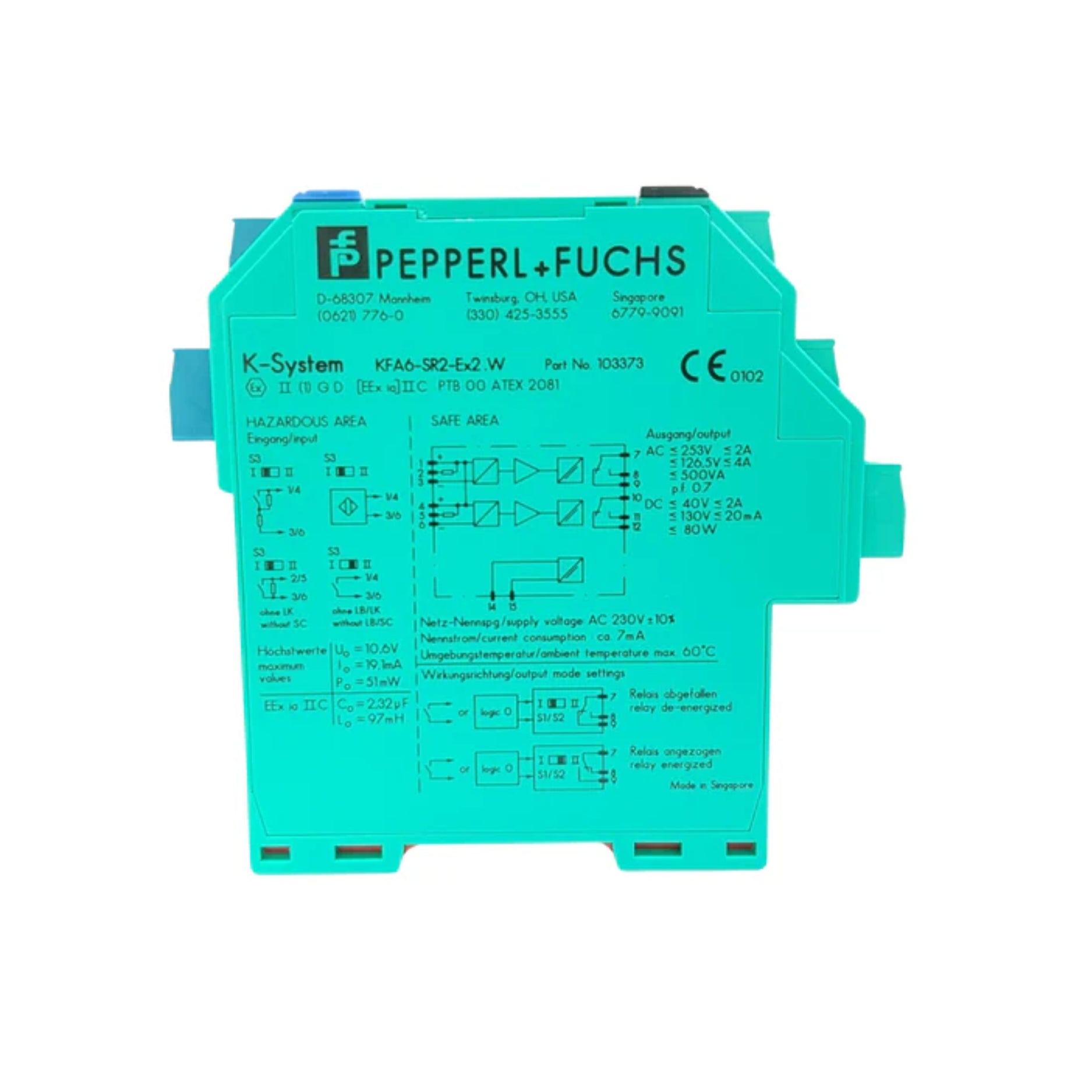

Pepperl+Fuchs KFA6‑SR2‑EX2.W | Isolating Amplifier | Safety Barrier | Intrinsically Safe
Overview
The KFA6‑SR2‑EX2.W is a certified 2‑channel intrinsic safety isolator (barrier) from Pepperl+Fuchs, designed to protect control systems from hazardous-area sensors operating in Zone 0/1 environments. It safely converts Ex-approved sensor signals to safe output signals for standard control systems.
Key Features
-
Channels: 2 isolated input/output channels
-
Protection Level: Intrinsic safety for Zone 0/1 applications
-
DIN‑Rail Mount: Compact housing for easy panel integration
-
Signal Compatibility: Supports sensors and transmitters
-
Galvanic Isolation: Prevents cross-channel faults
-
Status Indication: LEDs for each channel
-
Approved: ATEX, IECEx, and SIL suitable designs
Technical Specifications
-
Model Number: KFA6‑SR2‑EX2.W
-
Rated Voltage: 250 V AC/DC
-
Max Output Current: ~200 mA per channel
-
Input Isolation Test Voltage: 2.5 kV
-
Operating Temp.: –20 °C to +60 °C
-
Mounting: DIN‑rail TS35
-
Housing Width: ~22.5 mm
-
Certifications: ATEX, IECEx, SIL-capable
Applications
-
Isolation of hazardous-area sensors in Ex environments
-
Signal transmission from pressure, temperature, or flow sensors
-
Functional safety circuits in process industries
-
Automation systems in oil & gas, chemicals, and pharma
Why Choose KFA6‑SR2‑EX2.W
-
Dual-Channel Safety: Two independent paths for measured variables
-
Intrinsic Safety Compliance: Certified for Zone 0/1 use
-
Compact and Rugged: DIN-rail housing with LED diagnostics
-
Reliable Isolation: Protects control systems from hazardous signals
-
Industry-Ready: Meets international safety and explosion-proof standards
Order Now
The Pepperl+Fuchs KFA6‑SR2‑EX2.W isolator is available and ships worldwide.
