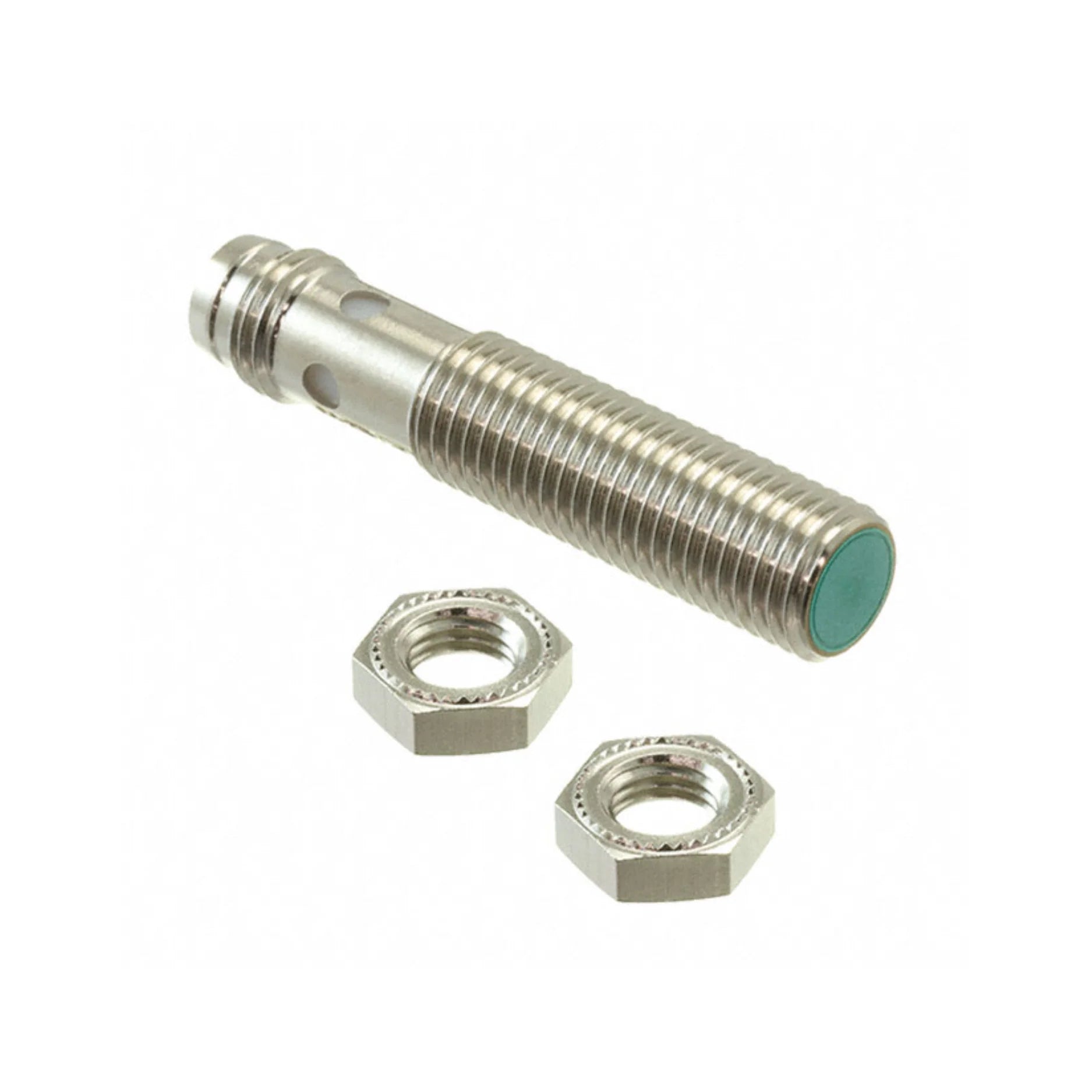

Pepperl+Fuchs NBB2‑8GM25‑E2‑V3 | Inductive Proximity Sensor | 2 mm | M8 Housing | PNP NO | DC 3‑Wire
Overview
The NBB2‑8GM25‑E2‑V3 is a compact inductive proximity sensor designed for non-contact detection of metallic objects. Featuring a 2 mm sensing range and M8 cylindrical housing, this sensor is ideal for tight-space installations in automation and machinery. It provides a PNP normally open output with DC 3-wire configuration and an M8 plug connection.
Key Features
-
Sensing Distance: 2 mm
-
Output Type: PNP, Normally Open (NO)
-
Electrical Design: DC 3-wire
-
Housing Size: M8 x 1, nickel-plated brass
-
Connection: M8 connector, 3-pin
-
LED status indication
-
IP67 protection for industrial use
-
Short-circuit and overload protection
Technical Specifications
-
Part Number: NBB2‑8GM25‑E2‑V3
-
Rated Operating Distance: 2 mm
-
Installation Type: Flush (shielded)
-
Operating Voltage: 10–30 V DC
-
Switching Frequency: ≤ 2,000 Hz
-
Max Switching Current: ≤ 200 mA
-
Voltage Drop: ≤ 1.5 V
-
Current Consumption: ≤ 15 mA
-
Protection Class: IP67
-
Ambient Temperature: –25 °C to +70 °C
-
Housing Material: Nickel-plated brass
-
Sensing Face: Plastic
-
Connection Type: M8 connector, 3-pin
Applications
-
Machine automation
-
Position detection in assembly lines
-
Robotics and grippers
-
Compact machinery with space constraints
-
OEM and control panel integration
Why Choose NBB2‑8GM25‑E2‑V3
-
Compact design for tight installations
-
Reliable 2 mm detection in harsh environments
-
Quick M8 plug connection
-
High switching frequency for fast applications
-
Proven Pepperl+Fuchs durability and quality
Order Now
The Pepperl+Fuchs NBB2‑8GM25‑E2‑V3 inductive sensor is available and ships worldwide.
