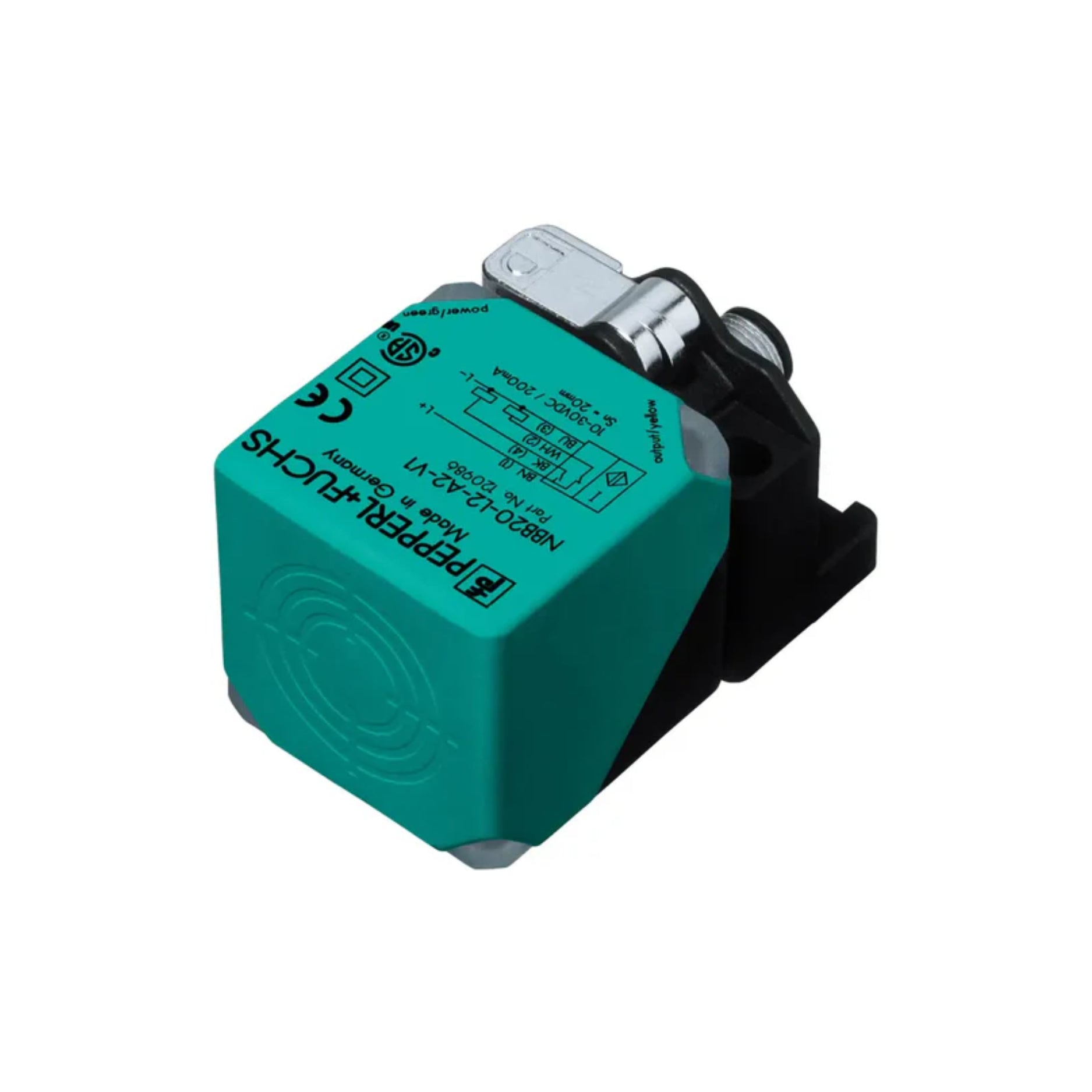

Pepperl+Fuchs NBB20‑L2‑A2‑V1 | Inductive Proximity Sensor | 20 mm Sensing | M30 Housing
Overview
The NBB20‑L2‑A2‑V1 is a robust and high-performance inductive proximity sensor designed by Pepperl+Fuchs. Featuring a 20 mm flush sensing distance and housed in a rugged M30 metal body, this sensor delivers reliable metal detection in industrial settings, supporting high-speed automation and precision positioning.
Key Features
-
Sensing Distance: 20 mm (flush mount)
-
Output Type: PNP, Normally Open (NO)
-
Electrical Design: 3‑wire DC, high-speed switching
-
Connection: M30 threaded connector
-
Housing: Stainless/nickel-plated brass, IP67 rated
-
LED Indicator: Output status visible
-
Switching Frequency: Up to 200 Hz
Technical Specifications
Specification | Details |
---|---|
Model | NBB20‑L2‑A2‑V1 |
Supply Voltage | 10–30 V DC |
Sensing Range (Sn) | 20 mm (flush) |
Switching Frequency | ≤ 200 Hz |
Output Current | Max 200 mA |
Voltage Drop | ≤ 2 V |
Operating Temp. | –25 °C to +70 °C |
Protection Class | IP67 (dust and water‑tight) |
Housing Length | ~75 mm (M30) |
Mounting Style | Flush |
Connection Type | M30 connector, 4‑pin |
Standards Compliance | EN 60947‑5‑2 |
Applications
-
Position sensing in conveyors and packaging lines
-
Metal presence detection in assembly systems
-
Robotics and automated machinery
-
Machine tool applications
-
OEM integration requiring extended sensing range
Why Choose NBB20‑L2‑A2‑V1
-
Extended Detection Range: 20 mm flush sensing for larger parts
-
Rugged Construction: Durable metal housing for heavy-duty use
-
Reliable PNP Output: Easy integration with PLC systems
-
Visual Diagnostics: Built-in LED for quick status checks
-
Industrial Compatibility: Meets IP67 standards for harsh environments
Order Now
The Pepperl+Fuchs NBB20‑L2‑A2‑V1 inductive proximity sensor is available and ships worldwide.
