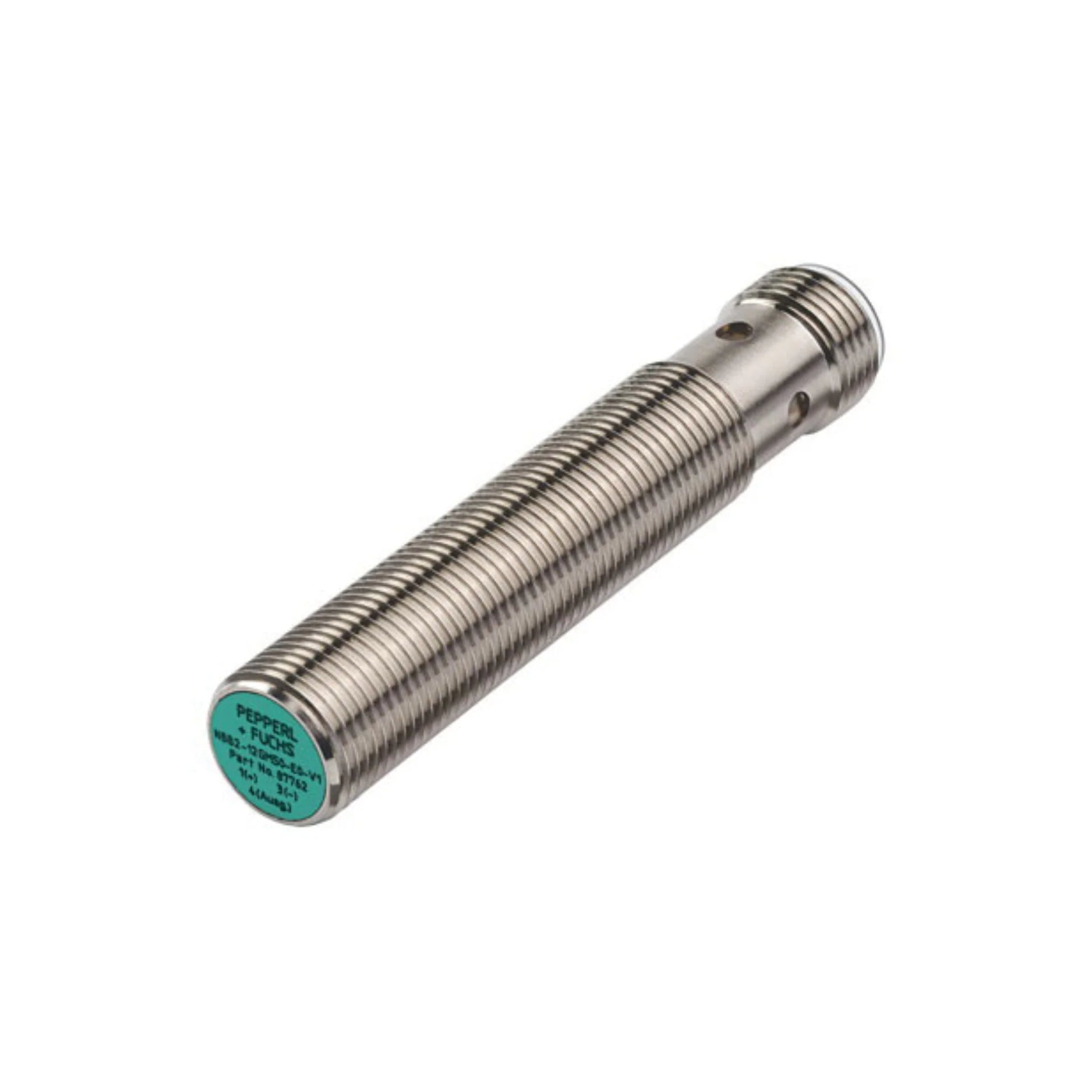

Pepperl+Fuchs NBB4‑12GM50‑E2‑V1 | Inductive Proximity Sensor | M12 | 4 mm Flush

Overview

The NBB4‑12GM50‑E2‑V1 is a precision flush-mount inductive proximity sensor with a 4 mm switching distance, delivered in a durable M12 × 1 metal housing. Featuring PNP normally open operation and an M12 connector, it offers reliable metal detection with robust industrial protection.


Key Features

  • Switching distance: 4 mm (flush)

  • Output: PNP, normally open (NO), 3-wire

  • Supply voltage: 5–60 V DC

  • Switching frequency: up to 2500 Hz

  • Reverse-polarity and short-circuit protected

  • Multihole yellow LED status indicator

  • Rated IP68/IP69K for harsh environments

  • Extended temperature range: –40 °C to +85 °C


Technical Specifications

  • Part Number: NBB4‑12GM50‑E2‑V1

  • Housing: Brass, nickel-plated, M12 × 1 threaded

  • Rated Distance (Sn): 4 mm flush

  • Assured Distance (Sa): 0–3.24 mm

  • Operating Voltage (UB): 5–60 V DC

  • Max Load Current (IL): 0–200 mA

  • Switching Frequency: 0–2500 Hz

  • Voltage Drop (Ud): ≤ 1–2 V

  • No-Load Current (I0): ≤ 7–15 mA

  • Temperature Range: –40 °C to +85 °C

  • Ingress Protection: IP68/IP69K

  • Certifications: CE, UL, cULus, CCC, marine approval


Applications

  • High-speed metal detection in automation lines

  • Flush mounting in robotics and conveyor systems

  • Position sensing in OEM machinery

  • Washing environments thanks to IP69K rating

  • Industrial plants with extreme temperature/vibration requirements


Why Choose NBB4‑12GM50‑E2‑V1

  • High switching speed up to 2500 Hz for fast applications

  • Robust metal housing and high ingress protection

  • Wide voltage range allows flexible deployment

  • LED diagnostics simplify installation and maintenance

  • Global approvals ensure compatibility and safety


Order Now

The Pepperl+Fuchs NBB4‑12GM50‑E2‑V1 inductive proximity sensor is available and ships worldwide.
