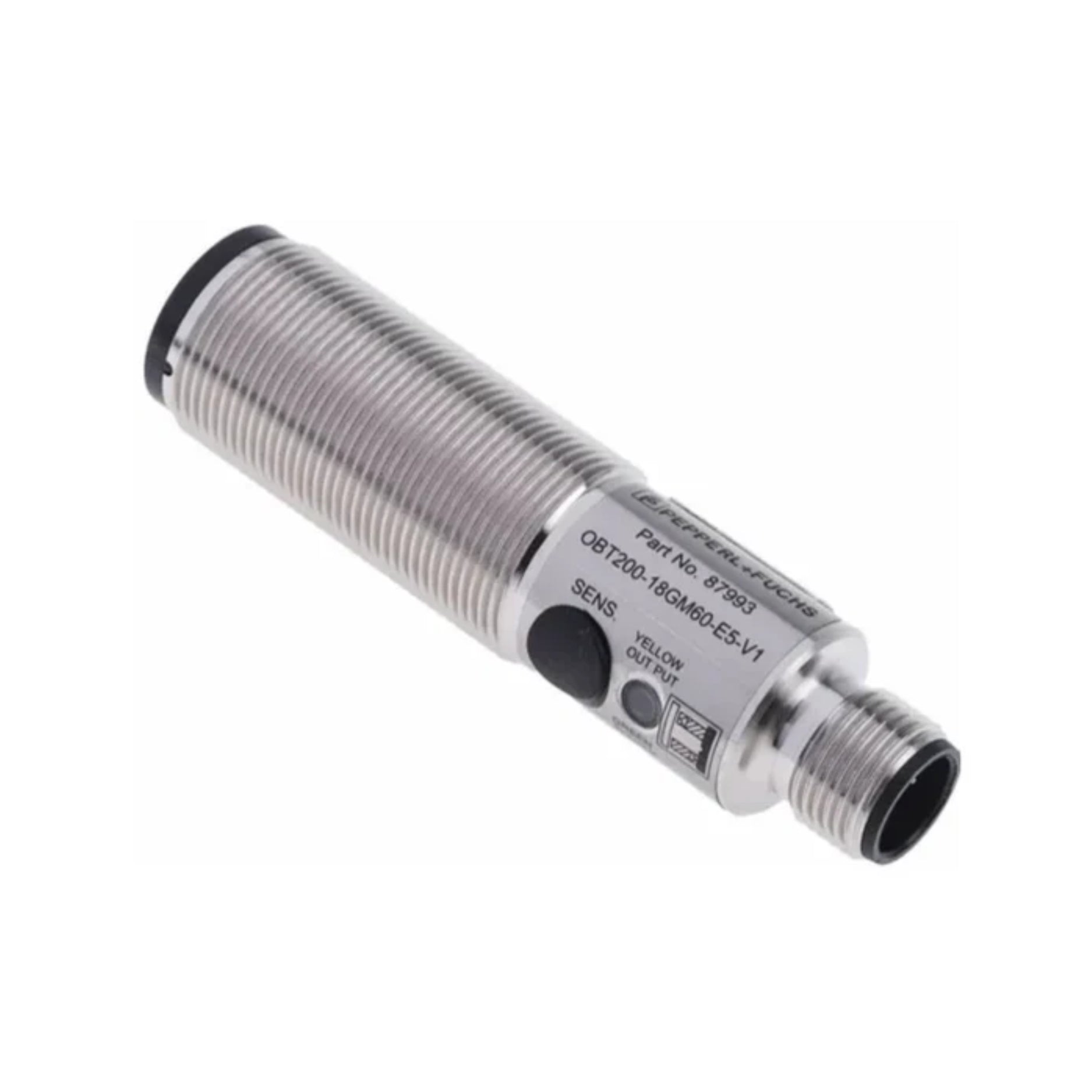

Pepperl+Fuchs OBT200‑18GM60‑E5‑V1 | Ultrasonic Sensor | 200 mm Range | IO‑Link | M18 Housing
Overview
The OBT200‑18GM60‑E5‑V1 is a precision ultrasonic sensor from Pepperl+Fuchs, featuring IO‑Link communication for flexible setup and diagnostics. Housed in a compact M18 threaded metal casing, it provides accurate object detection up to 200 mm with dual‑echo filtering, making it ideal for industrial automation and robotic applications.
Key Features
-
Sensing Range: 0–200 mm
-
Communication: IO‑Link enabled (V1.1) with dual‑echo filtering
-
Housing: M18 threaded nickel-plated brass
-
Output: IO‑Link plus PNP switching
-
LED Indicators: Echo detection and IO‑Link status
-
Ingress Protection: IP67 / IP69K
-
Connection: M12 4‑pin plug
-
Temperature Range: –25 °C to +70 °C
Technical Specifications
Specification | Details |
---|---|
Model | OBT200‑18GM60‑E5‑V1 |
Sensor Type | Ultrasonic, IO‑Link enabled |
Range | 0–200 mm |
Echo Feature | Dual‑echo processing |
Outputs | IO‑Link + PNP output |
Housing | M18 thread, nickel-plated brass |
Connection | M12 × 4‑pin |
Protection | IP67 / IP69K |
Voltage | 10–30 V DC |
Current Consumption | ≤ 50 mA |
Operating Temp. | –25 °C to +70 °C |
Weight | Approx. 100 g |
Applications
-
Position detection in packaging and material handling
-
Collision avoidance in robots and AGVs
-
Transparent and shiny object sensing
-
Container fill-level monitoring
-
Setup and diagnostics via IO‑Link for industrial systems
Why Choose OBT200‑18GM60‑E5‑V1
-
IO‑Link compatibility allows flexible configuration and status monitoring
-
Dual‑echo filtering ensures reliable sensing in difficult conditions
-
M18 rugged housing suitable for machine-level environments
-
Standard M12 connector simplifies installation
-
High ingress protection ensures durability under washdown and dust exposure
Order Now
The Pepperl+Fuchs OBT200‑18GM60‑E5‑V1 ultrasonic sensor is available and ships worldwide.
