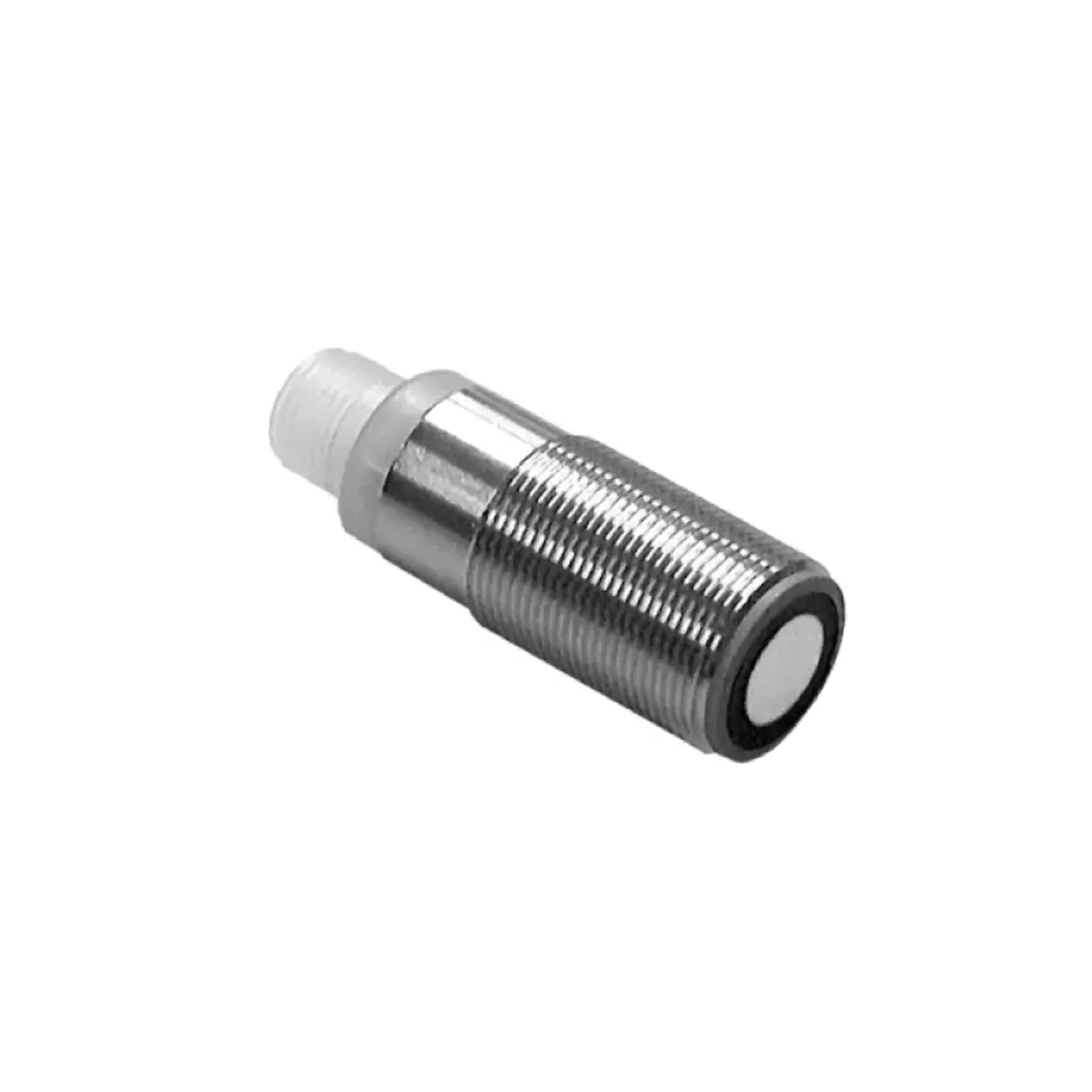

Pepperl+Fuchs UB300‑18GM40‑E5‑V1 | Ultrasonic Sensor | 300 mm Range | M18 Housing | Analog Output
Overview
The UB300‑18GM40‑E5‑V1 is a cylindrical ultrasonic sensor designed for precise distance measurement in a wide range of industrial applications. With a detection range of 20 mm to 300 mm and analog 0–10 V output, this sensor ensures reliable performance in detecting objects regardless of surface, color, or material. Its M18 housing and IP67 rating make it highly durable for demanding environments.
Key Features
-
Sensing Range: 20 mm to 300 mm
-
Output Type: Analog 0–10 V
-
Housing Size: M18 cylindrical
-
Short blind zone for close-range detection
-
Highly reliable, even with transparent or reflective objects
-
LED indicators for status monitoring
-
Compact design with standard M12 connector
-
IP67 protection for harsh environments
Technical Specifications
-
Part Number: UB300‑18GM40‑E5‑V1
-
Measurement Range: 20–300 mm
-
Output Signal: 0–10 V, analog
-
Operating Voltage: 15–30 V DC
-
Current Consumption: < 35 mA
-
Response Time: ≤ 100 ms
-
Connection: M12 plug (4-pin)
-
Housing Material: Nickel-plated brass
-
Sensing Surface: Plastic
-
Protection Class: IP67
-
Operating Temperature: –25 °C to +70 °C
-
Adjustments: Via teach-in
-
Mounting: Threaded M18
Applications
-
Object positioning and distance monitoring
-
Level detection in tanks and containers
-
Packaging and conveyor systems
-
Transparent and shiny object detection
-
Industrial automation requiring non-contact measurement
Why Choose UB300‑18GM40‑E5‑V1
-
Reliable detection regardless of material or color
-
Compact and easy to install
-
High accuracy analog signal output
-
Robust for dusty, dirty, or humid environments
-
Backed by Pepperl+Fuchs industrial-grade quality
Order Now
The Pepperl+Fuchs UB300‑18GM40‑E5‑V1 ultrasonic sensor is available and ships worldwide.
