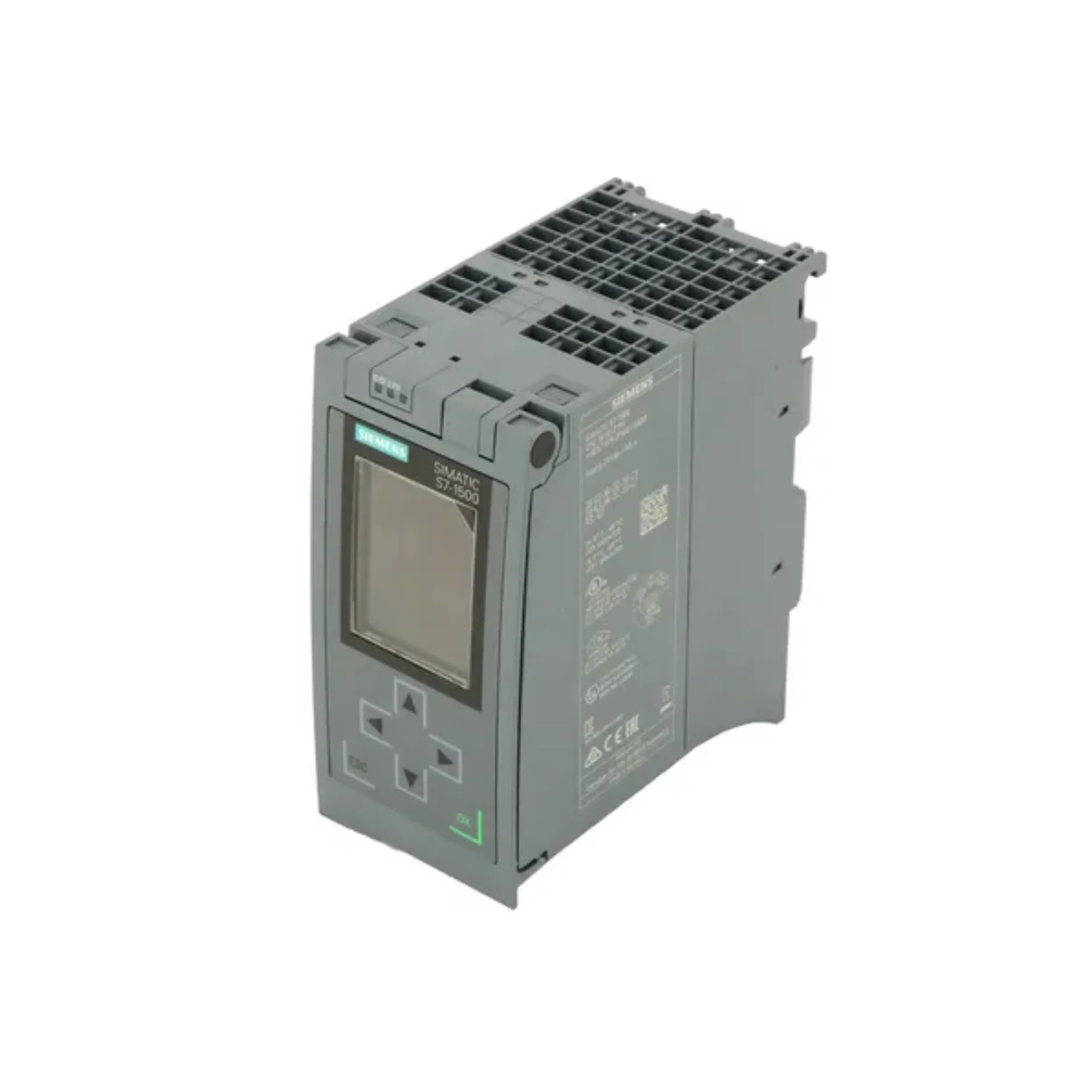

Siemens 6ES7515-2FM01-0AB0 | S7-1500 Fail-Safe CPU 1515F-2 PN – High-Performance Safety PLC for Integrated Automation
Overview
The Siemens 6ES7515-2FM01-0AB0 is a fail-safe central processing unit (CPU 1515F-2 PN) from the SIMATIC S7-1500 series, designed for standard and safety applications. It features integrated Safety Integrated technology, supports PROFINET communication, and is programmed using the TIA Portal. Ideal for high-reliability automation systems in manufacturing, process control, and machine safety.
Key Features
-
Program Memory: 1 MB
-
Data Memory: 5 MB
-
Fail-Safe Support: Yes (Safety Integrated, SIL3 / PL e)
-
Interfaces:
-
2× PROFINET ports (with switch)
-
1× Memory card slot (required for operation)
-
-
High-Speed Processing: Fast I/O response times
-
Display: Integrated front display for diagnostics and status
-
Mounting: DIN rail (S7-1500 rail system)
-
Protection Class: IP20
Technical Specifications
-
Part Number: 6ES7515-2FM01-0AB0
-
Series: SIMATIC S7-1500
-
CPU Type: CPU 1515F-2 PN (Fail-Safe + Standard)
-
Processor Performance: Medium-performance class
-
Cycle Time: Approx. 60 ns per bit operation
-
Communication: PROFINET IO Controller, PROFIsafe
-
Operating Temp: 0°C to +60°C
-
Certifications: CE, UL, cULus, SIL 3, PL e, RoHS
Applications
-
Safety-critical automation systems
-
Machine and plant control systems
-
Process automation with integrated diagnostics
-
Packaging, automotive, and assembly lines
-
Robotics and motion control systems with safety
Why Choose the 6ES7515-2FM01-0AB0?
-
All-in-One Control: Combines standard and fail-safe functions in one device
-
PROFINET Ready: Dual-port switch for flexible network topologies
-
Safety Integrated: Certified for functional safety up to SIL 3 / PL e
-
TIA Portal Programming: Seamless integration and efficient engineering
-
Robust Siemens Design: Built for demanding industrial environments
Order Now
The Siemens 6ES7515-2FM01-0AB0 CPU 1515F-2 PN is available and ships worldwide.
Description
Siemens 6ES7515-2FM01-0AB0 | S7-1500 Fail-Safe CPU 1515F-2 PN – High-Performance Safety PLC for Integrated Automation
Overview
The Siemens 6ES7515-2FM01-0AB0 is a fail-safe central processing unit (CPU 1515F-2 PN) from the SIMATIC S7-1500 series, designed for standard and safety applications. It features integrated Safety Integrated technology, supports PROFINET communication, and is programmed using the TIA Portal. Ideal for high-reliability automation systems in manufacturing, process control, and machine safety.
Key Features
-
Program Memory: 1 MB
-
Data Memory: 5 MB
-
Fail-Safe Support: Yes (Safety Integrated, SIL3 / PL e)
-
Interfaces:
-
2× PROFINET ports (with switch)
-
1× Memory card slot (required for operation)
-
-
High-Speed Processing: Fast I/O response times
-
Display: Integrated front display for diagnostics and status
-
Mounting: DIN rail (S7-1500 rail system)
-
Protection Class: IP20
Technical Specifications
-
Part Number: 6ES7515-2FM01-0AB0
-
Series: SIMATIC S7-1500
-
CPU Type: CPU 1515F-2 PN (Fail-Safe + Standard)
-
Processor Performance: Medium-performance class
-
Cycle Time: Approx. 60 ns per bit operation
-
Communication: PROFINET IO Controller, PROFIsafe
-
Operating Temp: 0°C to +60°C
-
Certifications: CE, UL, cULus, SIL 3, PL e, RoHS
Applications
-
Safety-critical automation systems
-
Machine and plant control systems
-
Process automation with integrated diagnostics
-
Packaging, automotive, and assembly lines
-
Robotics and motion control systems with safety
Why Choose the 6ES7515-2FM01-0AB0?
-
All-in-One Control: Combines standard and fail-safe functions in one device
-
PROFINET Ready: Dual-port switch for flexible network topologies
-
Safety Integrated: Certified for functional safety up to SIL 3 / PL e
-
TIA Portal Programming: Seamless integration and efficient engineering
-
Robust Siemens Design: Built for demanding industrial environments
Order Now
The Siemens 6ES7515-2FM01-0AB0 CPU 1515F-2 PN is available and ships worldwide.
