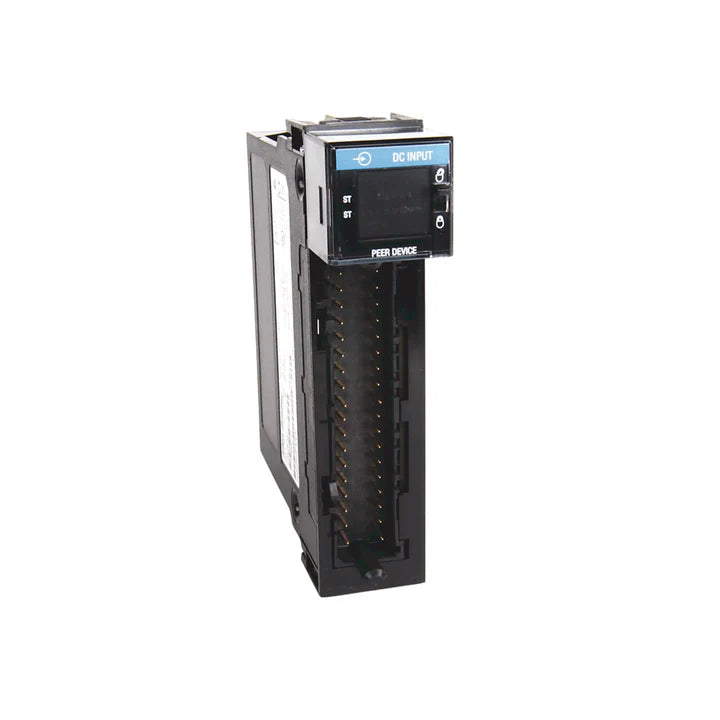

Allen-Bradley 1756-IB16IF digital input module, 16-channel, isolated, 24V DC sinking, fast input

Allen-Bradley 1756-IB16IF

SKU: 1756-IB16IF
Your Price:
$1,640.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1756-IB16IF

Overview

The Allen-Bradley 1756-IB16IF is a 16-channel 24V DC digital input module designed for fast response applications in ControlLogix systems. Each input is individually isolated, providing enhanced protection and precise signal handling for high-speed automation systems. It uses sinking (NPN) logic for compatibility with a variety of field devices.

Key Features

  • Input Type: Digital, sinking (NPN)

  • Voltage Range: 10–30V DC

  • Channels: 16 individually isolated inputs

  • Response Time: Fast input processing

  • Isolation: Channel-to-channel and channel-to-backplane

  • Mounting: ControlLogix 1756 chassis

  • Status Indicators: LED per channel

Technical Specifications

  • Catalog Number: 1756-IB16IF

  • Input Voltage: 24V DC nominal

  • Input Delay Time: <0.2 ms (ON/OFF)

  • Input Current (typical): 6.1 mA @ 24V DC

  • Backplane Current Load: 150 mA @ 5.1V DC

  • Isolation Voltage: 250V (continuous, tested @ 1350V AC for 60s)

  • Operating Temp: 0°C to +60°C

  • Storage Temp: -40°C to +85°C

  • Certifications: UL, CE, CSA, RoHS

  • Removable Terminal Block: Yes

Applications

  • High-speed detection systems

  • Packaging and assembly machinery

  • Robotics and motion control

  • Fast input signal processing

  • Safety interlocks and sensor feedback

Why Choose the 1756-IB16IF

  • Fast Input Response: Ideal for time-critical systems

  • Individually Isolated Channels: Enhanced reliability and safety

  • ControlLogix Integration: Seamless fit into 1756 systems

  • Compact Design: High-density input in minimal space

  • Rugged Performance: Built for industrial use

Order Now

The Allen-Bradley 1756-IB16IF fast digital input module is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
