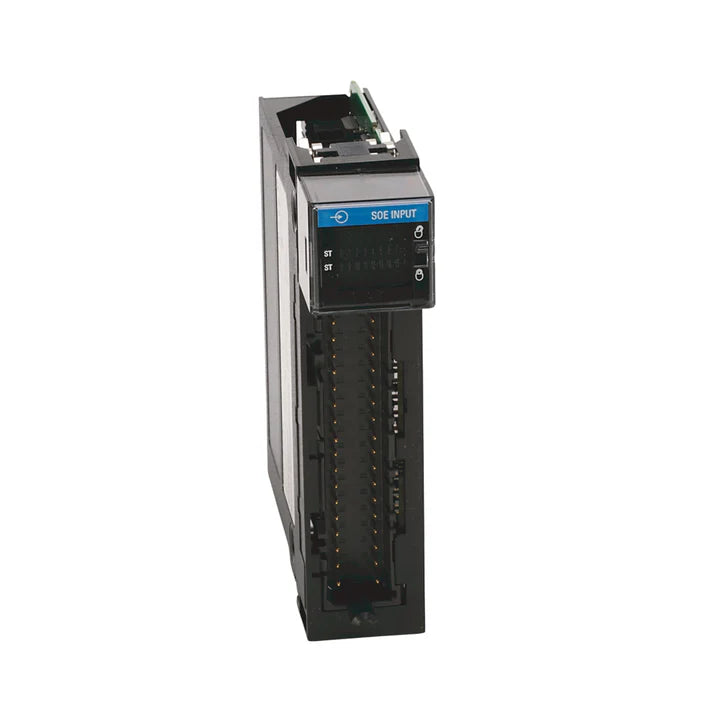

Allen-Bradley 1756-IB16ISOE high-speed SOE input module, 24V DC isolated, 16-channel, ControlLogix

Allen-Bradley 1756-IB16ISOE

SKU: 1756-IB16ISOE
Your Price:
$710.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1756-IB16ISOE

Overview

The Allen-Bradley 1756-IB16ISOE is a high-speed digital input module designed for sequence of events (SOE) applications in ControlLogix systems. It features 16 individually isolated 24V DC sinking (NPN) inputs and provides timestamped input data with 1 ms resolution, enabling precise capture of time-critical events across power systems, safety systems, and diagnostics.

Key Features

  • Input Type: Digital, sinking (NPN)

  • Channels: 16 individually isolated

  • Input Voltage Range: 10–30V DC

  • Timestamp Accuracy: 1 ms resolution

  • Special Functionality: Sequence of Events (SOE) logging

  • Backplane Interface: ControlLogix 1756 platform

  • Removable Terminal Block: Yes

Technical Specifications

  • Catalog Number: 1756-IB16ISOE

  • Nominal Voltage: 24V DC

  • Input Delay Time: <1 ms

  • Input Current: 6 mA @ 24V DC

  • Backplane Current Load: 200 mA @ 5.1V DC

  • Isolation Voltage: 250V continuous

  • Timestamp Resolution: 1 ms

  • Operating Temperature: 0°C to +60°C

  • Storage Temperature: -40°C to +85°C

  • Certifications: UL, CE, CSA, RoHS

  • Status Indicators: LED per channel

  • SOE Buffer: Up to 256 timestamped events

Applications

  • Power generation and distribution

  • High-speed safety monitoring

  • Time-critical industrial diagnostics

  • Event logging in automation systems

  • Utility substations and switchgear

Why Choose the 1756-IB16ISOE

  • Accurate Event Capture: 1 ms SOE timestamping

  • Individual Channel Isolation: Minimizes cross-talk and interference

  • Diagnostics Ready: Ideal for root cause and audit tracing

  • Industrial Grade: Designed for harsh and fast-paced environments

  • ControlLogix Integration: Seamlessly fits into 1756 systems

Order Now

The Allen-Bradley 1756-IB16ISOE high-speed SOE input module is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
