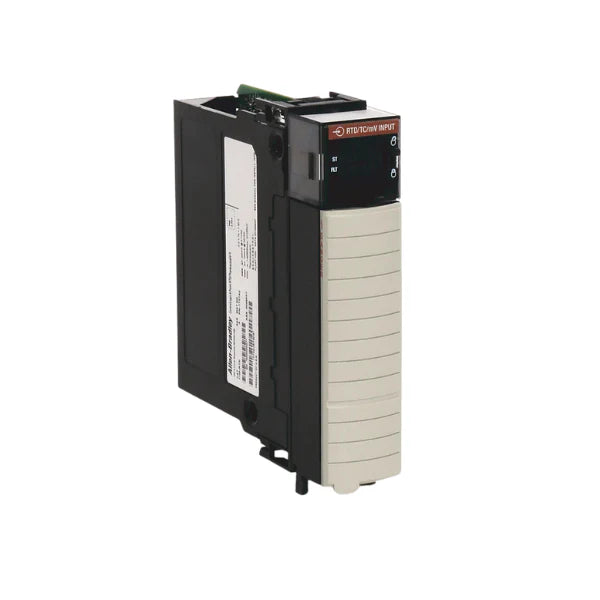

Allen-Bradley 1756-IR12 RTD input module, 12-channel, 16-bit resolution, ControlLogix, temperature monitoring.

Allen-Bradley 1756-IR12

SKU: 1756-IR12
Your Price:
$1,730.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1756-IR12

Product Overview

The Allen-Bradley 1756-IR12 is a high-density RTD input module for the ControlLogix platform, offering 12 differential input channels for precise temperature monitoring using resistance temperature detectors. With 16-bit resolution and support for multiple RTD types, this module is ideal for critical process applications requiring accurate and stable temperature input. It is also compatible with redundant systems, making it suitable for high-availability control environments.

Key Highlights

  • Input Type: RTD (Resistance Temperature Detector)

  • Channels: 12 differential inputs

  • Resolution: 16-bit

  • RTD Types Supported: PT100, PT200, PT500, PT1000, Nickel, Copper

  • Module Type: Analog input for temperature monitoring

  • Platform: ControlLogix chassis

  • Redundancy: Supported in redundant systems

  • Diagnostic Features: Open circuit detection, overrange alarms

Detailed Specifications

  • Part Number: 1756-IR12

  • Voltage: Backplane powered (ControlLogix chassis)

  • RTD Range: -200°C to +850°C (depending on sensor type)

  • Conversion Rate: Programmable per channel

  • Accuracy: ±0.3°C typical (sensor-dependent)

  • Operating Temp: 0°C to 60°C

  • Enclosure: Open-style module

  • Certifications: UL, CE, cUL, ATEX, RoHS

  • Dimensions (H x W x D): Approx. 140 mm x 35 mm x 118 mm

Common Uses

  • Industrial process temperature monitoring

  • Redundant control systems

  • High-accuracy thermal feedback applications

  • Chemical and pharmaceutical manufacturing

  • Food, beverage, and cleanroom environments

Why It Stands Out

  • 12 input channels in a single module reduce chassis space

  • High accuracy with 16-bit resolution for precision control

  • Supports a wide range of RTD types

  • Fully integrates with ControlLogix controllers

  • Redundancy support for high-availability systems

Get Yours Today

The Allen-Bradley 1756-IR12 RTD input module is in stock and ready for fast delivery.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
