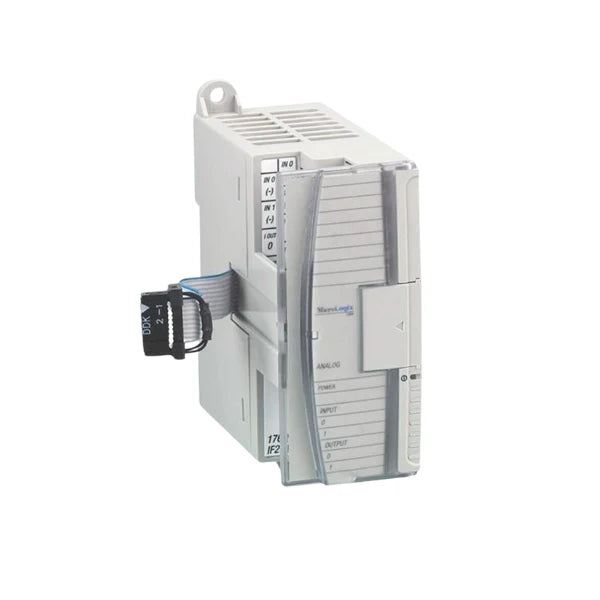

Allen-Bradley 1762-IF2OF2 analog I/O module, 2 input, 2 output, 12-bit, 24V DC, MicroLogix expansion.

Allen-Bradley 1762-IF2OF2

SKU: 1762-IF2OF2
Your Price:
$414.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1762-IF2OF2

Product Overview

The Allen-Bradley 1762-IF2OF2 is an analog I/O expansion module for the MicroLogix 1100, 1200, and 1400 controller families. This module provides two analog inputs and two analog outputs, with 12-bit resolution for each channel. Compact and DIN rail-mounted, it allows for flexible analog signal integration in small to mid-sized control systems.

Key Highlights

  • Analog Inputs: 2 (voltage or current selectable)

  • Analog Outputs: 2 (voltage or current selectable)

  • Resolution: 12-bit for both inputs and outputs

  • Input Range: ±10V, 0–10V, 0–20mA, 4–20mA

  • Output Range: 0–10V or 4–20mA

  • Status LEDs for input/output monitoring

  • Compatible with MicroLogix 1100, 1200, 1400

  • Space-saving design for compact panels

Detailed Specifications

  • Part Number: 1762-IF2OF2

  • Operating Voltage: 24V DC

  • Input Impedance: >200 kΩ (voltage), 250 Ω (current)

  • Output Load: ≥1 kΩ for voltage, ≤500 Ω for current

  • Conversion Speed: Approx. 2.5 ms per channel

  • Mounting: DIN rail

  • Operating Temperature: 0°C to 55°C

  • Certifications: UL, CE, cUL, RoHS

  • Enclosure: IP20 (open type)

Common Uses

  • Level and pressure monitoring

  • Analog flow control systems

  • Process automation in compact installations

  • Machine signal conditioning and scaling

  • OEM panel designs needing analog I/O

Why It Stands Out

  • Combines input and output in a single compact unit

  • Flexible signal handling with multiple voltage/current ranges

  • Ideal for expanding analog capacity in MicroLogix PLCs

  • Simplifies wiring and saves panel space

  • Reliable Allen-Bradley build for industrial conditions

Get Yours Today

The Allen-Bradley 1762-IF2OF2 analog I/O module is in stock and ready to ship.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
