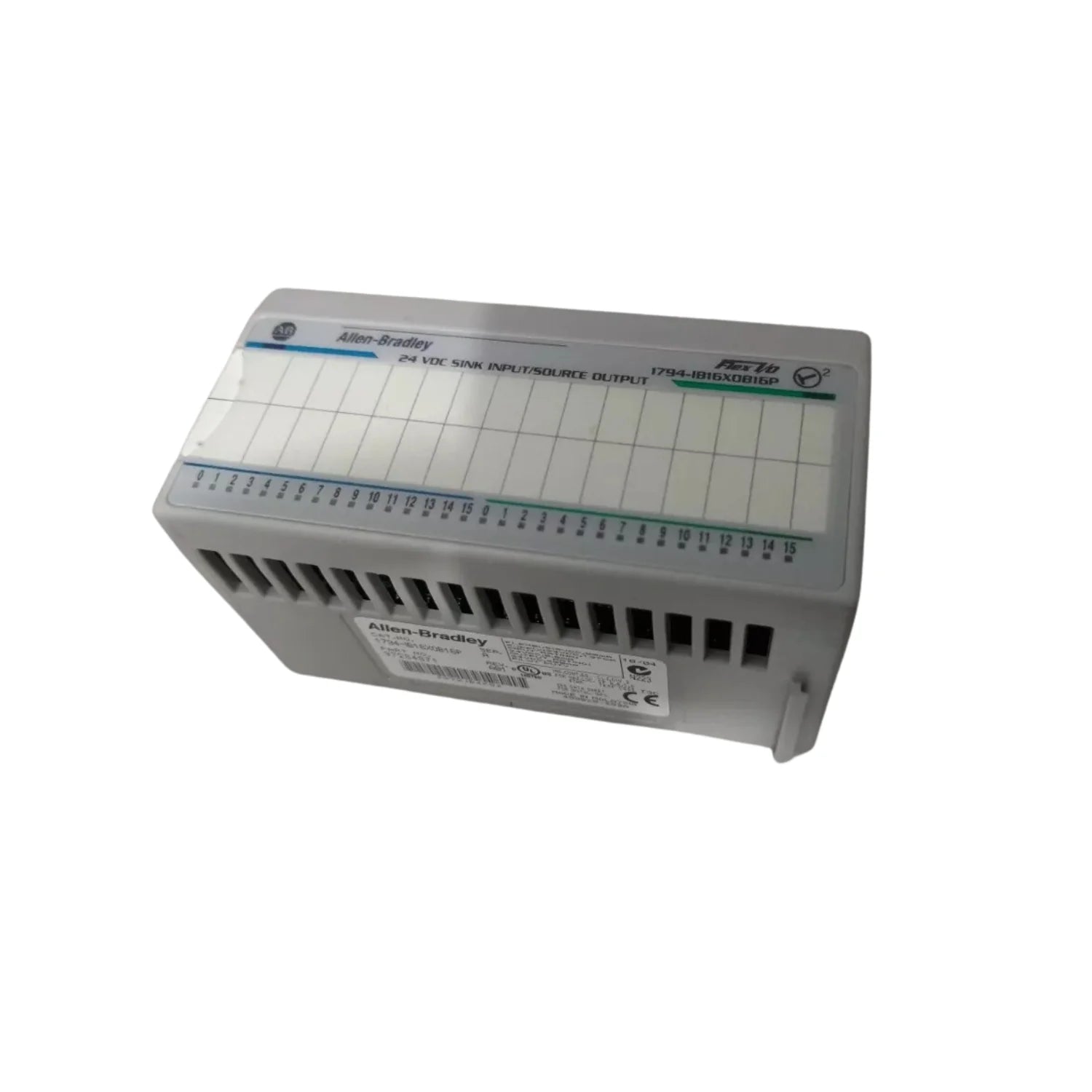

Allen-Bradley 1794-IB16XOB16P

Overview

The Allen-Bradley 1794-IB16XOB16P is a FLEX I/O 32-point digital combination module designed for efficient integration of input and output signals in industrial automation systems. It features 16 sinking (NPN) inputs and 16 sourcing (PNP) outputs, operating at 24V DC. The module's electronic protection ensures reliable performance, and its DIN rail mount facilitates easy installation within control panels.


Key Features

  • Input Channels: 16 sinking (NPN) inputs

  • Output Channels: 16 sourcing (PNP) outputs

  • Operating Voltage: 24V DC

  • Electronic Protection: Yes

  • Mounting: DIN rail

  • Enclosure Rating: IP20 (open-style)

  • Temperature Range: 0°C to 55°C (32°F to 131°F)

  • Certifications: UL, CE, TUV, CCC, UKCA


Technical Specifications

  • Catalog Number: 1794-IB16XOB16P

  • Input Voltage Range: 10–31.2V DC

  • Input Current (Nominal): 8.8 mA @ 24V DC

  • Output Voltage Range: 10–31.2V DC

  • Output Current per Channel: 0.5 A (max)

  • Total Output Current per Module: 8 A (max)

  • Power Dissipation: 7.0 W @ 31.2V DC

  • Flexbus Current: 80 mA

  • Dimensions (H × W × D): 94 mm × 94 mm × 69 mm (3.7 in × 3.7 in × 2.7 in)

  • Weight: Approximately 98 g (3.46 oz)

  • Recommended Terminal Base Units: 1794-TB32, 1794-TB32S


Applications

  • Industrial automation systems

  • Process control environments

  • Machine control panels

  • Distributed I/O systems

  • Manufacturing equipment


Why Choose the 1794-IB16XOB16P

  • High-Density I/O: Combines 16 inputs and 16 outputs in a single module, saving space.

  • Reliable Performance: Electronic protection safeguards against overloads and short circuits.

  • Flexible Integration: Compatible with various FLEX I/O adapters and terminal bases.

  • Ease of Installation: DIN rail mounting and plug-in terminal bases simplify setup.

  • Versatile Use: Suitable for a wide range of industrial applications requiring digital I/O.


Order Now

The Allen-Bradley 1794-IB16XOB16P FLEX I/O digital combination module is available for order.
