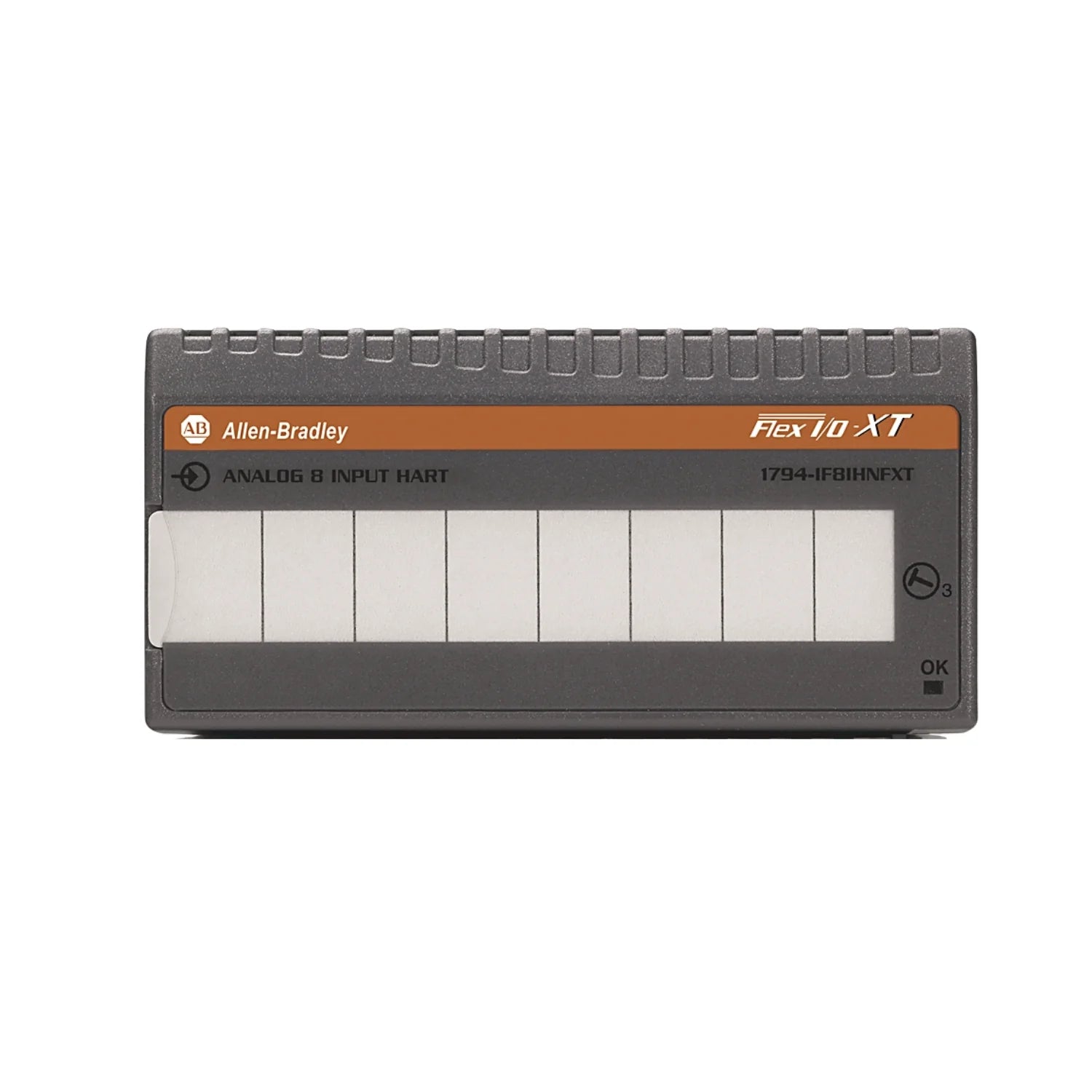

Allen-Bradley 1794-IF8IHNFXT
Overview
The Allen-Bradley 1794-IF8IHNFXT is an 8-channel high-speed analog input module for the FLEX I/O XT series, designed for use in extreme temperature environments and redundant systems. It supports HART communication protocol, allowing for advanced diagnostics and device configuration over the same wiring used for analog signals. With 16-bit resolution, this module ensures precise signal acquisition in demanding applications.
Key Features
-
Platform: FLEX I/O XT
-
Channels: 8 differential analog inputs
-
Input Type: Current (4–20 mA) with HART protocol
-
Resolution: 16-bit
-
Temperature Range: -40°C to +70°C (Extreme Temperature – XT rated)
-
Communication: HART-enabled, supports smart instrument data
-
Redundancy: Compatible with redundant I/O architectures
-
Mounting: DIN rail
-
Conformal Coated: Yes, for harsh environments
Technical Specifications
-
Catalog Number: 1794-IF8IHNFXT
-
Voltage Range: 24V DC nominal
-
Input Signal Range: 4–20 mA
-
Isolation: Channel-to-bus and channel-to-channel
-
Resolution: 16-bit
-
Update Rate: Fast conversion time per channel
-
Current Draw: Approx. 80 mA @ 24V DC
-
Certifications: CE, UL, ATEX (zone rated depending on system)
-
Dimensions: Compact FLEX I/O form factor
-
Enclosure Rating: Open-type device, IP20
Applications
-
Oil & gas processing and pipeline automation
-
High-availability process control systems
-
Smart instrumentation with HART
-
Power generation and chemical plants
-
Extreme temperature or mission-critical environments
Why Choose the 1794-IF8IHNFXT
-
Enables advanced HART diagnostics and communication
-
Supports redundant system design for increased reliability
-
Operates in extreme environments (-40°C to +70°C)
-
Precision 16-bit input resolution for accurate signal monitoring
-
Seamless integration into FLEX I/O architectures
Order Now
The Allen-Bradley 1794-IF8IHNFXT FLEX I/O analog input module is available and ships worldwide.
