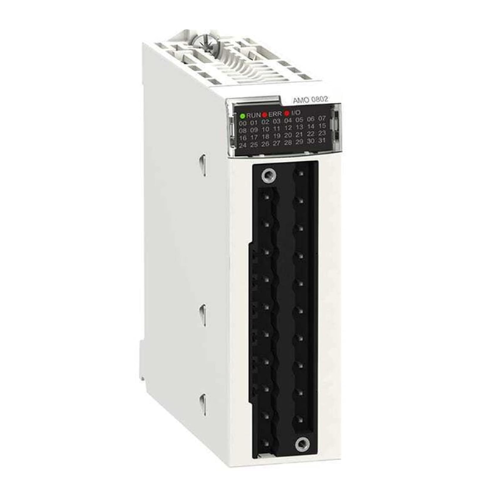

Schneider Electric BMXAMO0802 analog output module with 8 channels for Modicon X80

Schneider Electric BMXAMO0802

SKU: BMXAMO0802
Your Price:
$760.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric BMXAMO0802

Overview

The BMXAMO0802 is an 8-channel analog output module from Schneider Electric’s Modicon X80 series. It provides 0–20 mA or 4–20 mA current outputs with 16-bit resolution for precise industrial control. Ideal for process automation, this module connects directly to the backplane with no external power supply required.

Key Features

  • Output Channels: 8 (0–20 mA or 4–20 mA)

  • Resolution: 16-bit

  • Accuracy: ±0.1% FS @ 25°C; ±0.25% FS from 0 to 60°C

  • Load Resistance: Up to 350 Ohms

  • Conversion Time: ≤ 4 ms per channel

  • LED Indicators: Status LEDs per channel plus RUN/ERR/I/O

  • Mounting: Modicon X80 rack system

Technical Specifications

  • Catalog Number: BMXAMO0802

  • Output Type: Current (non-isolated between channels)

  • Isolation: 1.4 kV DC (channel-to-bus and channel-to-ground)

  • Power Consumption: ~3.6 W @ 24 VDC; ~0.35 W @ 3.3 VDC

  • Operating Temperature: 0°C to 60°C

  • Storage Temperature: -40°C to +85°C

  • Protection Rating: IP20

  • Certifications: CE, UL, CSA, RoHS, EAC

  • Weight: Approx. 0.15 kg

Applications

  • Valve and actuator control

  • Analog signal output for process control

  • Integration with Modicon M340 and M580 systems

  • Distributed I/O for SCADA systems

  • Compact industrial automation panels

Why Choose the BMXAMO0802

  • High-resolution analog output in a compact design

  • Reliable diagnostics with LED status per channel

  • Flexible output configuration (0–20 mA / 4–20 mA)

  • Environmentally friendly Green Premium product

  • Seamless integration with X80 I/O ecosystem

Order Now

The Schneider Electric BMXAMO0802 analog output module is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Schneider Electric BMXAMO0802

Overview

The BMXAMO0802 is an 8-channel analog output module from Schneider Electric’s Modicon X80 series. It provides 0–20 mA or 4–20 mA current outputs with 16-bit resolution for precise industrial control. Ideal for process automation, this module connects directly to the backplane with no external power supply required.

Key Features

  • Output Channels: 8 (0–20 mA or 4–20 mA)

  • Resolution: 16-bit

  • Accuracy: ±0.1% FS @ 25°C; ±0.25% FS from 0 to 60°C

  • Load Resistance: Up to 350 Ohms

  • Conversion Time: ≤ 4 ms per channel

  • LED Indicators: Status LEDs per channel plus RUN/ERR/I/O

  • Mounting: Modicon X80 rack system

Technical Specifications

  • Catalog Number: BMXAMO0802

  • Output Type: Current (non-isolated between channels)

  • Isolation: 1.4 kV DC (channel-to-bus and channel-to-ground)

  • Power Consumption: ~3.6 W @ 24 VDC; ~0.35 W @ 3.3 VDC

  • Operating Temperature: 0°C to 60°C

  • Storage Temperature: -40°C to +85°C

  • Protection Rating: IP20

  • Certifications: CE, UL, CSA, RoHS, EAC

  • Weight: Approx. 0.15 kg

Applications

  • Valve and actuator control

  • Analog signal output for process control

  • Integration with Modicon M340 and M580 systems

  • Distributed I/O for SCADA systems

  • Compact industrial automation panels

Why Choose the BMXAMO0802

  • High-resolution analog output in a compact design

  • Reliable diagnostics with LED status per channel

  • Flexible output configuration (0–20 mA / 4–20 mA)

  • Environmentally friendly Green Premium product

  • Seamless integration with X80 I/O ecosystem

Order Now

The Schneider Electric BMXAMO0802 analog output module is available and ships worldwide.



Condition

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.

Warranty

1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.

Disclaimer

Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
