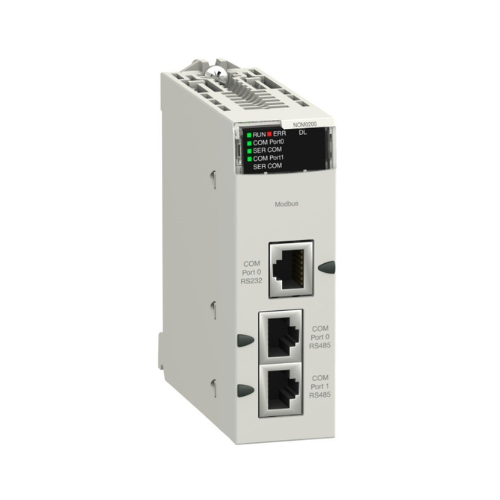

Schneider Electric BMXNOM0200 dual-port serial module for Modicon X80 RS-232 and RS-485

Schneider Electric BMXNOM0200

SKU: BMXNOM0200
Your Price:
$580.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric BMXNOM0200

Overview

The BMXNOM0200 is a dual-port serial communication module designed for the Modicon X80 architecture, supporting both RS-232 and RS-485 interfaces. It allows Modicon M340 and M580 PACs to connect with external serial devices using Modbus RTU or character-based transparent communication. Ideal for legacy system integration and serial-based automation equipment.

Key Features

  • Ports: 2 serial ports (configurable as RS-232 or RS-485)

  • Protocols Supported: Modbus RTU Master/Slave, ASCII, and transparent mode

  • LED Indicators: Status LEDs for module health and port activity

  • Power Supply: 24V DC, drawn from backplane

  • Mounting: Standard slot on Modicon X80 backplane

  • Insulation: Galvanic isolation between channels and bus

Technical Specifications

  • Catalog Number: BMXNOM0200

  • Serial Ports: 2 × RJ45 connectors

  • Baud Rate:

    • RS-232: up to 115.2 kbps

    • RS-485: up to 57.6 kbps

  • Power Consumption: 80 mA @ 24V DC

  • Weight: Approx. 0.23 kg

  • Operating Temperature: 0°C to 60°C

  • Storage Temperature: –40°C to +85°C

  • Humidity: 10% to 95% non-condensing

  • Protection Rating: IP20 (when panel mounted)

  • Certifications: CE, UL, CSA, RoHS compliant

Applications

  • Integration of serial devices like sensors, HMIs, and drives

  • Communication with Modbus RTU/ASCII-based field equipment

  • Legacy system modernization

  • Transparent serial data exchange in industrial automation

  • SCADA and machine-level control systems

Why Choose the BMXNOM0200

  • Flexible Interface: RS-232 and RS-485 support in one module

  • Dual Port Capacity: Simplifies multi-device communication

  • Reliable Integration: Seamless with Modicon M340 and M580 PACs

  • Easy Diagnostics: Clear status LEDs for each port

  • Versatile Protocols: Supports both structured and transparent modes

Order Now

The Schneider Electric BMXNOM0200 serial communication module is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
