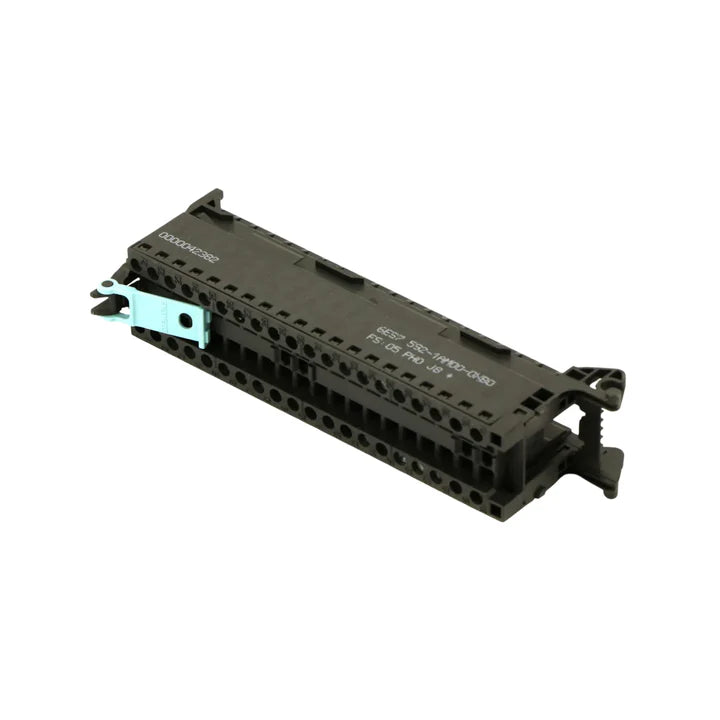

Siemens 6ES7592-1AM00-0XB0 | S7-1500 40-Pin Front Connector (Push-In, Shielded)
Overview
The Siemens 6ES7592-1AM00-0XB0 is a 40-pin front connector with push-in terminals for use with SIMATIC S7-1500 digital and analog I/O modules. This shielded version ensures electromagnetic compatibility (EMC), allowing for safe and reliable signal transmission in industrial control systems.
Key Features
-
Connector Type: 40-pin front connector
-
Wiring Method: Push-in (tool-free) terminals for quick installation
-
Shielded Version: Enhanced EMC for high-interference environments
-
Compatible Series: SIMATIC S7-1500 I/O modules
-
Wire Size Support: 0.14 mm² to 1.5 mm² (solid and stranded with ferrule)
-
Labeling Field: Integrated for easy circuit identification
-
Color: Gray housing with shielded contact cover
-
Reusable: Detachable and rewritable connection block
Technical Specifications
-
Catalog Number: 6ES7592-1AM00-0XB0
-
Product Type: Front connector
-
Mounting Location: Directly plugs into S7-1500 modules
-
Connection Points: 40 terminals
-
Shielding: Yes (with strain relief and cable shield clamp)
-
Protection Class: IP20
-
Operating Temperature: -25°C to +60°C
-
Dimensions (W x H x D): Approx. 60 mm x 100 mm x 30 mm
-
Certifications: CE, RoHS
-
Country of Origin: Germany
Applications
-
Digital and Analog I/O Wiring
-
Modular Control Panel Assembly
-
Industrial PLC Installations
-
Automation Cabinet Integration
-
High-Density Terminal Connections
Why Choose the 6ES7592-1AM00-0XB0?
-
Fast and Secure Wiring: Push-in technology reduces installation time
-
Improved EMC Protection: Shielding prevents signal interference
-
Optimized for S7-1500 Modules: Seamless mechanical and electrical integration
-
Durable and Reusable: Built for long-term industrial use
-
Clear Identification: Integrated label field aids in wiring organization
Order Now
In stock and available for global delivery.
