Allen-Bradley 2198-S160-ERS3
Overview

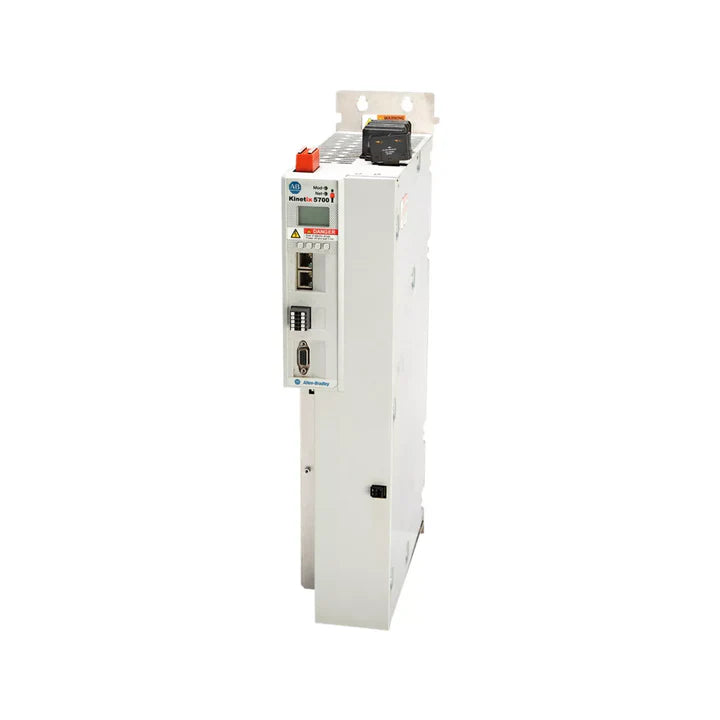

The Allen-Bradley 2198-S160-ERS3 is a high-power single-axis inverter module from the Kinetix 5700 series, offering precise control and high output for demanding motion applications. It delivers up to 85A RMS continuous output current and 60 kW continuous power, with a 458–747V DC input range. The 100mm-wide module integrates smoothly into a Snap-Fit Bus System, reducing panel complexity. The module includes Safe Torque-Off (STO) functionality via hardwired or integrated safety connections.
Key Features
-
Drive Type: Kinetix 5700 inverter module, single-axis
-
Input Voltage: 458–747V DC
-
Output Current: 85A continuous RMS
-
Output Power: 60 kW continuous
-
Module Width: 100 mm
-
Safety Functionality: Safe Torque-Off (STO), integrated and hardwired options
-
Installation System: Snap Fit Bus System
-
Cooling Type: Air cooled
-
Mounting: Panel vertical mount
Technical Specifications
-
Catalog Number: 2198-S160-ERS3
-
Continuous Output Current: 85A (RMS)
-
Peak Current: Application-specific
-
Voltage Class: DC Bus 458–747V
-
Continuous Output Power: 60 kW
-
Module Width: 100 mm
-
Safety Rating: STO (per IEC 61800-5-2)
-
Mounting Method: Snap Fit with backplane bus system
-
Ambient Temp: 0°C to +50°C
-
Certifications: UL, CE, cULus, RoHS, TUV
Applications
-
High-power servo applications
-
Industrial packaging lines
-
Robotics and automation machinery
-
Web handling systems
-
Machine tools with demanding torque loads
Why Choose the 2198-S160-ERS3
-
High Output: Supports large motors with 60kW power
-
Compact & Modular: 100mm-wide Snap-Fit design saves panel space
-
Dual Safety Integration: STO via hardwired or embedded options
-
Flexible Input Range: 458–747V DC for advanced system integration
-
Built for Performance: Delivers speed, power, and safety in one unit
Order Now
The Allen-Bradley 2198-S160-ERS3 servo inverter module is available and ships worldwide.
