B&R 8V1016.001‑2

Overview

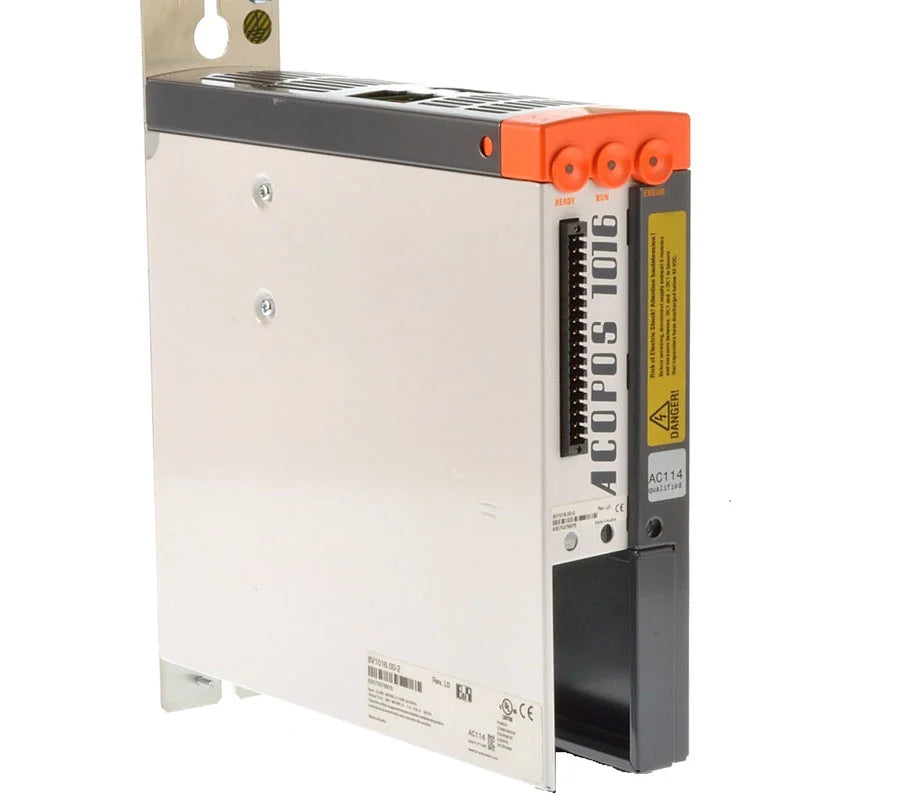

The 8V1016.001‑2 is a 0.7 kW ACOPOS 1016 servo drive built for high-precision automation systems. It operates on three-phase 400–480 V AC and provides a continuous output current of 1.6 A. This unit includes an integrated line filter, brake resistor, and safe restart inhibit, making it ideal for industrial control panels and motion applications.


Key Features

  • Rated Power: 0.7 kW (1 HP)

  • Input Voltage: 400–480 V AC, three-phase (also supports 230 V AC)

  • Continuous Output Current: 1.6 A

  • Peak Current: Approx. 5 A for short durations

  • Integrated Components: Line filter, braking resistor, safe restart inhibit

  • Expansion Slots: Modular interface for CAN, Ethernet, encoder, I/O, CPU

  • Status Indicators: LEDs for READY, RUN, and ERROR


Technical Specifications

  • Catalog Number: 8V1016.001‑2

  • Max Input Load: Up to 2.1 kVA

  • Switching Frequency: 10 kHz nominal (also supports 5 and 20 kHz)

  • DC Bus Capacitance: 165 µF

  • Operating Temperature: 5°C to 40°C (derated up to 55°C)

  • Altitude: Up to 2,000 m (with derating)

  • Dimensions: Approx. 58.5 × 257 × 220 mm

  • Weight: Approx. 2.5 kg

  • Protection Class: IP20 (when installed in proper housing)

  • Certifications: CE, UL/cULus, EAC, KC, functional safety capable


Applications

  • Compact robotic and pick-and-place systems

  • Packaging and small assembly machinery

  • OEM control panels requiring integrated motion control

  • Panel-mounted systems needing efficient cooling and quiet operation

  • Safety-focused automation with restart inhibit functionality


Why Choose the 8V1016.001‑2

  • Integrated Design: Saves space with built-in filter and brake resistor

  • Modular Expansion: Easily configurable for various protocols

  • Compact & Durable: Strong performance in a small, lightweight unit

  • Certified for Industry: Complies with international standards

  • Quick Diagnostics: LED indicators streamline maintenance


Order Now

The B&R 8V1016.001‑2 ACOPOS servo drive is available and ships worldwide.
