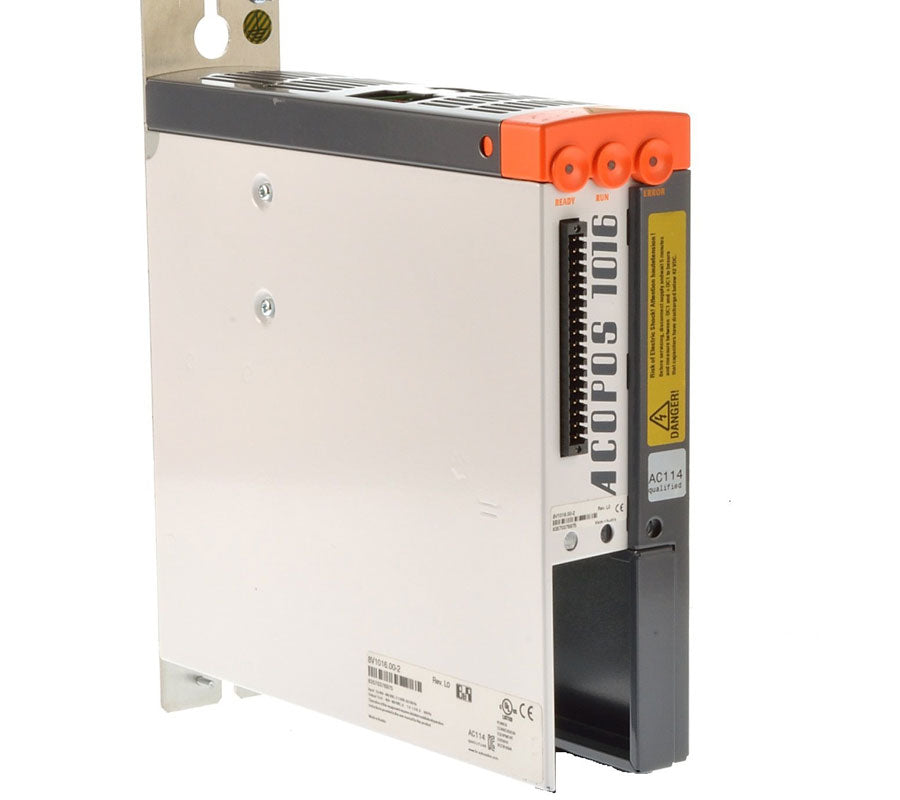

B&R 8V1016.50‑2
Overview
The 8V1016.50‑2 is a 0.7 kW ACOPOS 1016 servo drive designed for precision motion control in compact industrial systems. Powered by three-phase 400–480 V AC, it provides 1.6 A continuous output and features an integrated line filter, brake resistor, safe restart inhibit, and compatibility with B&R safety PLCs, making it suitable for both standard and safety-critical applications.
Key Features
-
Rated Power: 0.7 kW (1 HP)
-
Input Voltage: 400–480 V AC, three-phase (also supports 230 V AC)
-
Continuous Output Current: 1.6 A
-
Peak Output Current: Approx. 5 A short-term
-
Integrated Hardware: Line filter, braking resistor, safe restart inhibit
-
Modular Expansion: Interfaces for CAN, Ethernet, encoder, I/O, CPU, or safety module
-
Safety Support: Integrates with B&R safety PLC for SIL 2/PL d applications
-
LED Status Indicators: READY, RUN, ERROR for quick diagnostics
Technical Specifications
-
Catalog Number: 8V1016.50‑2
-
Max Input Load: Up to 2.1 kVA
-
Switching Frequency: 10 kHz nominal (supports 5/20 kHz)
-
DC Bus Capacitance: 165 µF
-
Operating Temp: 5 °C to 40 °C (derated to 55 °C)
-
Altitude Rating: Up to 2,000 m with derating
-
Dimensions: Approx. 58.5 × 257 × 220 mm
-
Weight: Approx. 2.5 kg
-
Protection Class: IP20 (within compliant chassis)
-
Certifications: CE, UL/cULus, EAC, KC, functional safety certified
Applications
-
Robotics with integrated safety
-
Compact packaging and assembly machines
-
OEM systems requiring motion and safety integration
-
Panel-mounted servo solutions in industrial environments
-
Systems needing safe torque off and reliable fault handling
Why Choose the 8V1016.50‑2
-
Safety-Ready Design: Compatible with safety PLCs and SIL 2/PL d systems
-
Integrated Components: Minimises external hardware needs
-
Modular and Scalable: Expandable architecture for versatile automation setups
-
Compact and Efficient: High performance in a small, lightweight package
-
Easy Maintenance: LED indicators aid in fast diagnostics
Order Now
The B&R 8V1016.50‑2 ACOPOS 1016 servo drive is available and ships worldwide.
