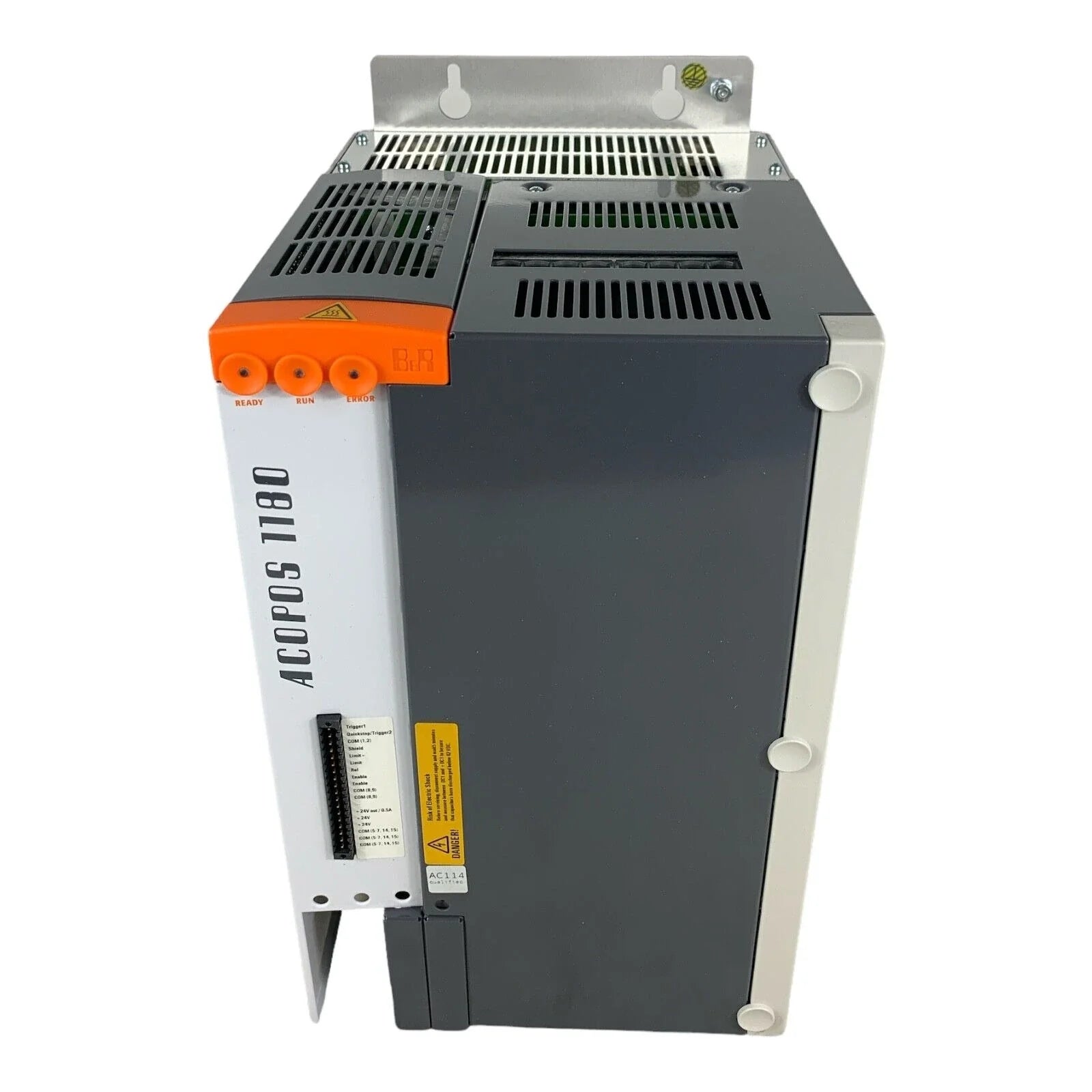

B&R 8V1180.001‑2
Overview
The 8V1180.001‑2 is a 9 kW ACOPOS 1180 servo drive, ideal for high-power industrial motion control. It operates from 400–480 V AC three-phase, delivers 19 A continuous output, and includes an integrated line filter, brake resistor, and safe restart inhibit, all housed in a modular system with four plug-in expansion slots.
Key Features
-
Power Rating: 9 kW (12 HP)
-
Continuous Output Current: 19 A
-
Input Voltage: 400–480 V AC, 3-phase ±10%
-
Peak Current: Up to 50 A
-
Integrated Hardware: Line filter (EN 61800-3), brake resistor, electronic restart inhibit
-
Modular Design: Four slots for CAN, EtherCAT, encoder, I/O modules
-
Diagnostics LEDs: READY, RUN, ERROR indicators
Technical Specifications
-
Model Number: 8V1180.001‑2
-
Installed Input Load: Approx. 17 kVA
-
Switching Frequency: 5 / 10 / 20 kHz selectable
-
DC Bus Capacitance: 940 µF
-
Braking Capability: Internal peak power ~14 kW, continuous ~0.4 kW (external ~8 kW)
-
Protection Class: IP20; Pluggable connectors
-
Operating Temperature: 5 °C to 40 °C (derated to 55 °C)
-
Dimensions: 375 × 200 × 234 mm; Weight: ~10.1 kg
-
Certifications: CE, UL/cULus, EAC, KC, with functional safety support
Applications
-
Heavy-duty robotics and machine tool axes
-
Large packaging lines, conveyors, and processing equipment
-
High-torque servo applications like winding and cutting
-
OEM setups requiring modular fieldbus or encoder kits
-
Safe-restart systems with precise motion control
Why Choose the 8V1180.001‑2
-
High Power Density: Covers up to 9 kW output with tight cabinet footprint
-
All-in-One Integration: Filter and brake resistor reduce panel complexity
-
Modular & Scalable: Four expansion slots adapt to multi-technology needs
-
Robust Diagnostics: LED indicators support fast commissioning and maintenance
-
Safety & Standards: Certified and restart-safe—built for industrial duty
Order Now
The B&R 8V1180.001‑2 ACOPOS 1180 servo drive is available and ships worldwide.
