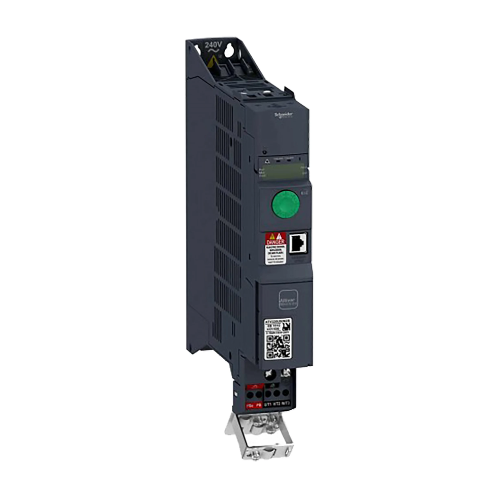

Schneider Electric ATV320U07N4B

SKU: ATV320U07N4B
Your Price:
$360.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV320U07N4B

Overview

The ATV320U07N4B is a 7 HP (5.5 kW) compact variable speed drive from Schneider Electric’s Altivar 320 series. Powered by 380–480 V AC, it offers flexible motor control options—including V/Hz, sensorless vector, and torque modes—along with Safe Torque Off (STO) for machine safety. Suited for industrial systems like pumps, fans, and conveyors, this drive combines compact design with reliable performance.


Key Features

  • Power Rating: 5.5 kW (7 HP)

  • Voltage Input: 380–480 V AC, 50/60 Hz

  • Output Current: Approx. 9.8 A

  • Control Modes: V/Hz, sensorless vector, torque control

  • Integrated Safety: Safe Torque Off (STO)

  • Enclosure: IP20-rated, for panel installation

  • Built-in Communication: Modbus RTU/ASCII

  • Optional Network Cards: Support for Ethernet/IP, Profibus, CANopen


Technical Specifications

  • Catalog Number: ATV320U07N4B

  • Frequency Range: 0.1 Hz to 400 Hz

  • Switching Frequency: Factory default 4 kHz, adjustable up to 12 kHz

  • Ambient Temperature: –10 °C to +50 °C (derating above 40 °C)

  • Storage Temperature: –40 °C to +85 °C

  • Vibration Resistance: 3 gn; Shock Resistance: 15 gn

  • Cooling Method: Natural convection, optional forced-air kit

  • Mounting: Panel or wall mount

  • Dimensions: Approx. 133 × 223 × 142 mm

  • Weight: Approx. 3.5 kg

  • Certifications: CE, UL, CSA, RoHS compliant


Applications

  • HVAC systems: fans, chillers, blowers

  • Pump control in water/wastewater and irrigation

  • Conveyor and material handling equipment

  • OEM machinery and industrial automation

  • Energy-efficient motor control solutions


Why Choose the ATV320U07N4B

  • Compact, powerful drive suitable for small to medium systems

  • Integrated STO enhances machine safety

  • Flexible communication and expansion options

  • Efficient, easy-to-configure operation

  • Durable design built for industrial environments


Order Now

The Schneider Electric ATV320U07N4B compact drive is currently in stock and ships worldwide.
