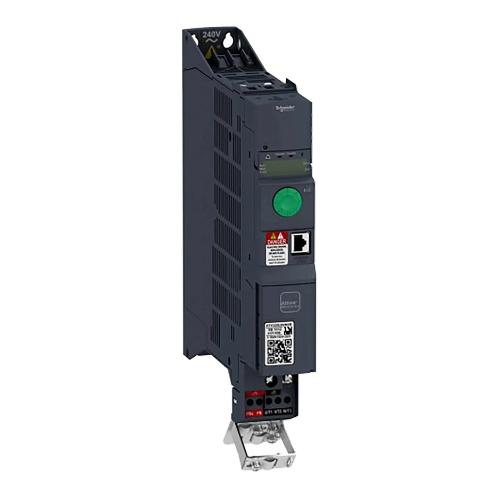

Schneider Electric ATV320U22N4B

Overview

The Schneider Electric ATV320U22N4B is a compact variable frequency drive (VFD) from the Altivar 320 series, engineered for standard and high-performance motor control. Rated at 2.2 kW (3 HP), it supports three-phase 380–500 V input and features a book format design with IP20 protection, making it ideal for tight cabinet installations. It’s suitable for simple machines and complex automation systems alike.


Key Features

  • Power Rating: 2.2 kW / 3 HP

  • Input Voltage: 380–500 V AC, three-phase

  • Output Frequency: 0.1 to 599 Hz

  • Control Modes:

    • V/Hz (voltage/frequency)

    • Sensorless flux vector control

  • Integrated Functions:

    • Safe Torque Off (STO)

    • Modbus and CANopen communication

  • Enclosure Type: IP20 (book format)

  • Integrated EMC Filter: Category C3

  • Display Option: Compatible with remote display/keypad


Technical Specifications

  • Catalog Number: ATV320U22N4B

  • Nominal Output Current: 5.3 A

  • Motor Control Type: Asynchronous and synchronous motors

  • Switching Frequency: 2–16 kHz (derating above 4 kHz)

  • Mounting: Panel or DIN rail (vertical only)

  • Cooling Method: Integrated fan

  • Ambient Temperature Range: -10°C to +50°C (no derating)

  • Dimensions:

    • Width: 73 mm

    • Height: 143 mm

    • Depth: 154.5 mm

  • Weight: Approx. 1.6 kg

  • Certifications: CE, UL, CSA, EAC


Applications

  • Conveyors

  • Pumps and fans

  • Material handling

  • Packaging machinery

  • Simple industrial automation

  • OEM machine integration


Why Choose the ATV320U22N4B

  • Compact Size: Book format saves panel space

  • Flexible Mounting: Easy to install in various orientations

  • Robust Control: Handles both basic and advanced motor applications

  • Integrated Safety: STO function for machine and personnel protection

  • Multi-Network Ready: Built-in Modbus and CANopen communication


Order Now

The Schneider Electric ATV320U22N4B Altivar 320 variable speed drive is available and ships worldwide.
