Schneider Electric LMC402CAA10000 16-axis motion controller, 24 V DC, PacDrive 3, IP20

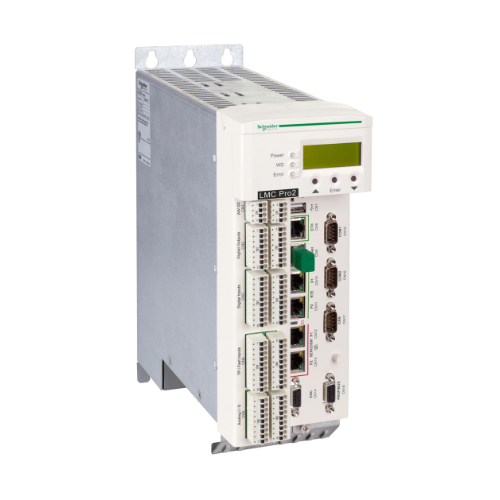

Schneider Electric LMC402CAA10000

SKU: LMC402CAA10000
Your Price:
$8,340.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric LMC402CAA10000

Overview

The Schneider Electric LMC402CAA10000 is a robust and compact motion controller from the PacDrive 3 series, designed to manage up to 16 servo or robot axes. It operates on 24 V DC and is housed in an IP20-rated enclosure, making it ideal for centralized automation and synchronized motion applications in high-performance industrial systems.

Key Features

  • Axis Control: Supports up to 16 synchronized axes

  • Processor Platform: PacDrive 3 architecture

  • Integrated I/O:

    • 20 digital inputs

    • 16 digital outputs

    • 2 analog inputs (±10 V or ±20 mA)

    • 2 analog outputs

    • 4 interrupt inputs

    • 16 touch probe inputs

  • Power Supply: 24 V DC

  • Current Output (Discrete): 250 mA

  • Program Simulation and Diagnostics: Built-in support for offline testing

  • Protection Rating: IP20

  • Mounting: Panel or DIN rail compatible

Technical Specifications

  • Catalog Number: LMC402CAA10000

  • Input Voltage Range: 24 V DC ±20%

  • Power Consumption: Approx. 36 W

  • Dimensions:

    • Width: 100 mm

    • Height: 310 mm

    • Depth: 243 mm

  • Weight: Approx. 3.5 kg

  • Ambient Operating Temperature: 0 °C to +55 °C

  • Storage Temperature: –25 °C to +70 °C

  • Certifications: CE, UL, CSA

Applications

  • Multi-axis robotics and pick-and-place systems

  • Packaging and labeling machinery

  • High-speed material handling equipment

  • Synchronization in industrial production lines

  • OEM machines requiring coordinated motion

Why Choose the LMC402CAA10000

  • Synchronized Motion: Ideal for applications requiring high precision across multiple axes

  • Integrated I/O: Reduces the need for additional modules

  • Flexible Communication: Built to connect with various fieldbus networks

  • Durable and Compact: IP20-rated and space-efficient for control panels

  • Fast Development: Enables simulation and diagnostics without hardware

Order Now

The Schneider Electric LMC402CAA10000 motion controller is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
