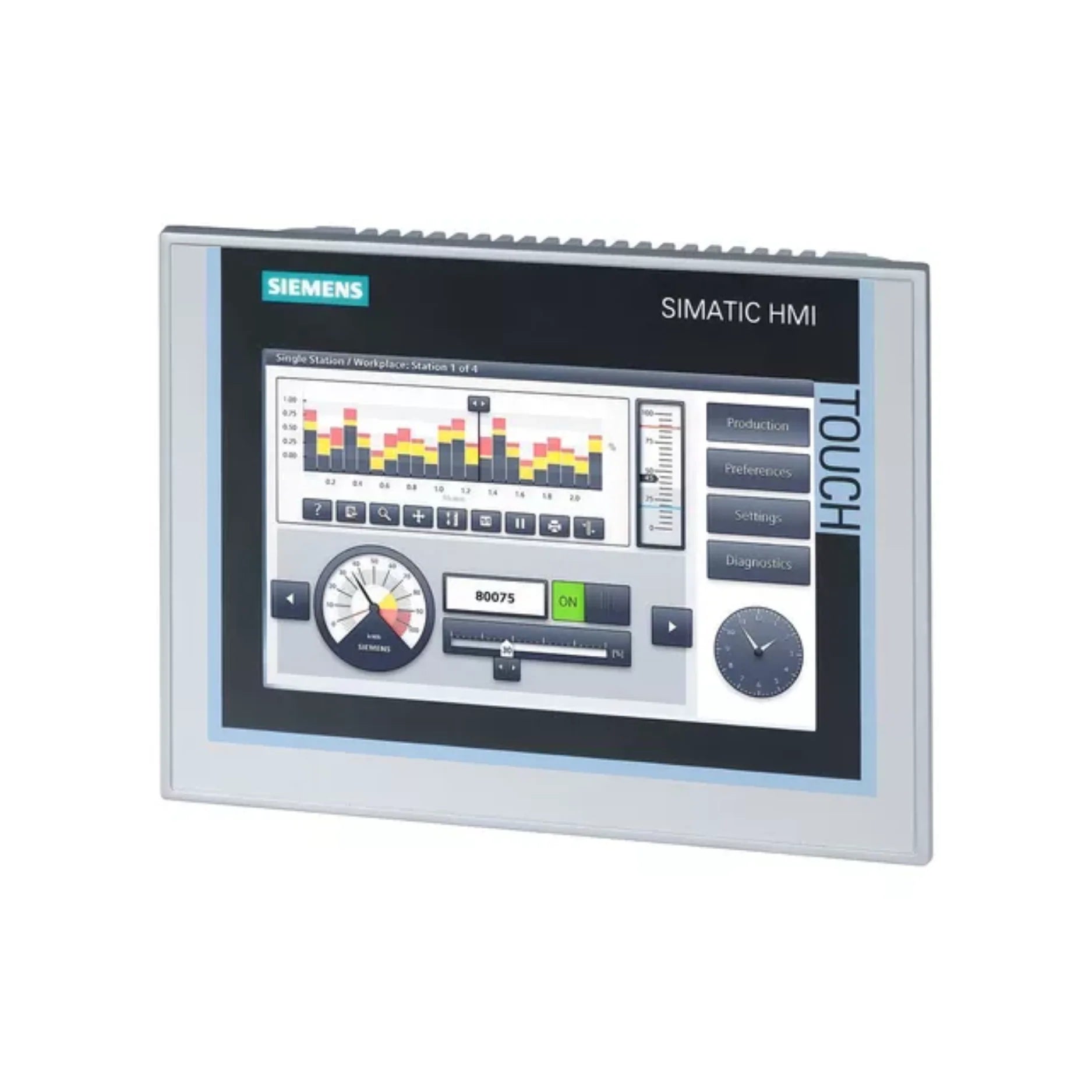

Siemens 6AV2123-2MB03-0AX0 | SIMATIC KTP700 Basic HMI Panel
Overview
The Siemens 6AV2123-2MB03-0AX0 is a KTP700 Basic HMI panel from the SIMATIC HMI Basic series, featuring a 7-inch TFT display, touchscreen and 6 function keys, and integrated PROFINET communication. Designed for cost-effective visualization and operation of machines and equipment, it supports a wide range of applications in compact control systems.
Key Features
-
Display: 7" TFT widescreen, 800 x 480 pixels
-
Input Type: Touchscreen + 6 function keys
-
Backlight: LED, long-life
-
Interface: 1 x PROFINET (Ethernet), 1 x USB 2.0
-
Voltage Supply: 24V DC
-
Memory: 10 MB for user applications
-
Mounting: Panel-mount (flush)
-
Design Life: Approx. 50,000 hours @ 25°C
-
Integrated Recipe, Alarm & Trend Functions
Technical Specifications
-
Catalog Number: 6AV2123-2MB03-0AX0
-
Display Resolution: 800 x 480 pixels
-
Display Colors: 65,536
-
Protection Rating: IP65 (front), IP20 (rear)
-
Power Consumption: <4.8 W
-
Operating Temperature: 0°C to +50°C
-
Dimensions (W x H x D): Approx. 214 mm x 158 mm x 38 mm
-
Cutout Dimensions: 189 mm x 144 mm
-
Weight: Approx. 0.9 kg
-
Configuration Software: TIA Portal (WinCC Basic V13 or higher)
-
Certifications: CE, UL, cULus, RoHS, EAC
Applications
-
Machine Operation Panels
-
Packaging and Conveyor Systems
-
HVAC Equipment Interfaces
-
OEM Machines & Small Control Systems
-
General-Purpose Industrial Visualization
Why Choose the 6AV2123-2MB03-0AX0?
-
Dual Input Mode: Combines touch and key operation for flexibility
-
High-Resolution Display: Clear 7” widescreen for intuitive UI
-
Cost-Effective: Entry-level HMI with strong performance
-
TIA Portal Compatible: Seamless integration with Siemens automation systems
-
Durable Design: Robust panel for demanding environments
Order Now
Available and ready to ship globally.
