Allen-Bradley 5069-OF8

SKU: 5069-OF8
Your Price:
$1,490.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

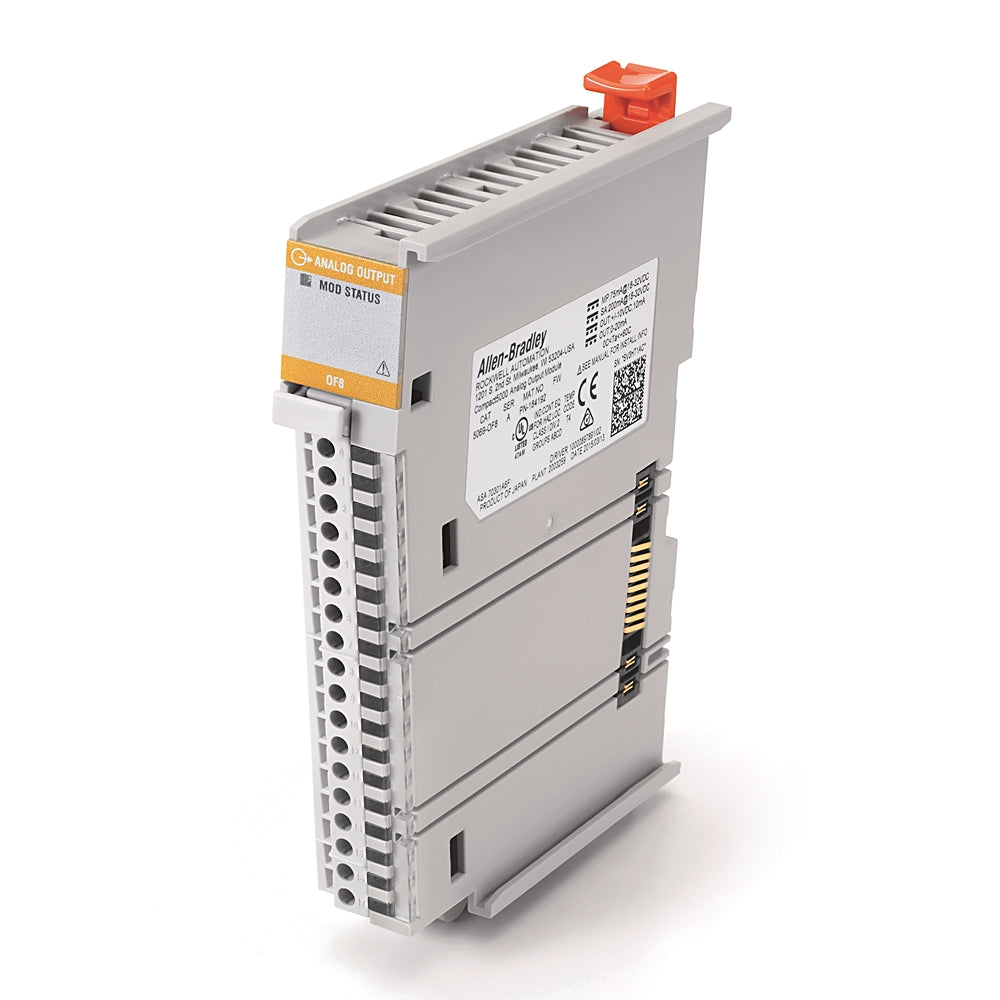

Allen-Bradley 5069-OF8 | 8-Channel Analog Output Module for Compact 5000 I/O Systems

Overview

The Allen-Bradley 5069-OF8 is an 8-channel analog output module designed for the Compact 5000 I/O platform. It provides high-resolution analog outputs, configurable per channel for either voltage or current signals. This module is ideal for applications requiring precise analog control, such as process automation and machine control systems.

Key Features

  • Channels: 8 analog outputs

  • Output Types: Configurable per channel for voltage or current

  • Voltage Ranges: ±10V, 0–10V, 0–5V

  • Current Ranges: 0–20 mA, 4–20 mA

  • Resolution: 16-bit signed

  • Conversion Time: 25 µs per channel

  • Step Response Time:

    • Voltage mode: 18 µs

    • Current mode: 1 ms

  • Data Format: IEEE 32-bit floating point

  • Diagnostics:

    • Open circuit detection (current mode)

    • Short circuit detection (voltage mode)

  • Mounting: DIN rail

  • Enclosure: Open-style (IP20)

  • Certifications: UL, CE, RoHS

Technical Specifications

  • Catalog Number: 5069-OF8

  • Power Supply:

    • MOD Power: 75 mA @ 18–32V DC

    • SA Power: 250 mA @ 18–32V DC

  • Operating Temperature: 0 to 60 °C (32 to 140 °F)

  • Storage Temperature: -40 to 85 °C (-40 to 185 °F)

  • Relative Humidity: 5% to 95% non-condensing

  • Dimensions (H x W x D): 144.57 x 22 x 105.42 mm

  • Weight: Approx. 0.3 kg

Applications

  • Process Control Systems

  • Machine Automation

  • Analog Signal Control

  • Industrial Automation Systems

Why Choose the 5069-OF8?

  • High Precision: 16-bit resolution ensures accurate analog signal control

  • Flexibility: Configurable per channel for voltage or current outputs

  • Fast Response: Quick conversion and step response times for dynamic applications

  • Diagnostics: Built-in diagnostics for enhanced system reliability

  • Integration: Seamless integration with Compact 5000 I/O systems

Order Now

Available and ready to ship globally.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
