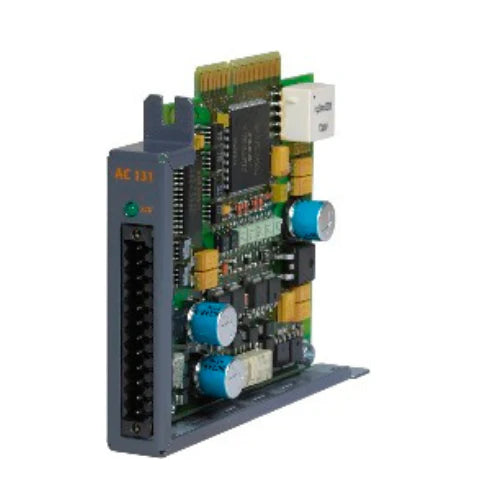

B&R 8AC131.60‑1 resolver interface module with Hall signal support, 15‑pin D‑Sub, ACOPOS slot 1

B&R 8AC131.60-1

SKU: 8AC131.60-1
Your Price:
$1,468.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

B&R 8AC131.60‑1

Overview

The B&R 8AC131.60‑1 is a resolver interface module with Hall sensor input capability, specifically designed for use in slot 1 of ACOPOS servo drives. It enables precise position feedback using analog resolvers along with digital Hall signals, making it suitable for demanding motion control tasks in harsh industrial environments. The module features a 15‑pin D‑Sub connector and supplies regulated 5 V power for encoder devices.

Key Features

  • Resolver Interface: Analog resolver with Hall sensor support

  • Slot Type: Slot 1 plug-in module for ACOPOS drives

  • Connector: 15‑pin female D‑Sub

  • Encoder Power Output: 5 V DC / 250 mA

  • LED Indicators for signal and status diagnostics

  • Enhanced rotor position accuracy

  • Compact, rugged design for industrial use

Technical Specifications

  • Catalog Number: 8AC131.60‑1

  • Supply Voltage: Via ACOPOS backplane

  • Encoder Supply: 5 V ±5%, max. 250 mA

  • Signal Interface: Resolver + Hall signals

  • Operating Temperature: 5 °C to 40 °C (up to 55 °C with derating)

  • Storage Temperature: –25 °C to +55 °C

  • Protection Class: IP20 (when installed)

  • Dimensions: Approx. 6.4 × 4.9 × 7.6 cm

  • Weight: Approx. 0.08 kg

  • Relative Humidity: 5% to 85%, non-condensing

Applications

  • Motor feedback with resolver + Hall signal support

  • Robotics, CNC machines, and automated assembly lines

  • Harsh industrial settings requiring rugged encoder systems

  • Precision drive systems in packaging or material handling

  • Retrofit solutions for ACOPOS-based automation

Why Choose the 8AC131.60‑1

  • Combines analog resolver and Hall feedback in one module

  • Seamless slot 1 integration with ACOPOS drives

  • Delivers stable 5 V encoder power supply

  • Built-in diagnostics for fast troubleshooting

  • Ideal for robust and high-accuracy motion systems

Order Now

The B&R 8AC131.60‑1 resolver interface module with Hall sensor support is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
