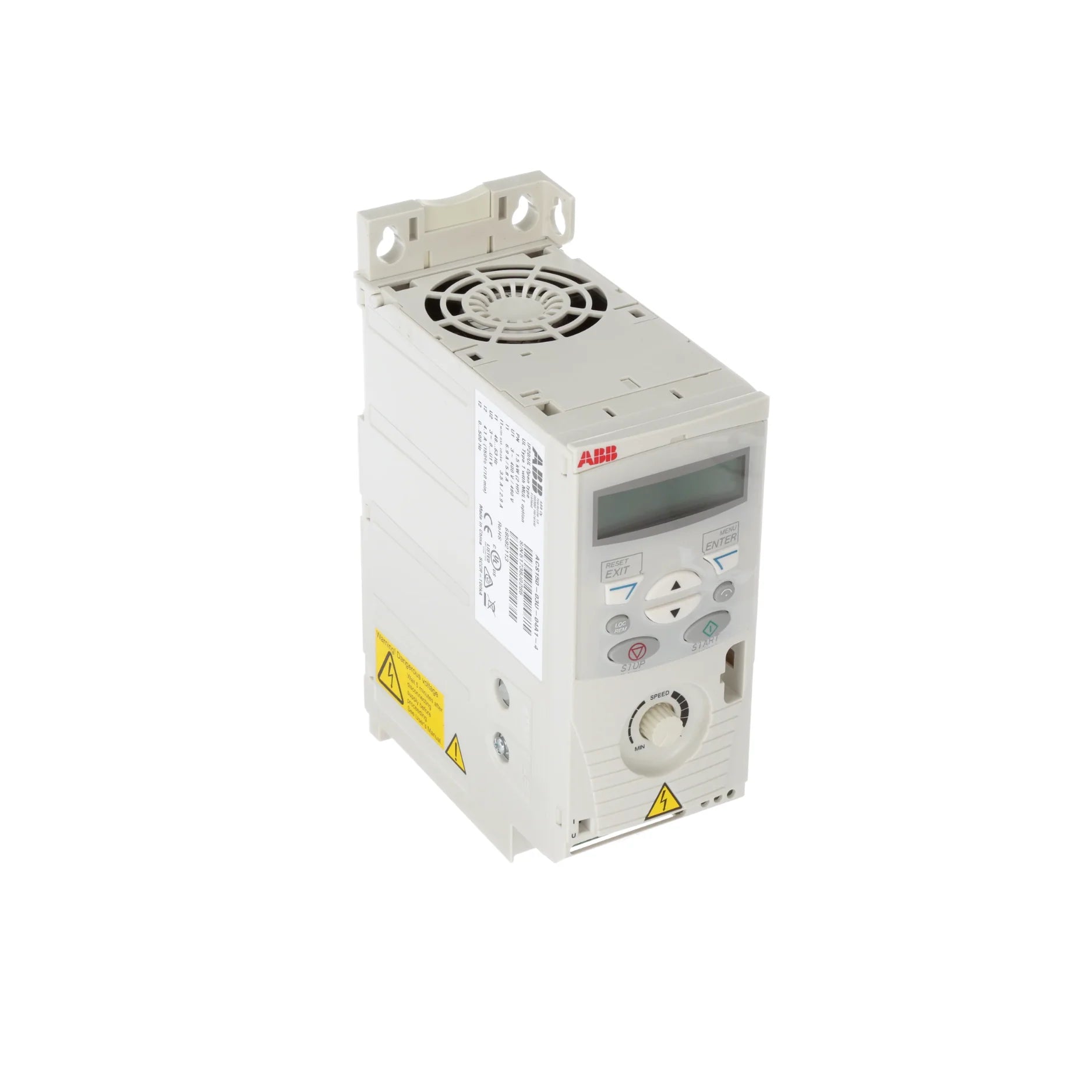

ABB ACS150-03U-04A1-4 | Compact 3-Phase AC Drive for Basic Motor Control
Overview
The ABB ACS150-03U-04A1-4 is a compact and efficient AC drive designed for controlling small motors in 3-phase applications. With a power rating of 0.75 kW (1 HP) and operating at 380–480V, it provides scalar (V/Hz) control, built-in EMC filtering, and a potentiometer for manual speed adjustments. Ideal for light-duty industrial applications and OEMs requiring simple control and installation flexibility.
Key Features
-
Power Output: 0.75 kW / 1 HP
-
Input Voltage: 380–480V AC, 3-phase
-
Output Current: 4.1 A
-
Control Method: Scalar (V/Hz)
-
Protection Rating: IP20
-
Built-in EMC Filter: Class C2
-
Integrated Potentiometer: Manual speed control
-
Keypad: Fixed keypad with direction control
-
Mounting: DIN rail or panel
-
Dimensions (H x W x D): 203 x 142 x 170 mm
-
Weight: Approx. 1.6 kg
Technical Specifications
-
Catalog Number: ACS150-03U-04A1-4
-
Frequency Range: 0–500 Hz
-
Switching Frequency: 4 kHz (adjustable)
-
Overload Capability: 150% for 1 minute
-
Ambient Temperature: -10°C to +40°C (with derating above 40°C)
-
Built-in Functions: PID control, diagnostics
-
Certifications: IEC/EN 61800-3, IEC/EN 61800-5-1
-
Country of Origin: Finland
Applications
-
Small Fans and Pumps
-
Conveyors
-
Light-duty HVAC Systems
-
OEM Machines
-
Basic Industrial Automation
Why Choose the ABB ACS150-03U-04A1-4?
-
Cost-Effective: Ideal for budget-friendly motor control
-
Compact Design: Space-saving with DIN rail installation
-
Versatile Control: Built-in potentiometer for manual speed adjustments
-
Reliable: Engineered for consistent, long-term performance
-
Integrated EMC Filter: Reduces electrical interference in sensitive systems
Order Now
Contact us for pricing, availability, and technical support.
