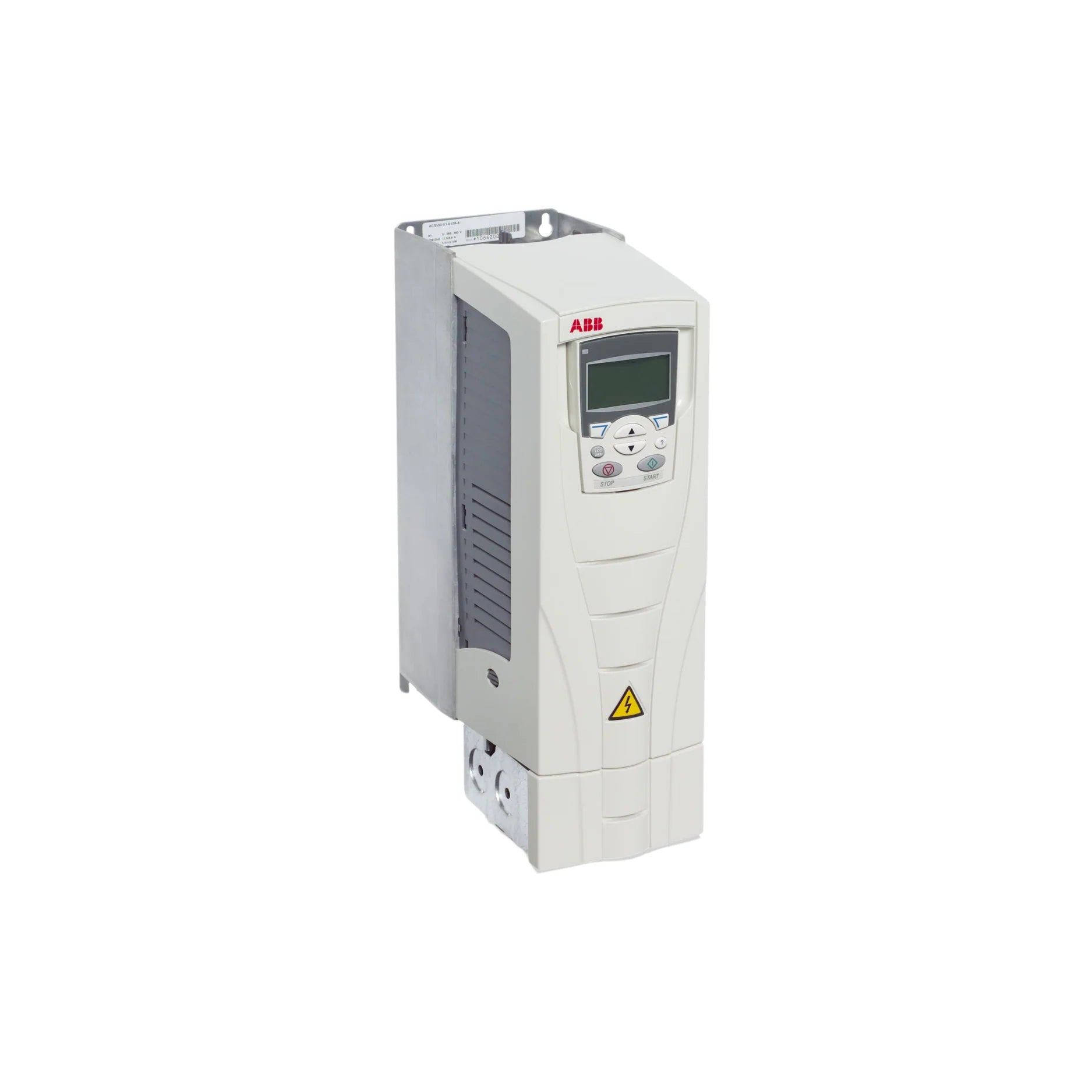

ABB ACS550-01-03A3-4 | Compact AC Drive for Low-Power Applications
Overview
The ABB ACS550-01-03A3-4 is a compact and efficient AC drive designed for 1 HP motors in light-duty applications. Operating on a 380–480V 3-phase power supply, it delivers reliable performance with vector control and includes a built-in EMC filter. Its IP21 enclosure is ideal for panel installations.
Key Features
-
Power Output: 1 HP (0.75 kW)
-
Input Voltage: 380–480V AC, 3-phase
-
Output Current: 3.3 A
-
Control Type: Scalar (V/Hz) and vector control
-
Enclosure: IP21 (UL Type 1)
-
EMC Filter: Integrated C2 class
-
Interface: Integrated keypad with display
-
Mounting: Wall-mounted
-
Frame Size: R1
-
Dimensions (H x W x D): 305 x 125 x 195 mm
-
Weight: Approx. 3.4 kg
Technical Specifications
-
Catalog Number: ACS550-01-03A3-4
-
Frequency Range: 0–500 Hz
-
Switching Frequency: Adjustable up to 16 kHz
-
Overload Capacity: 110% for 1 minute every 10 minutes
-
Operating Temperature: -10°C to +40°C without derating
-
Preset Macros: For fans, pumps, and conveyors
-
Certifications: CE, UL, cUL, RoHS, IEC/EN 61800-3
-
Country of Origin: Finland
Applications
-
Small Fans and Pumps
-
Low-Power Conveyors
-
Compact HVAC Equipment
-
OEM Machinery
-
Basic Motor Control Systems
Why Choose the ABB ACS550-01-03A3-4?
-
Compact Size: Saves space in control panels
-
Built-In Features: EMC filter and keypad included
-
Flexible Operation: Dual-mode control (scalar & vector)
-
Reliable Performance: ABB quality and durability
-
Energy Efficiency: Reduces operational power usage
Order Now
In stock and available for immediate delivery.
