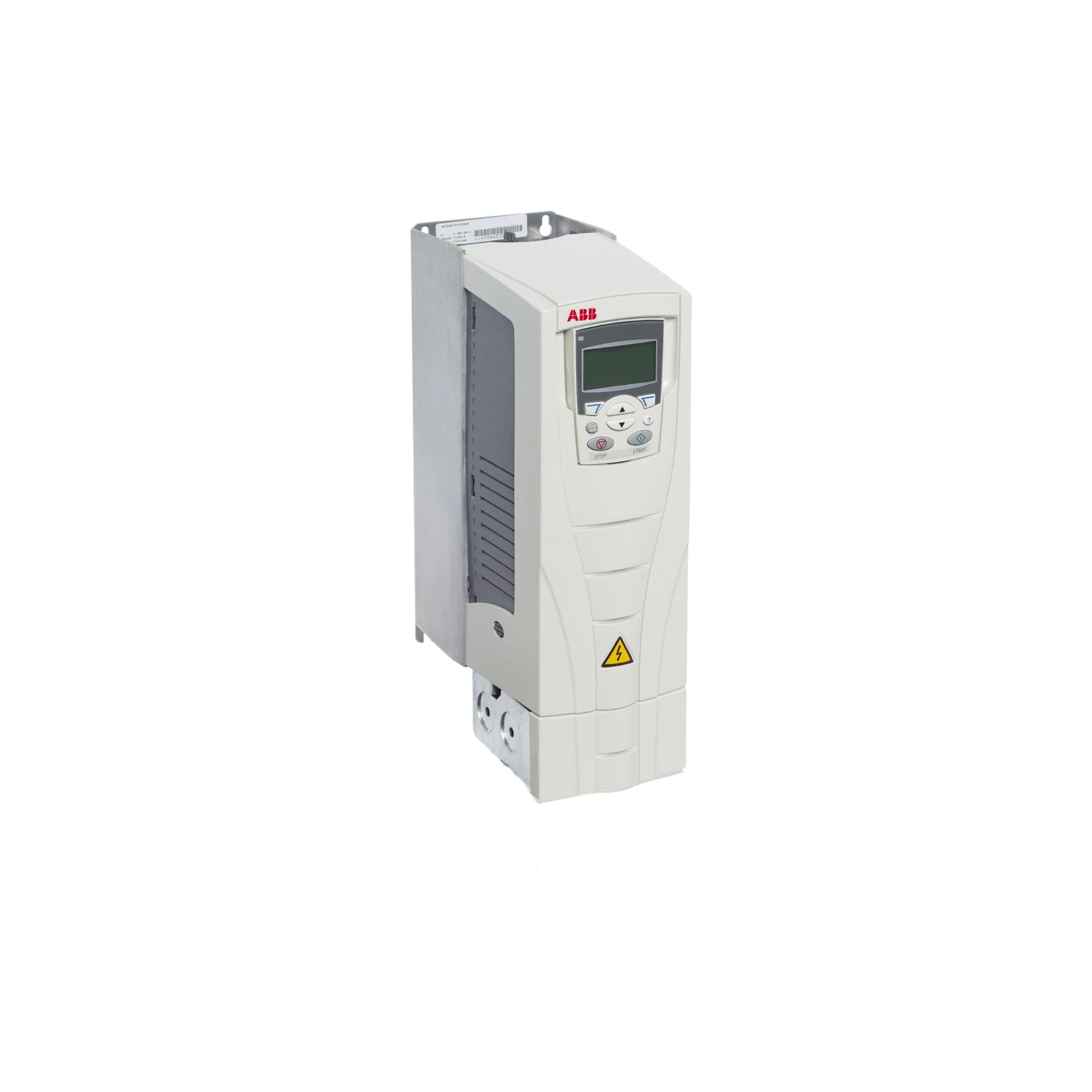

ABB ACS550-01-04A1-4 | Compact AC Drive for Light-Duty Applications
Overview
The ABB ACS550-01-04A1-4 is a reliable and efficient AC drive engineered for light-duty industrial and HVAC applications. It supports 1.5 HP motors with a 380–480V three-phase input and provides robust vector control with a built-in EMC filter. Its compact IP21 enclosure allows for easy wall mounting.
Key Features
-
Power Output: 1.5 HP (1.1 kW)
-
Input Voltage: 380–480V AC, 3-phase
-
Output Current: 4.1 A
-
Control Type: Scalar (V/Hz) and vector control
-
Enclosure: IP21 (UL Type 1)
-
EMC Filter: Integrated C2 class
-
Interface: Built-in keypad with display
-
Mounting: Wall-mounted
-
Frame Size: R1
-
Dimensions (H x W x D): 305 x 125 x 195 mm
-
Weight: Approx. 3.4 kg
Technical Specifications
-
Catalog Number: ACS550-01-04A1-4
-
Frequency Range: 0–500 Hz
-
Switching Frequency: Up to 16 kHz (adjustable)
-
Overload Capacity: 110% for 1 minute every 10 minutes
-
Operating Temperature: -10°C to +40°C (no derating)
-
Predefined Macros: Pump, fan, and conveyor configurations
-
Compliance: CE, UL, cUL, RoHS, IEC/EN 61800-3
-
Country of Origin: Finland
Applications
-
Small Fans and Blowers
-
Compact Conveyors
-
OEM Equipment
-
Light HVAC Systems
-
Low-Demand Motor Control
Why Choose the ABB ACS550-01-04A1-4?
-
Space-Efficient: Slim IP21 housing fits tight panels
-
Smart Control: Vector and V/Hz options for flexibility
-
Easy Setup: Integrated keypad and preset macros
-
Energy-Saving: Lowers operational costs
-
Durable Performance: Trusted ABB engineering and build
Order Now
Available for fast shipping.
