ABB TU830V1 extended termination unit for S800 I/O systems, featuring 16 channels and DIN rail mounting.

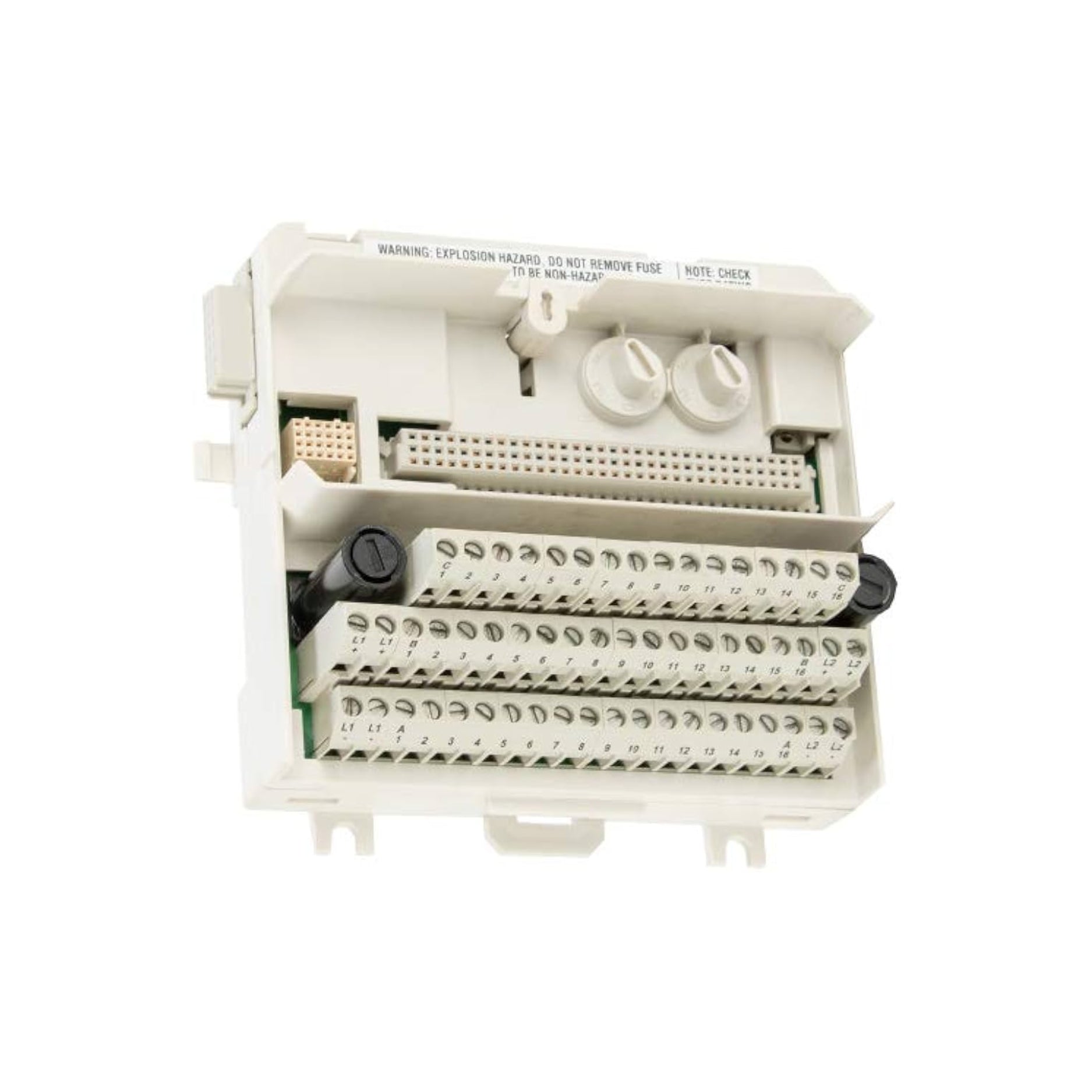

ABB TU830V1 3BSE013234R1

SKU: TU830V1
Your Price:
$212.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

ABB TU830V1 | 16-Channel Extended Termination Unit for S800 I/O

Overview

The ABB TU830V1 is a passive termination unit designed for the S800 I/O system. It facilitates the connection of field wiring to I/O modules, supporting up to 16 channels and two process voltage connections. Each channel includes two I/O connections and one ZP connection. The unit distributes the ModuleBus to the I/O module and to the next MTU, generating the correct address by shifting the outgoing position signals.

Key Features

  • Channels: 16 I/O channels

  • Voltage: 50 V

  • Mounting: DIN rail, compatible in both directions

  • Connection Type: Terminal block

  • Process Voltage Connections: Two individually isolated groups, each with a 6.3 A fuse

  • Mechanical Keying: Prevents insertion of incorrect I/O modules

  • Latching Device: Ensures secure DIN rail grounding

  • Compatibility: Supports a wide range of S800 I/O modules

Technical Specifications

  • Article Number: 3BSE013234R1

  • Maximum Current per I/O Channel: 2 A

  • Maximum Current for Process Connection: 5 A

  • Acceptable Wire Sizes:

    • Solid: 0.2 - 4 mm²

    • Stranded: 0.2 - 2.5 mm² (24 - 12 AWG)

  • Recommended Torque: 0.5 - 0.6 Nm

  • Stripping Length: 7 mm

  • Dielectric Test Voltage: 500 V AC

  • Process Connections: 56

  • Protection Class: IP20 (IEC 60529)

  • Operating Temperature Range: 0 to +55 °C

  • Storage Temperature Range: -40 to +70 °C

  • Relative Humidity: 5 to 95%, non-condensing

  • Pollution Degree: 2 (IEC 60664-1)

  • Corrosion Protection: ISA-S71.04: G3

  • EMC Compliance: EN 61000-6-4, EN 61000-6-2

  • Electrical Safety Standards: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201

  • Hazardous Location Certification: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2

  • Marine Certifications: ABS, BV, DNV-GL, LR

  • RoHS Compliance: EN 50581:2012

  • WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

  • Width: 126 mm (installed edge to edge: 120.5 mm)

  • Depth: 64 mm (including terminals)

  • Height: 110 mm

  • Weight: 0.28 kg

Compatible I/O Modules

  • Analog Input Modules: AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845

  • Analog Output Modules: AO810, AO810V2, AO815, AO820, AO845, AO845A

  • Digital Input Modules: DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885

  • Digital Output Modules: DO810, DO814, DO815, DO818, DO840, DO880

  • Pulse Modules: DP820, DP840

Applications

  • Industrial automation systems

  • Process control environments

  • Distributed control systems (DCS)

  • Integration with ABB's S800 I/O modules

Why Choose the ABB TU830V1?

  • Versatility: Supports a wide range of I/O modules for various applications

  • Reliability: Designed for robust performance in industrial settings

  • Ease of Installation: DIN rail mounting and terminal block connections simplify setup

  • Safety: Compliance with international safety and EMC standards

  • Space Efficiency: Compact design optimizes panel space usage

Order Now

Global delivery available.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
