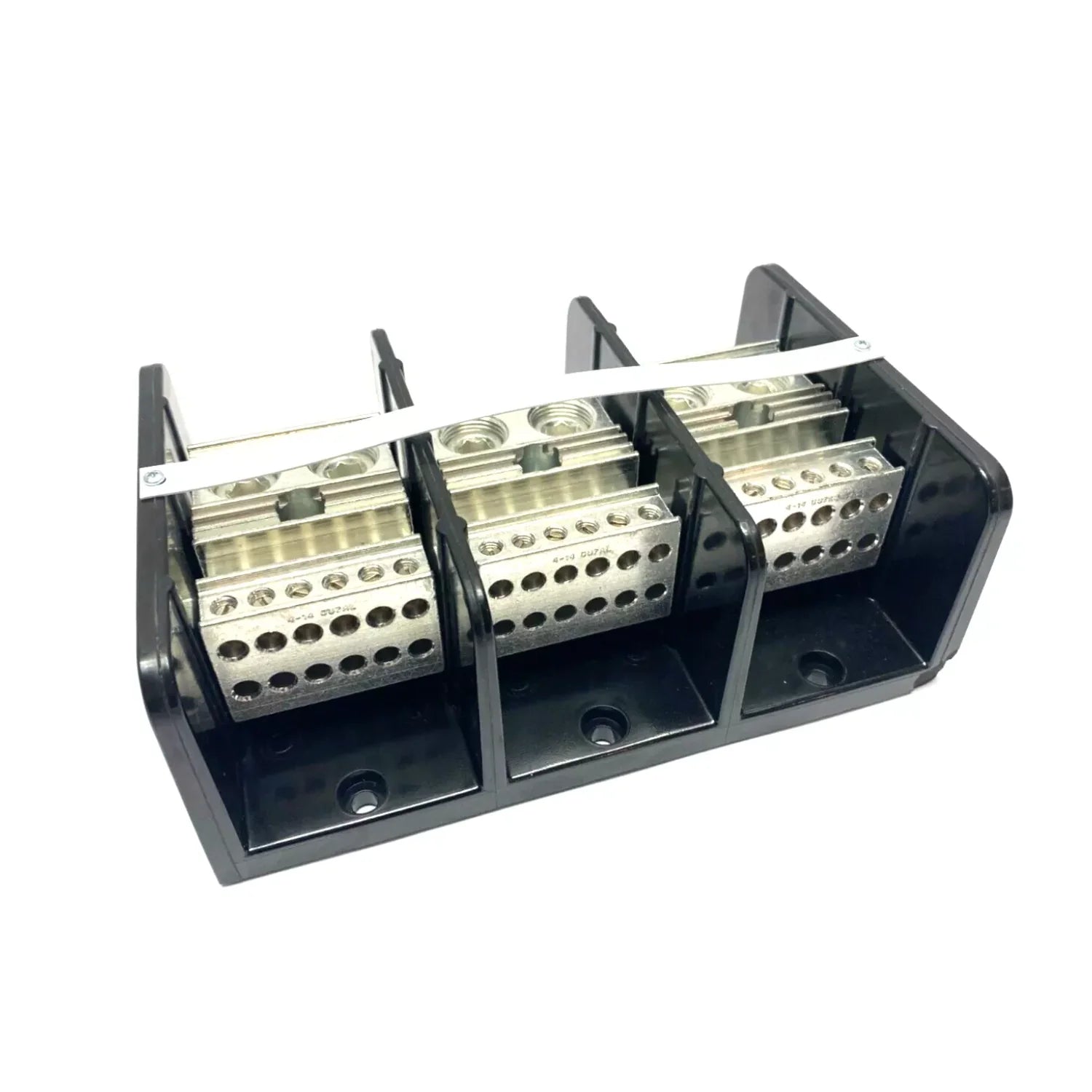

Allen-Bradley 1492-PD32127

Overview

The Allen-Bradley 1492-PD32127 is a high-capacity 3-pole power distribution block designed for efficient and reliable power distribution in industrial applications. With a 760A current rating and 600V AC/DC voltage rating, this block features aluminum connectors and provides multiple line and load terminations, ensuring flexibility and ease of installation.


Key Features

  • Current Rating: 760 Amps per pole

  • Voltage Rating: 600V AC/DC

  • Poles: 3

  • Connector Material: High-conductivity tin-plated aluminum

  • Line Side Openings per Pole: 2

  • Load Side Openings per Pole: 12

  • Wire Range (Line Side): 500 kcmil – #6 AWG copper

  • Wire Range (Load Side): #2 – #14 AWG copper

  • Mounting: Panel mount with 1/4" (M6) fasteners

  • Certifications: UL Recognized (UL 1059), CSA Certified (C22.2 No. 158), CE Compliant (IEC 60947-7-1), RoHS Compliant


Technical Specifications

  • Catalog Number: 1492-PD32127

  • Base Block Type: Power Distribution Block

  • Insulator Base Material: Phenolic

  • Flammability Rating: UL 94 V-0

  • Operating Temperature Range: -35°C to +125°C

  • Maximum Insulator Base Temperature: 150°C

  • Short Circuit Current Rating (SCCR): Up to 100 kA with appropriate fusing

  • Dimensions (H x W x D): 15.189 cm x 10.998 cm x 31.09 cm

  • Weight: 1.828 kg


Applications

  • Industrial control panels

  • Motor control centers (MCCs)

  • Power distribution systems

  • OEM machinery

  • HVAC systems


Why Choose the 1492-PD32127

  • High Current Capacity: Supports up to 760A per pole, suitable for heavy-duty applications.

  • Versatile Wiring Options: Accommodates a wide range of wire sizes for both line and load sides.

  • Robust Construction: Durable phenolic base with high flammability resistance and wide operating temperature range.

  • Compliance with Global Standards: UL, CSA, CE, and RoHS certifications ensure suitability for international applications.

  • Ease of Installation: Panel mount design with clear marking strips for circuit identification.


Order Now

The Allen-Bradley 1492-PD32127 power distribution block is available for immediate shipment worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
