high-speed counter module, 2-channel, 1 MHz input, SLC 500 compatible, TTL signal support.

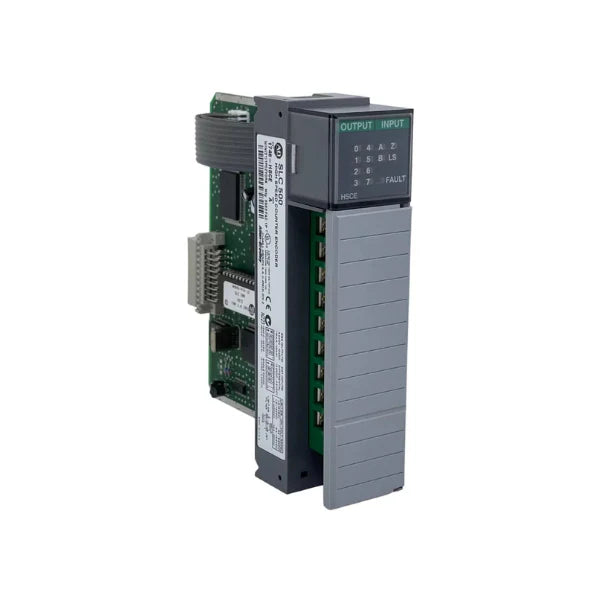

Allen-Bradley 1746-HSCE

SKU: 1746-HSCE
Your Price:
$276.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1746-HSCE | 2-Channel High-Speed Counter Module | SLC 500 | 1 MHz Input | TTL-Compatible | Position & Motion Feedback

Overview

The Allen-Bradley 1746-HSCE is a high-speed counter module designed for use with the SLC 500 platform, providing precise pulse and quadrature counting at speeds up to 1 MHz. With two independent input channels, it supports various encoder types and counting modes for applications requiring accurate motion control, positioning, and velocity tracking.

Key Features

  • Channels: 2 high-speed counter inputs

  • Max Input Frequency: 1 MHz per channel

  • Counting Modes: Quadrature, up/down, pulse/direction

  • Input Type: TTL-compatible (5V DC)

  • Resolution: 16-bit counter

  • Outputs: 4 programmable outputs for real-time control

  • Backplane Powered: No external power required

  • Configuration Software: RSLogix 500

  • Mounting: Single-slot SLC 500 chassis

Technical Specifications

  • Catalog Number: 1746-HSCE

  • Voltage Range: 5V DC TTL signals

  • Input Isolation: 500V (field to backplane)

  • Backplane Current Draw: 500 mA @ 5V DC

  • Output Voltage: TTL (5V)

  • Dimensions: Standard SLC module size

  • Operating Temperature: 0°C to +60°C

  • Certifications: UL, CE, CSA

Applications

  • Positioning with incremental encoders

  • Motion and speed feedback in conveyor systems

  • Cut-to-length systems

  • Packaging and labeling machinery

  • Synchronization in multi-axis automation

Why Choose the 1746-HSCE?

  • High-speed, real-time counting up to 1 MHz

  • Supports a wide range of encoder types

  • Seamless integration with SLC 500 systems

  • Ideal for precision motion control applications

  • Field-tested for reliability in industrial environments

Order Now

The Allen-Bradley 1746-HSCE module is in stock and ready to ship worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Allen-Bradley 1746-HSCE | 2-Channel High-Speed Counter Module | SLC 500 | 1 MHz Input | TTL-Compatible | Position & Motion Feedback

Overview

The Allen-Bradley 1746-HSCE is a high-speed counter module designed for use with the SLC 500 platform, providing precise pulse and quadrature counting at speeds up to 1 MHz. With two independent input channels, it supports various encoder types and counting modes for applications requiring accurate motion control, positioning, and velocity tracking.

Key Features

  • Channels: 2 high-speed counter inputs

  • Max Input Frequency: 1 MHz per channel

  • Counting Modes: Quadrature, up/down, pulse/direction

  • Input Type: TTL-compatible (5V DC)

  • Resolution: 16-bit counter

  • Outputs: 4 programmable outputs for real-time control

  • Backplane Powered: No external power required

  • Configuration Software: RSLogix 500

  • Mounting: Single-slot SLC 500 chassis

Technical Specifications

  • Catalog Number: 1746-HSCE

  • Voltage Range: 5V DC TTL signals

  • Input Isolation: 500V (field to backplane)

  • Backplane Current Draw: 500 mA @ 5V DC

  • Output Voltage: TTL (5V)

  • Dimensions: Standard SLC module size

  • Operating Temperature: 0°C to +60°C

  • Certifications: UL, CE, CSA

Applications

  • Positioning with incremental encoders

  • Motion and speed feedback in conveyor systems

  • Cut-to-length systems

  • Packaging and labeling machinery

  • Synchronization in multi-axis automation

Why Choose the 1746-HSCE?

  • High-speed, real-time counting up to 1 MHz

  • Supports a wide range of encoder types

  • Seamless integration with SLC 500 systems

  • Ideal for precision motion control applications

  • Field-tested for reliability in industrial environments

Order Now

The Allen-Bradley 1746-HSCE module is in stock and ready to ship worldwide.

Condition

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.

Warranty

1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.

Disclaimer

Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
